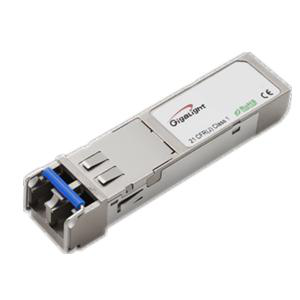

GCB-3403-L2x(D)
The CSFP transceivers are high-performance, cost-effective modules supporting 155Mbps and 20km transmission distance with SMF.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Centre Wavelength (nm) Transmitter | 1260-1310-1360 |
| Spectral Width (RMS) (nm) | 4 |
| Average Output Power (dBm) | -14 to -8 |
| Extinction Ratio (dB) | 9 |
| Optical Rise/Fall Time (20%-80%) (ns) | 0.26 |
| Data Input Swing Differential (mV) | 400-1800 |
| Input Differential Impedance (Ω) | 100 |
| TX Disable (V) | 2.0 (Disable), 0.8 (Enable) |
| TX Fault (V) | 0 (Normal), 0.8 (Fault) |
| Centre Wavelength (nm) Receiver | 1470-1510 |
| Receiver Sensitivity (dBm) | -32 |
| Receiver Overload (dBm) | -3 |
| LOS De-Assert (dBm) | -32 |
| LOS Assert (dBm) | -45 |
| LOS Hysteresis (dB) | 1-4 |
| Data Output Swing Differential (mV) | 400-1800 |
| LOS High (V) | 2.0 |
| LOS Low (V) | 0.8 |
| Operating Case Temperature (Commercial) (°C) | 0 to +70 |
| Operating Case Temperature (Industrial) (°C) | -40 to +85 |
| Power Supply Voltage (V) | 3.13-3.3-3.47 |
| Power Supply Current (mA) | 400 |
| Data Rate (Mbps) | 155 |
| Storage Temperature (°C) | -40 to +85 |
| Operating Humidity (%) | 5-85 |
