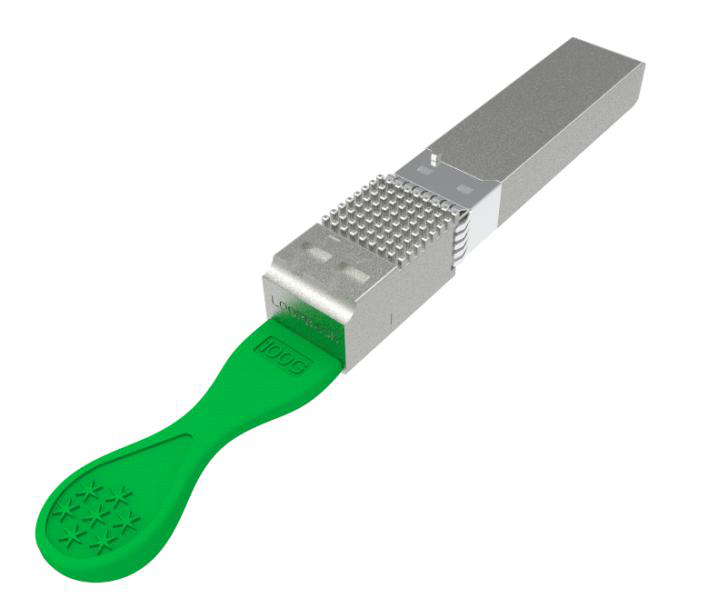

100G SFP56-DD Active Electrical Loopback Module

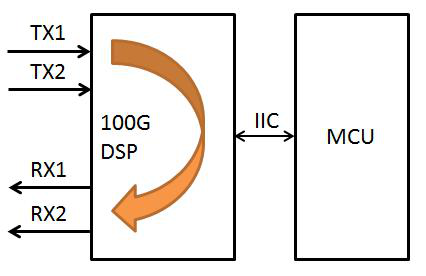

The GSD-SP0101-LP SFP56-DD active electrical loopback module is designed for testing 100G SFP56-DD transceiver ports at the board level. It provides a cost-effective and low-loss method for port testing by substituting a full-featured transceiver. The module is compatible with all SFP56-DD ports and routes transmit data internally to the receive data outputs, offering an economical solution for R&D validation, production testing, and field testing.
Save to Favorites

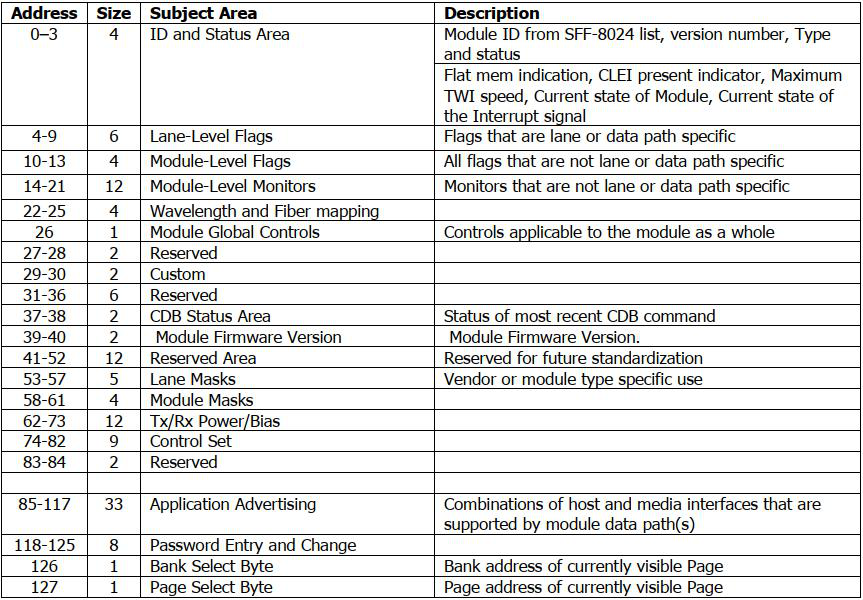

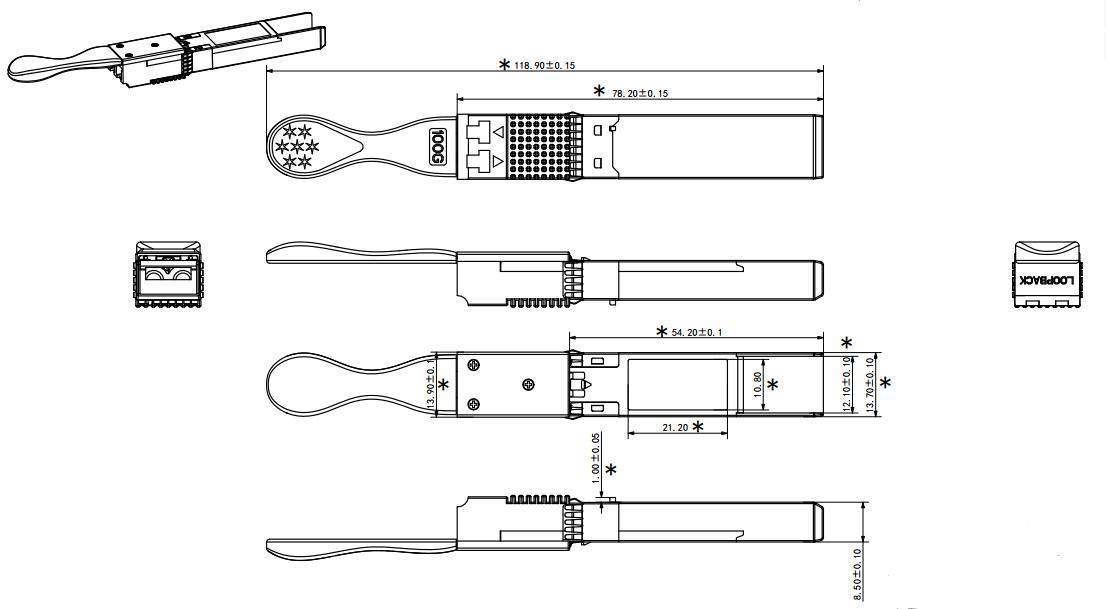

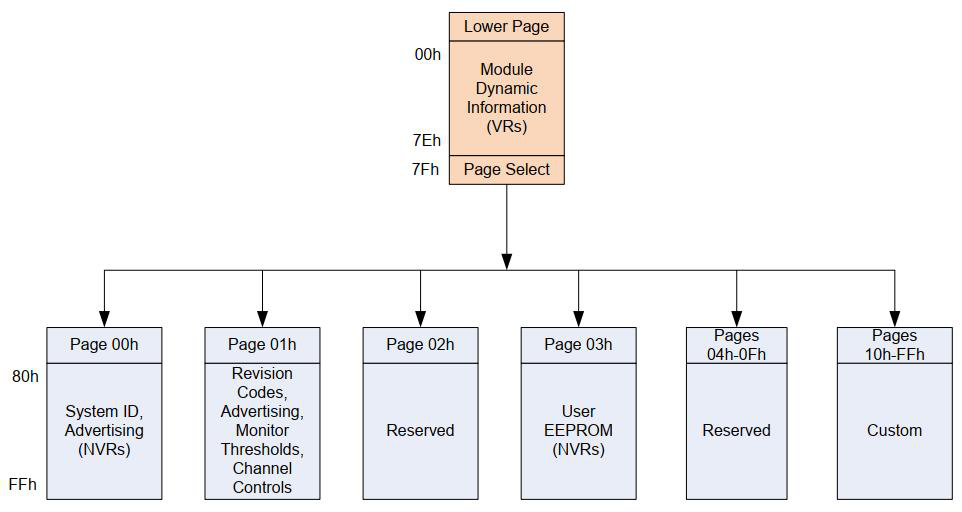

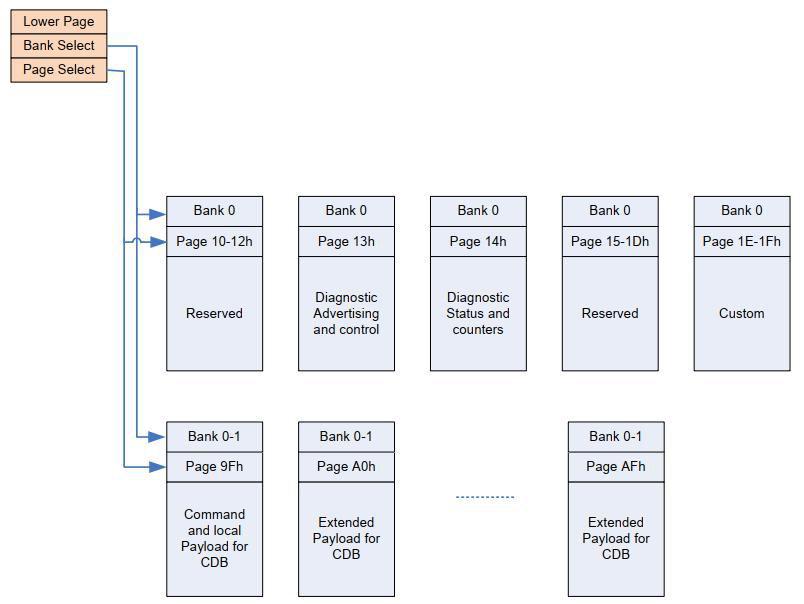

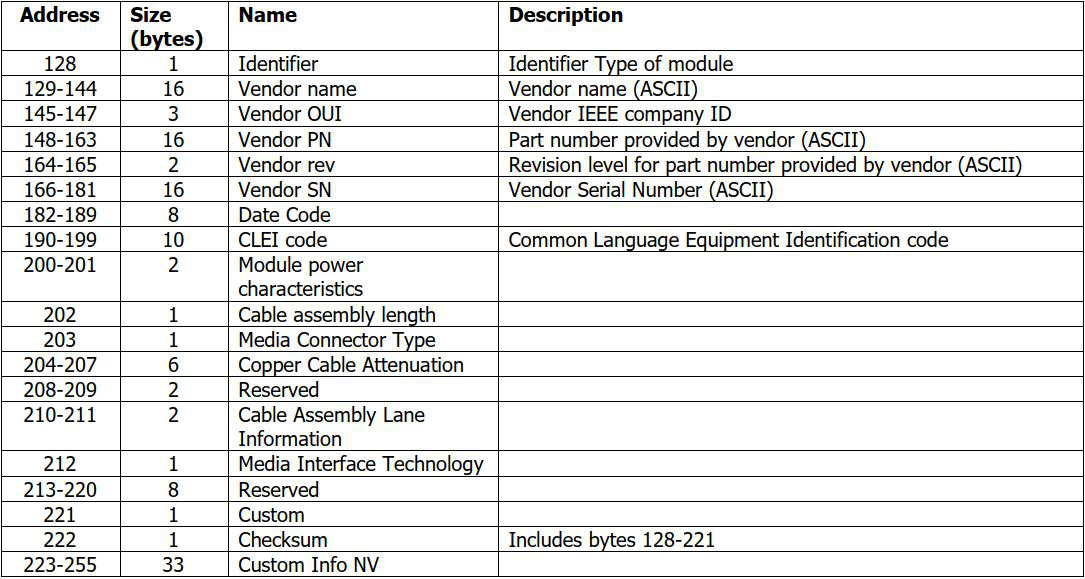

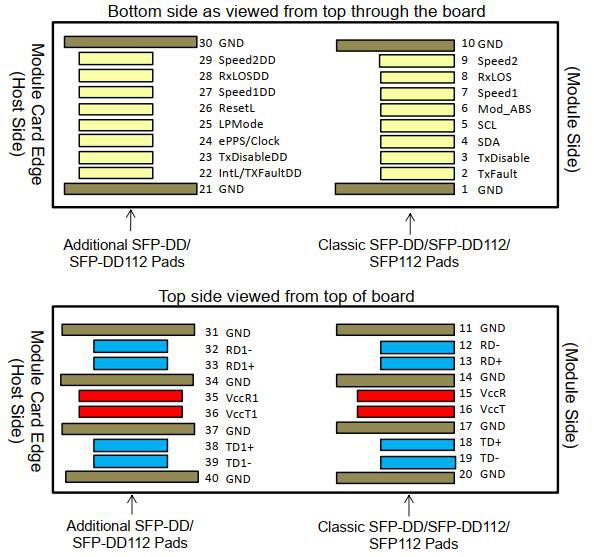

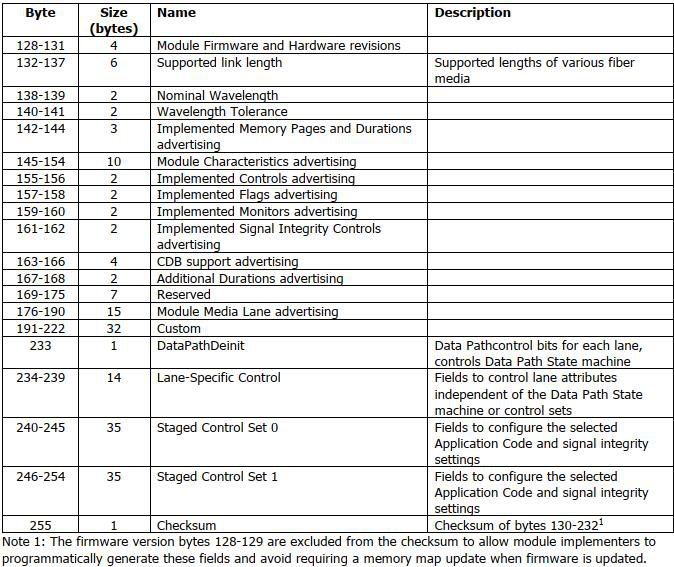

Overview

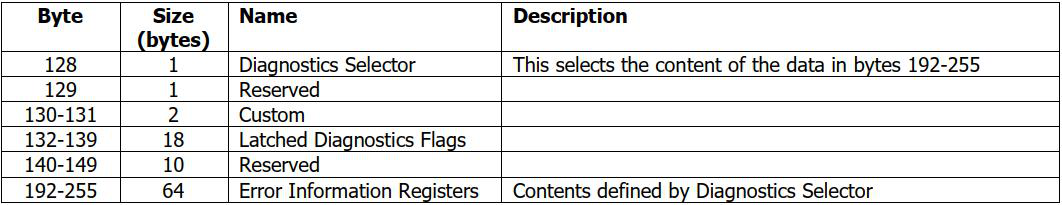

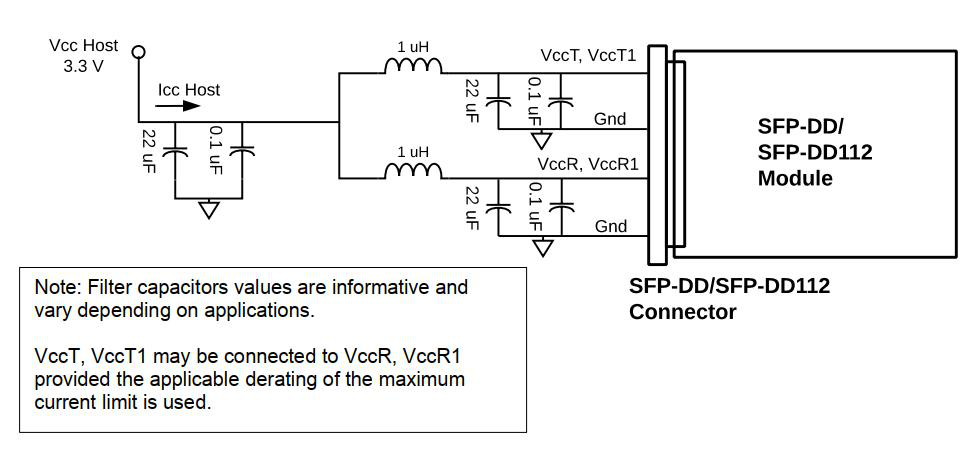

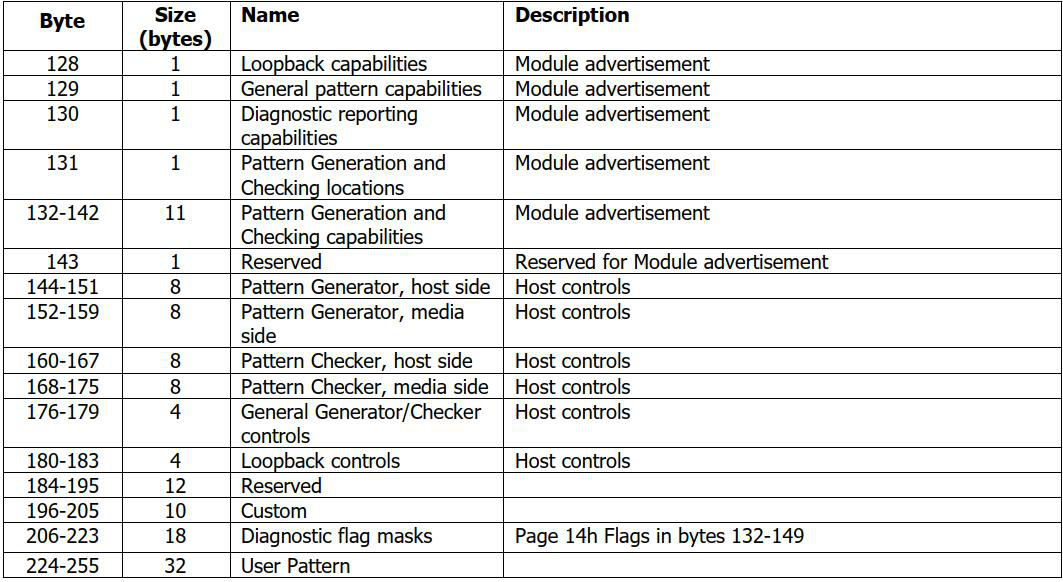

Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Input Voltage | 0-3.6V |
| Storage Temperature | -40-85°C |
| Case Operating Temperature | 0-70°C |
| Humidity (non-condensing) | 5-95% |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 300-1100mVpp |
| Differential Output Voltage Amplitude | 300-900mVpp |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0-VccV |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5-VccV |
| Output Logic Level Low | 0-0.4V |
| Power Dissipation | <2W |
