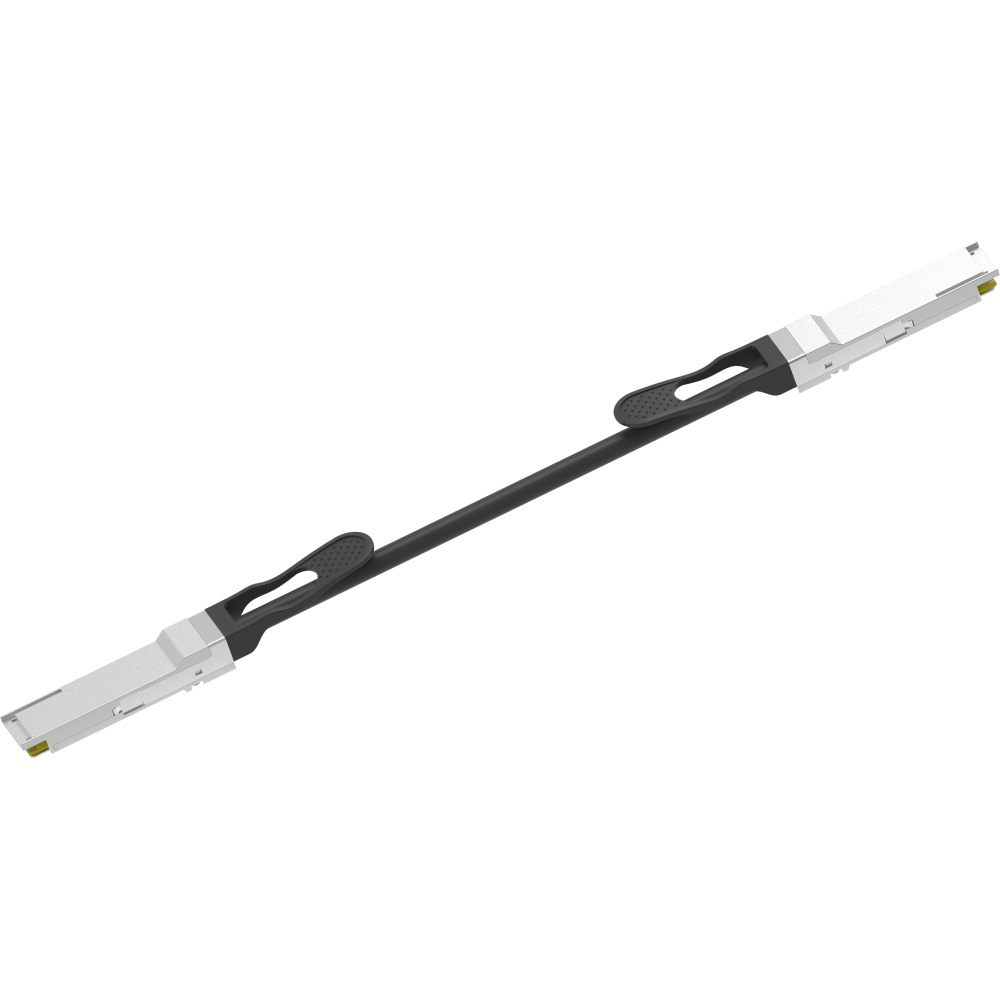

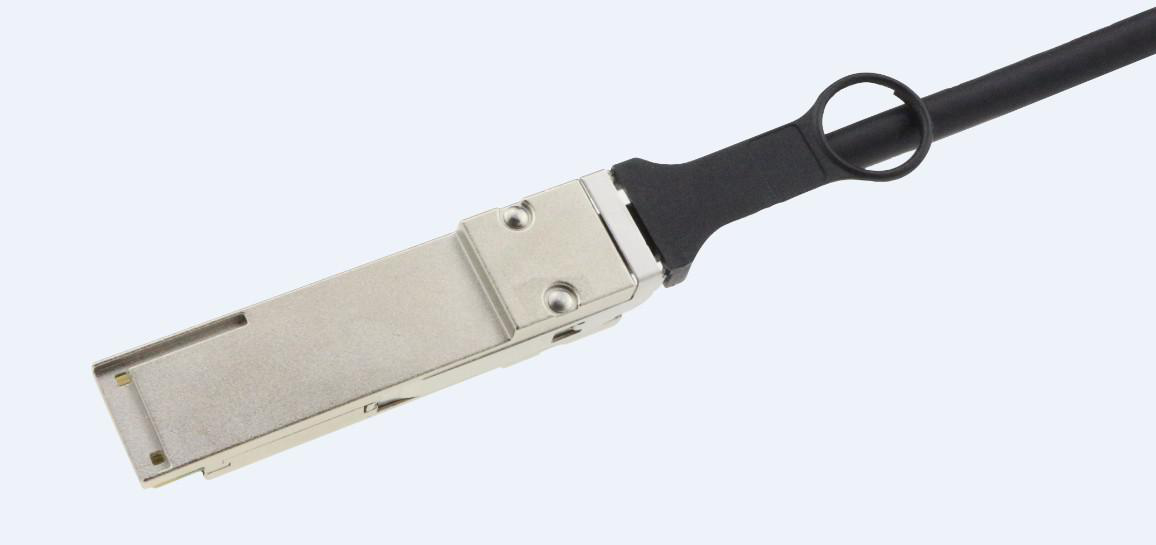

100GE QSFP28 Direct Attach Cable
The 100GE QSFP28 cable assemblies are high-performance, cost-effective I/O solutions for LAN, HPC, and SAN applications. These cables meet and exceed 100 Gigabit Ethernet, InfiniBand EDR, and temperature requirements for performance and reliability. They are compliant with SFF-8436 specifications and provide connectivity between devices using QSFP ports.
Save to Favorites
Overview
Specifications

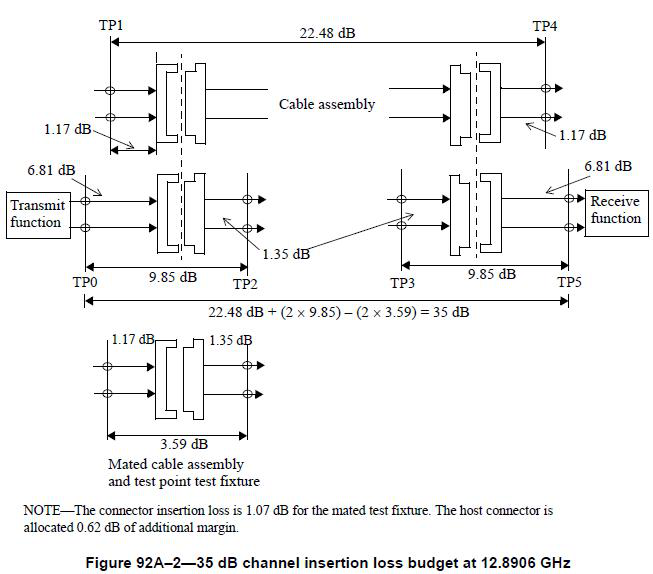

| Parameter | Value |
|---|---|
| QSFP28 Conforms to Small Form Factor | SFF8665 |
| Number of Channels | 4 |
| Support Data Rates (Gb/s per channel) | 25.78 |
| Maximum Aggregate Data Rate (Gb/s) | 100 |
| Standard | IEEE 802.3bj 100GBASE-CR4, InfiniBand EDR, QSFP28 MSA |
| Copper Link Length (m) | up to 5 |
| Power Supply (V) | +3.3 |
| Operating Temperature (°C) | 0~70 |
| Storage Ambient Temperature (°C) | -40~85 |
| Differential Impedance (bulk cable) (Ω) | 95~100 |
| Differential Impedance (Mated connector) (Ω) | 90~100 |
| Differential Impedance (cable termination) (Ω) | 85~100 |
| Insertion Loss (dB) | 22.48@12.8906GHz |
| Differential Return Loss (dB) | See 1@0.05 to 4.1GHz, See 2@4.1 to 19GHz |
| Common-mode to common-mode output return loss (dB) | 2@0.02 to 19GHz |
| Differential to common-mode return loss (dB) | 3@0.01 to 12.89GHz, 2@12.89 to 19GHz |
| Differential to common-mode conversion loss (dB) | 5@12.89 to 15.7GHz, 6.3@15.7 to 19GHz |
| Channel Operating Margin (dB) | 3 |
| Wire Gauge (AWG) | 30, 28, 26 |

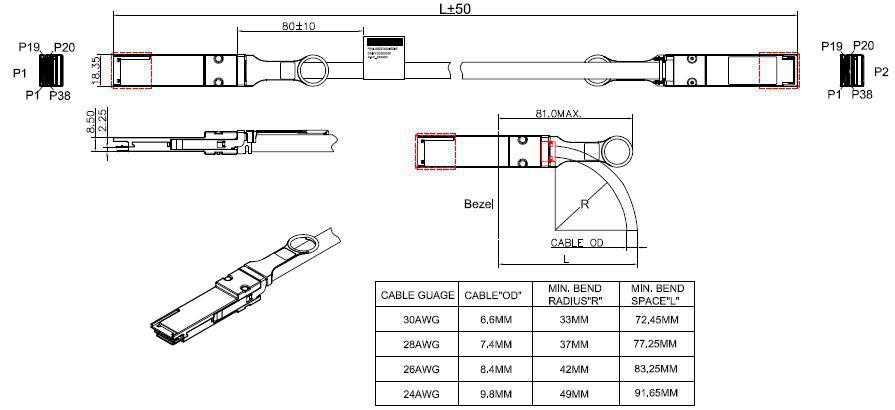

| Min Bend Radius (mm) | 33, 37, 49 |
| Min Bend Space (mm) | 72.45, 83.23, 91.05 |
