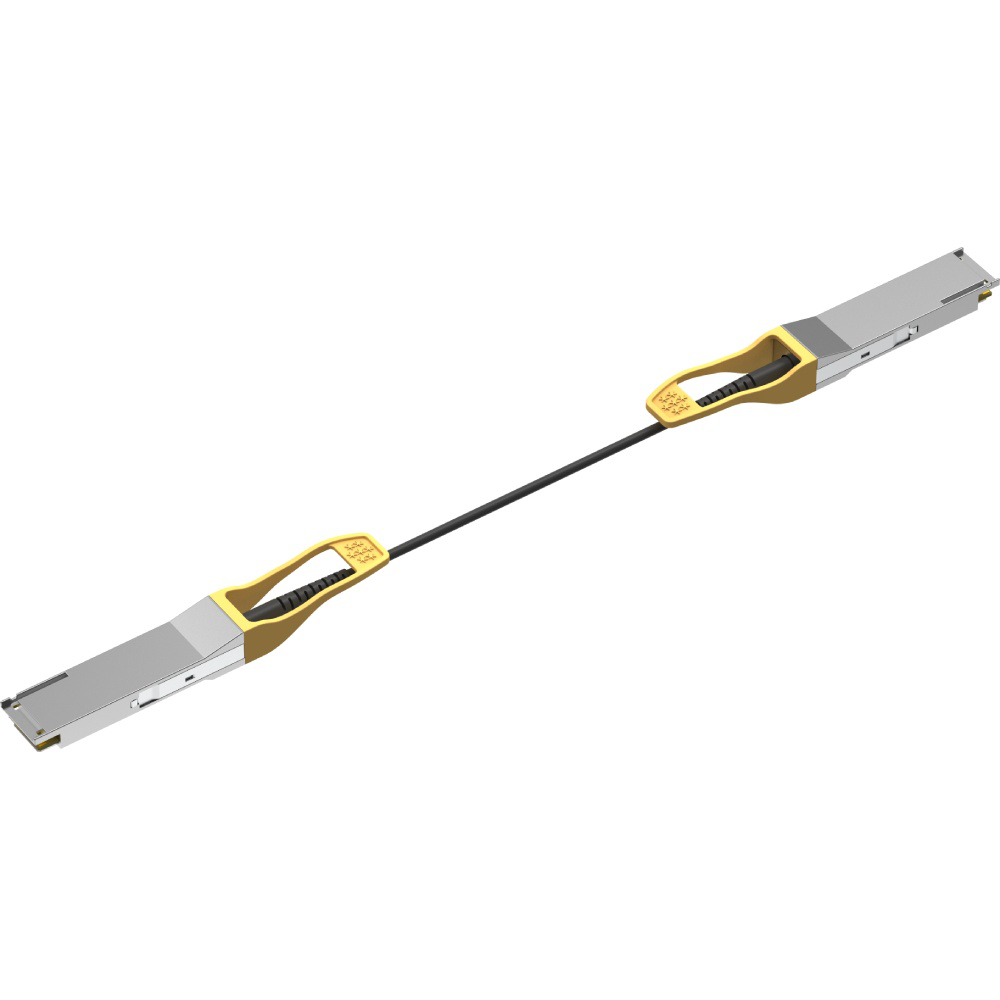

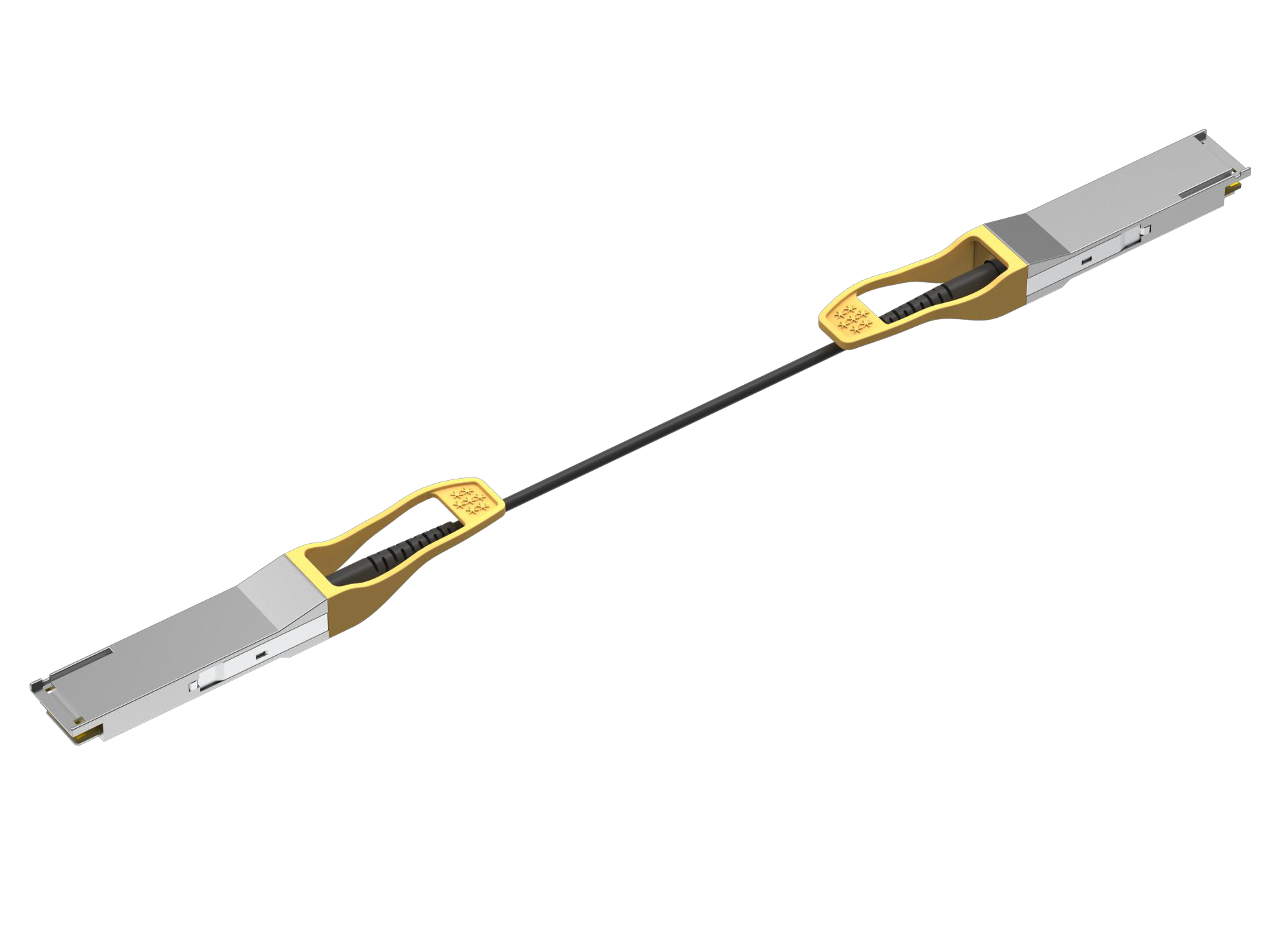

GQS-MDO101-xxxT Hardened Active Optical Cable

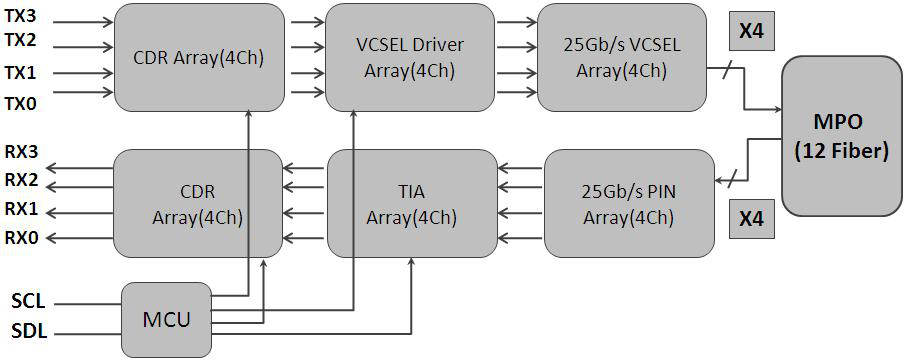

The Gigalight GQS-MDO101-xxxT is a four-channel, pluggable, parallel, fiber-optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet, InfiniBand FDR/EDR applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

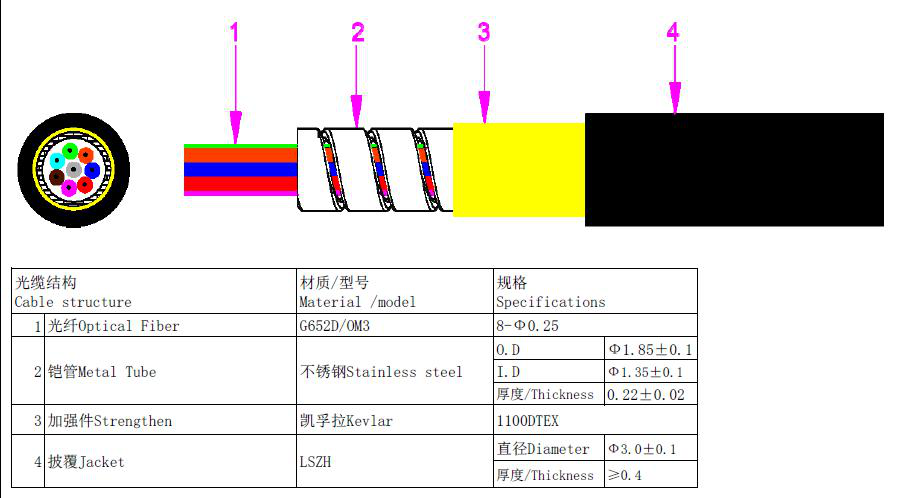

| Optical Cable Outer Diameter | 3mm |
| Optical Cable Loss | 3.5dB/km OM3 |
| Tensile 1 | 300N Long Term |
| Tensile 2 | 600N Short Term |
| Crush Resistance 1 | 2000N/100mm Long Term |
| Crush Resistance 2 | 3000N/100mm Short Term |
| Differential Input Impedance | 90-100ohm |
| Differential Output Impedance | 90-100ohm |
| Differential Input Voltage Amplitude | 300-1100mVp-p |
| Differential Output Voltage Amplitude | 300-500mVp-p |
| Skew | ≤300ps |
| Bit Error Rate | 1E-10 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | VCC-0.5V |
| Output Logic Level Low | 0-0.4V |
| Centre Wavelength | 840-850-860nm |
| RMS Spectral Width | ≤0.6nm |
| Average Launch Power Each Lane | -8.4-2.4dBm |
| Optical Modulation Amplitude Each Lane | -6.4-3dBm |
| Transmitter and Dispersion Eye Closure Each Lane | ≤4.3dB |
| Extinction Ratio | ≥3dB |
| Average Launch Power of OFF Transmitter Each Lane | ≤-30dBm |
| Stressed Receiver Sensitivity in OMA | ≤-5.2dBm |
| Receiver Reflectance | ≤-12dB |
| LOS Assert OMA | ≤-30dBm |
| LOS De-Assert OMA | ≤-7.5dBm |
| Los Hysteresis | 0.5dB |
| Supply Voltage | 3.13-3.3-3.47V |
| Operating Case Temperature | -40-85°C |
| Data Rate | 25.78125Gbps Per Lane |
| Humidity | 5-85% |
| Power Dissipation | ≤2W |
