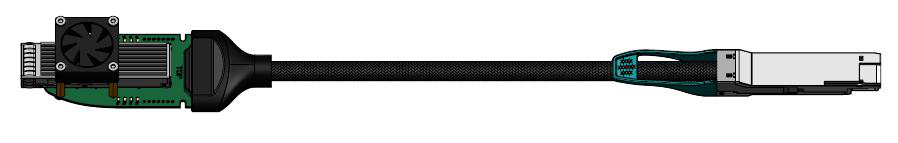

800G QSFP-DD Immersion Cooling Extender

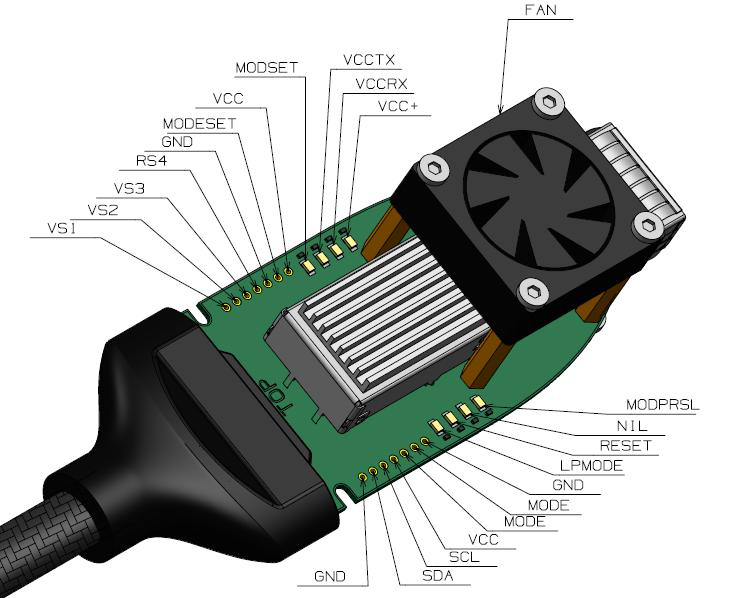

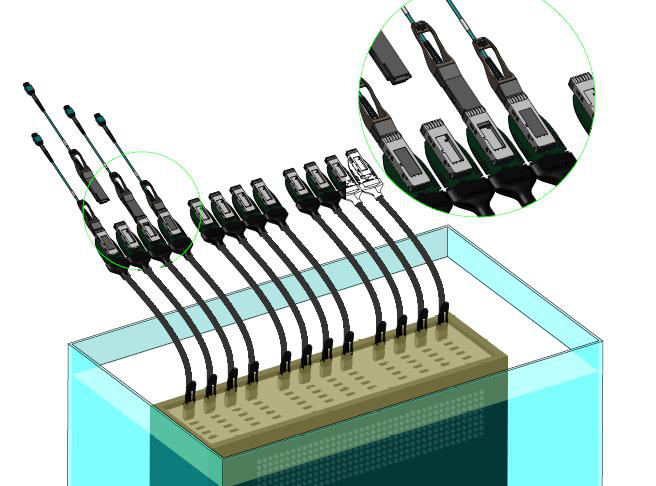

The 800G QSFP-DD immersion cooling extender is designed for liquid immersion environments, providing reliable performance and protecting QSFP-DD SMT connectors. It supports I2C read/write functions and LED status indicators.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -20°C to 85°C |
| Case Operating Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5% to 95% |
| Supply Voltage | 3.13V to 3.47V |
| Support Power Dissipation | 16W |
| Operating Case Temperature | 0°C to 70°C |
| Baud Rate per Lane | 53.12GBaud/s |
| Insertion Loss | <8dB@26.56GHz with 0.3m length |
| Differential Impedance System | 100Ohm |
| Power Supply | 3.3V |
| Fan Power Dissipation | 0.85W |
| RoHS 6 Compliant (Lead-Free) | Yes |
