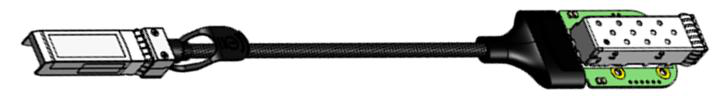

SFP28 Immersion Cooling Extender

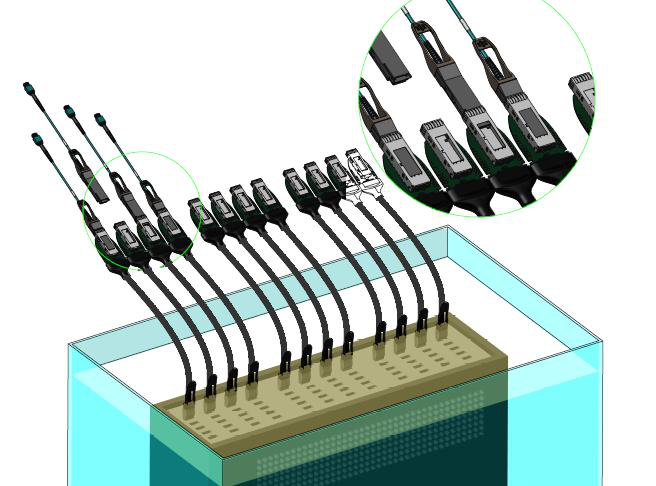

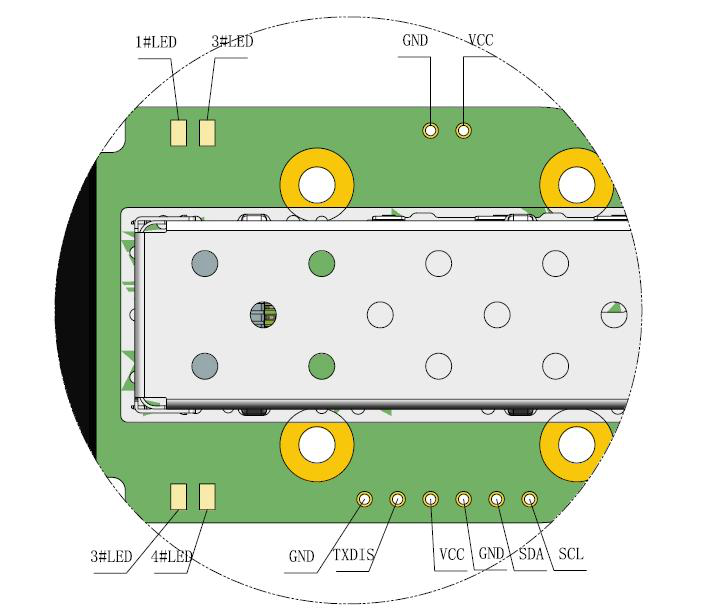

The SFP28 immersion cooling extender is an essential component of liquid immersion solutions, designed to extend SFP28 transceivers/AOCs in liquid cooling environments. It protects the SFP SMT connector and provides I2C read/write functionality and LED status indicators.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) | ≤4@12.89GHz |
| Differential Impedance System | 100Ω |
| Supply Voltage | 3.3V |
| Storage Temperature | -20°C to 85°C |
| Operating Case Temperature | 0°C to 70°C |
| Humidity (non-condensing) | 5% to 95% |
| Support Power Dissipation | 4W |
| Baud Rate per Lane | 25.78Gbps |

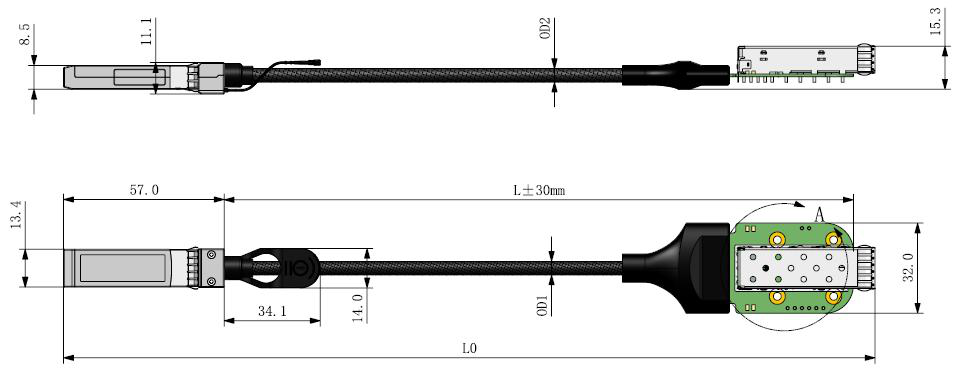

| Length | 0.5m |
| Housing Material | PET jacket |
Applications
Key Features
Datasheet
