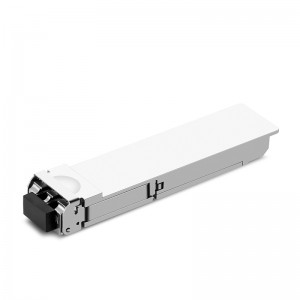

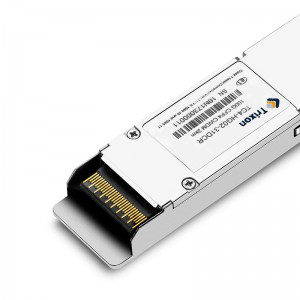

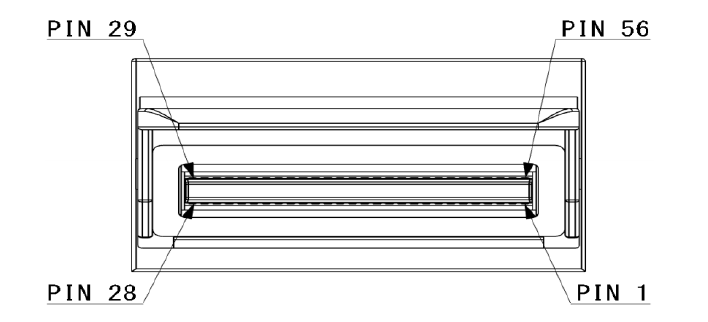

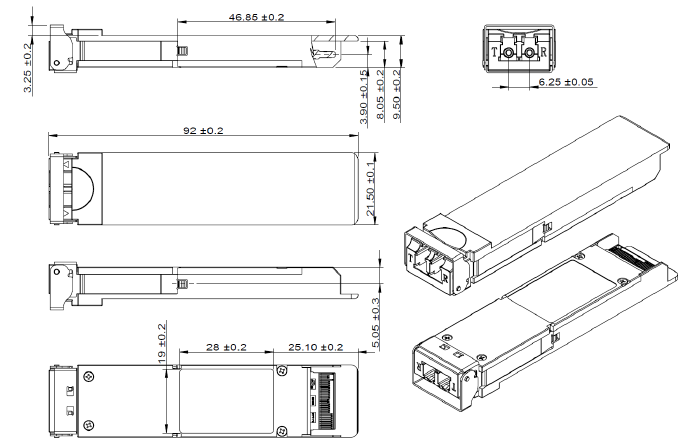

CFP4 LR4 Receiver 100G-BASE 10km CFP4
The CFP4 LR4 Receiver is designed for 100 Gigabit Ethernet links over 10km single-mode fiber, compliant with CFP4 MSA CFP4 HW and IEEE 802.3ba 100GBASE-LR4 standards. It offers high performance and cost efficiency for Datacom and Telecom applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 112G |
| Laser | - |
| Fiber Type | SMF |
| Distance | 10km |
| Optical Interface | LC |
| Bail Color | Blue |
| Operating Case Temperature | 0~+70°C |
| Storage Temperature | -40~+85°C |
| Supply Voltage | -0.5~3.6V |
| Operating Humidity | 5~85% |
| Power Dissipation | 1.5W |
| Impedance | 85~115ohm |
| Output Amplitude Voltage | 360~900mV |
| Output Rise/Fall Time 20/80% | 9.5ps |
| Receiver Loss of Signal Assert Time | 100us |
| Receiver Loss of Signal De-Assert Time | 100us |
| Global Alarm Assert Delay Time | 150ms |
| Global Alarm De-Assert Delay Time | 150ms |
| Host MDIO t_setup | 10ns |
| Host MDIO t_hold | 10ns |
| CFP4 MDIO t_delay | 0~300ns |
| Initialization Time from Reset | 2.5s |
| Management Interface Clock Frequency | 0.1~4MHz |
| Management Interface Clock Period | 250~10000ns |
| MDC High and Low Time | 40~60% |
| MDIO/MDC Termination in CFP4 | 100kOhm |
| Channel Data Rate | 27.95Gbps |
| Data Rate Variation | -20~20ppm |
| Centre Wavelength λC1 | 1294.53~1296.59nm |
| Centre Wavelength λC2 | 1299.02~1301.09nm |
| Centre Wavelength λC3 | 1303.54~1305.63nm |
| Centre Wavelength λC4 | 1308.09~1310.19nm |
| Damage Threshold | 5.5dBm |
| Average Receiver Power per Pin | -8.8~4.0dBm |
| Equivalent Receiver Sensitivity per Lane | -10.6dBm |
| Vertical Eye Closure Penalty per Lane | 1.5dB |
| Rx-Lane LOS Assert | -21.3dBm |
| Rx-Lane LOS De-assert | -11.3dBm |
| Rx-Lane LOS Hysteresis | 0.5dB |
| Channel Data Rate (100GBASE LR4) | 25.78Gbps |
| Data Rate Variation (100GBASE LR4) | -100~+100ppm |
| Centre Wavelength λC1 (100GBASE LR4) | 1294.53~1296.59nm |
| Centre Wavelength λC2 (100GBASE LR4) | 1299.02~1301.09nm |
| Centre Wavelength λC3 (100GBASE LR4) | 1303.54~1305.63nm |
| Centre Wavelength λC4 (100GBASE LR4) | 1308.09~1310.19nm |
| Damage Threshold (100GBASE LR4) | 5.5dBm |
| Average Receiver Power per Pin (100GBASE LR4) | -10.6~4.0dBm |
| Receiver Sensitivity in OMA per Lane | -8.6dBm |
| Stressed Sensitivity (OMA) per Lane | -6.8dB |
| Rx-Lane LOS Assert (100GBASE LR4) | -20.6dBm |
| Rx-Lane LOS De-Assert (100GBASE LR4) | -10.6dBm |
| Rx-Lane LOS Hysteresis (100GBASE LR4) | 0.5dB |
