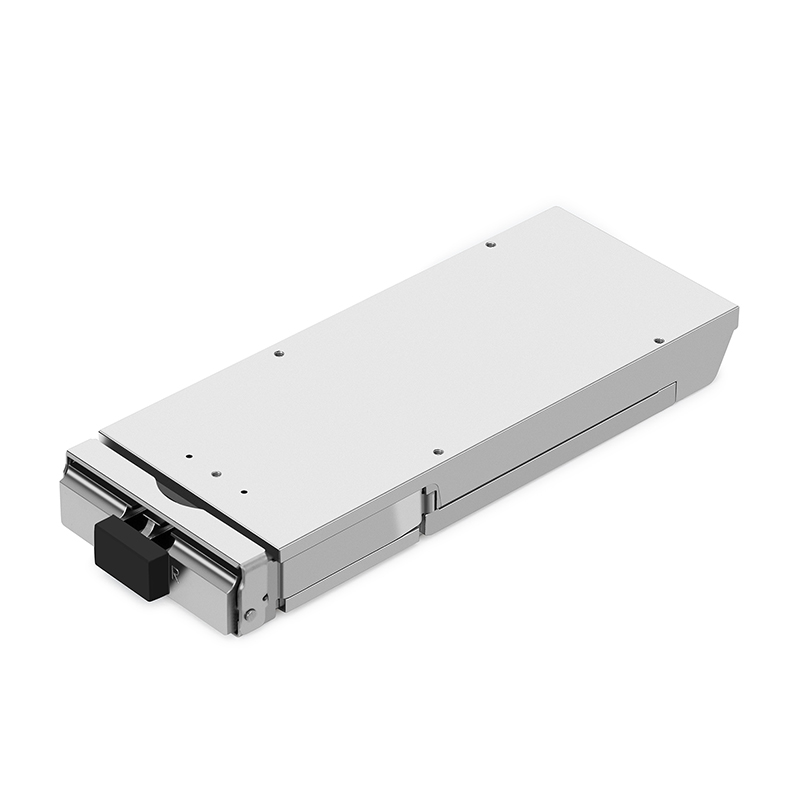

CFP2-LR4 Receiver 100G-BASE 10km CFP2
The CFP2-LR4 Receiver is designed for 100 Gigabit Ethernet links over 10km single-mode fiber. It complies with CFP2 MSA and IEEE 802.3ba standards, offering high performance and cost efficiency for datacom and telecom applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 112GbpsGbps |
| Distance | 10km |
| Optical Interface | LC |
| Supply Voltage | 3.14~3.47V |
| Low Power Dissipation | 2W |
| Input High Voltage | 2~Vcc+0.3V |
| Input Low Voltage | -0.3~0.8V |
| Input Leakage Current | -10~10mA |
| Output High Voltage | Vcc-0.2~Vcc+0.3V |
| Output Low Voltage | -0.3~0.2V |
| Reference Clock Impedance | 85~115ohm |
| Reference Clock Differential Voltage | 900mV |
| Channel Data Rate | 25.7812GbpsGbps |
| Data Rate Variation | -100~100ppmppm |
| Centre Wavelength | 1294.53~1309.14nm |
| Damage Threshold | 5.5dBm |
| Average Receiver Power | -10.6~4.5dBm |
| Receiver Sensitivity | -8.6dBm |
| Stressed Receiver Sensitivity | -6.8dBm |
| Receiver Reflectance | -26dB |
| Rx-Lane LOS Assert | -21~-16dBm |
| Rx-Lane LOS De-assert | -16~-15dBm |
| Rx-Lane LOS Hysteresis | 0.5dB |
