10G Ethernet CWDM XFP Series

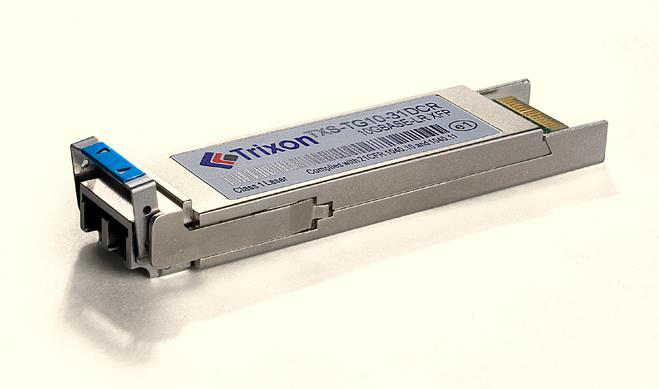

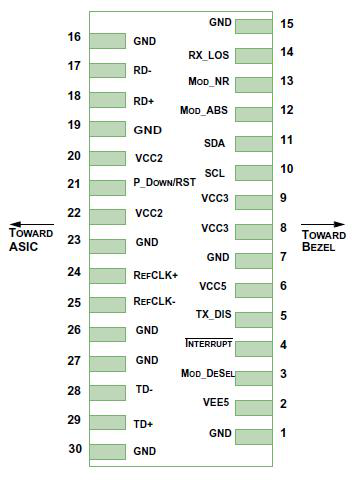

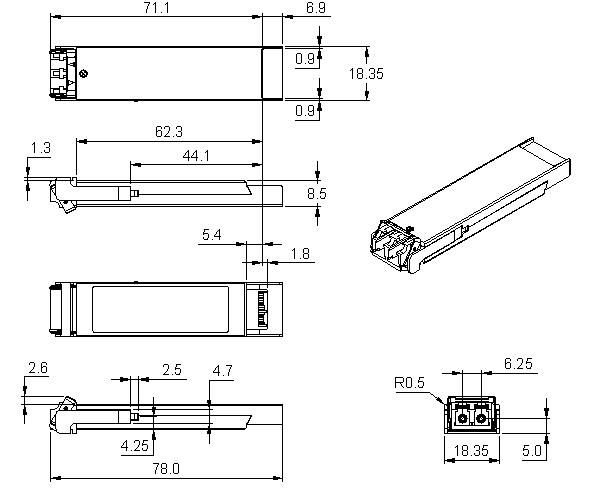

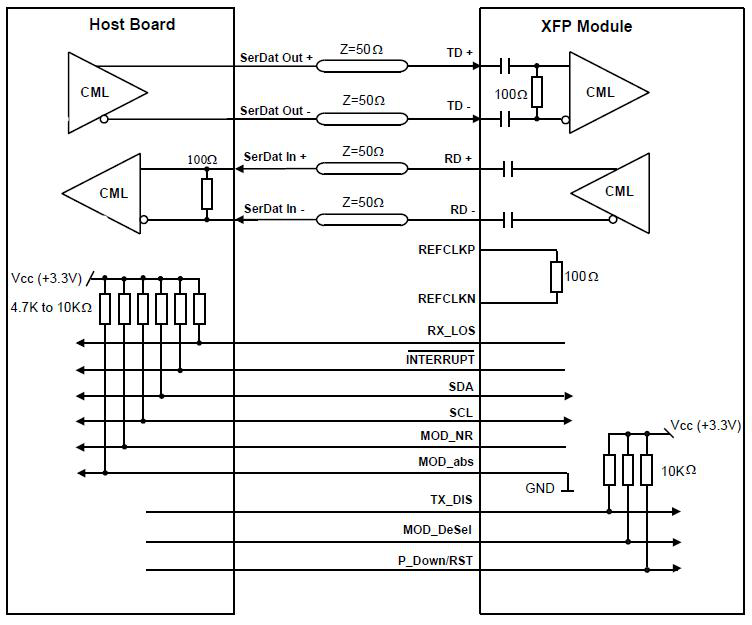

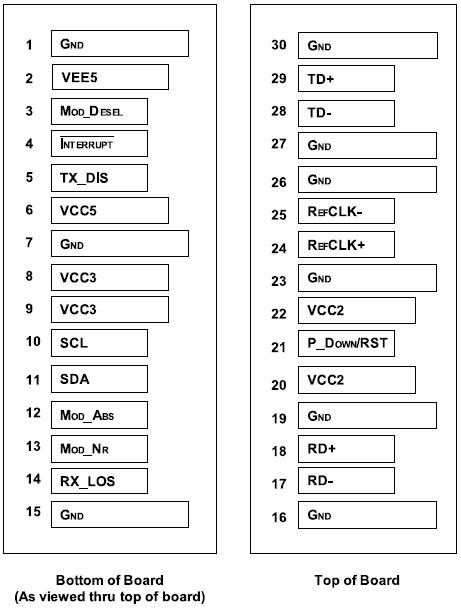

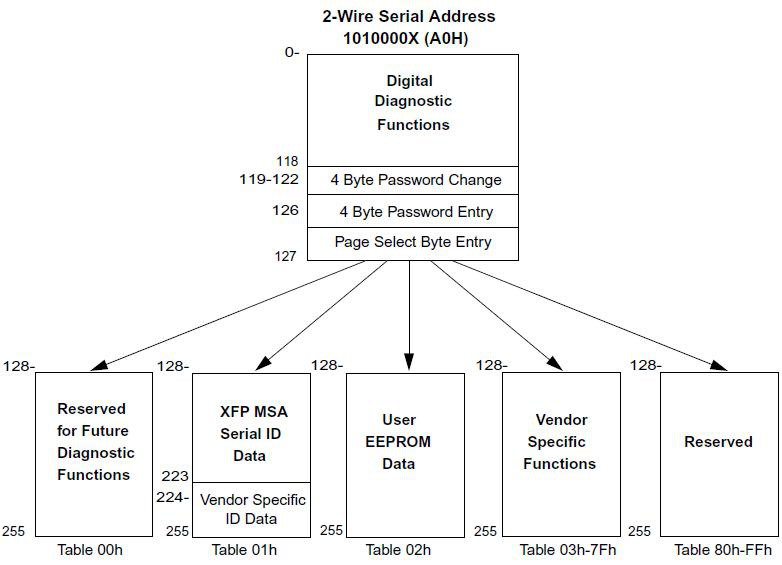

Trixon CWDM XFP series products are XFP form factor pluggable transceivers designed for duplex optical data communications. They comply with XFP multi-source agreement (MSA: SFF-8077i) and support 10-Gigabit Ethernet IEEE802.3ae and 10G Fiber Channel. The transceivers feature digital diagnostics functions and standard transceiver serial ID information accessible via a 2-wire serial interface. They are RoHS compliant and lead-free per Directive 2002/95/EC and 2005/747/EC.
Save to Favorites
Overview
Specifications

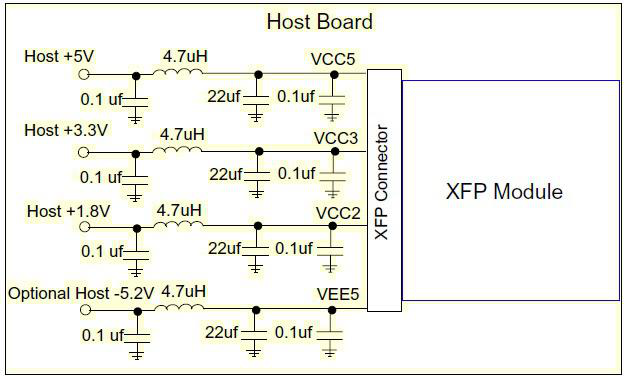

| Parameter | Value |
|---|---|
| Data Rate | 10.3Gbps |
| Laser Type | DFB |
| Laser Type | EML |
| Fiber Type | SMF |
| Distance | 10km, 40km, 80km |
| Optical Interface | LC |
| Operating Case Temperature | -5°C~+70°C |
| Storage Temperature | -40°C~+85°C |
| Supply Voltage | 3.3V, 5V |
| Power Dissipation | 2W (10km), 3.5W (40km/80km) |
| Bit Rate | 10.3125Gbps |
| I2C Clock Frequency | 100kHz |
| Centre Wavelength | 1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1411nm, 1431nm |
| Spectral Width (-20dB) | ≤1nm (10km), ≤0.3nm (40km/80km) |
| Side Mode Suppression Ratio | ≥30dB |
| Average Output Power | -8.2~0.5dBm (10km), -4~4.7dBm (40km), 0~4dBm (80km) |
| Extinction Ratio | ≥3.5dB (10km), ≥3dB (40km/80km) |
| Average Power of OFF Transmitter | ≤-30dBm |
| Transmitter Dispersion Penalty | ≤3.2dB (10km), ≤3dB (40km/80km) |
| Optical Return Loss Tolerance | ≥12dB (10km), ≥21dB (40km/80km) |
| Receiver Sensitivity | ≤-14.4dBm (10km), ≤-15.8dBm (40km), ≤-24dBm (80km) |
| Receiver Overload | ≤0.5dBm (10km), ≤-1dBm (40km), ≤-7dBm (80km) |
| Los De-assert | ≤-14dBm (10km), ≤-16.5dBm (40km), ≤-22dBm (80km) |
| Los Assert | ≤-25dBm (10km), ≤-30dBm (40km), ≤-36dBm (80km) |
| Los Hysteresis | 0.5~4dB |
