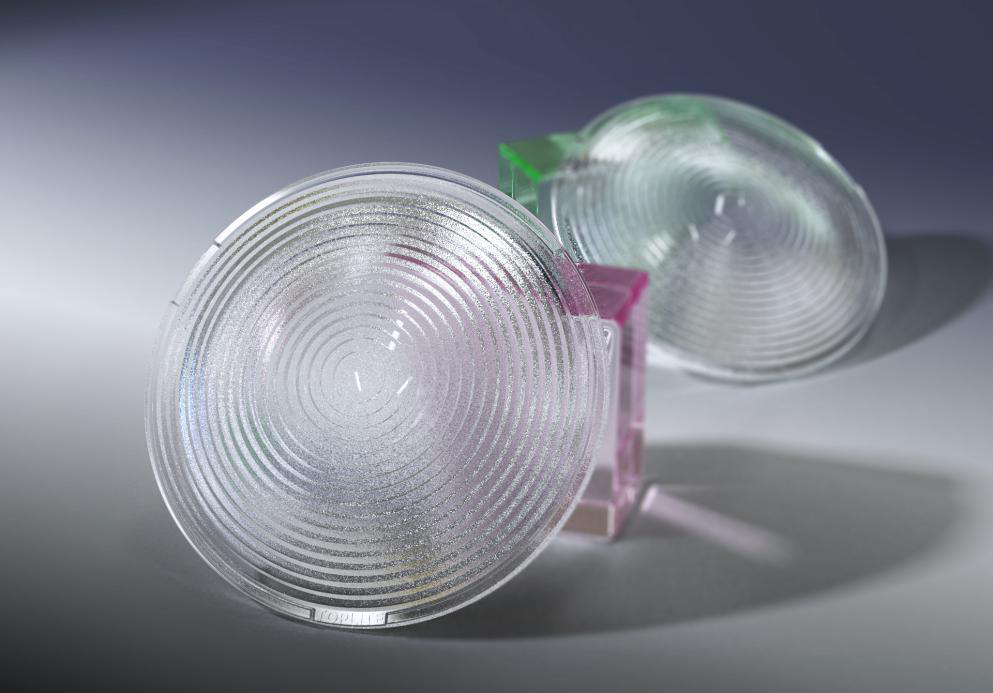

Cracker Glass Series Fresnel Lens
Cracker Glass series Fresnel lenses are smaller and have shorter focal lengths compared to conventional glass Fresnel lenses. The special compression process gives Cracker Glass Fresnel lenses a unique network structure with better inclination and surface angle, providing superior optical performance. The Cracker Glass series Fresnel lenses are adjustable within a certain range, with natural light transmission and adjustable angles up to 1~100°.
Save to Favorites
Overview
Specifications

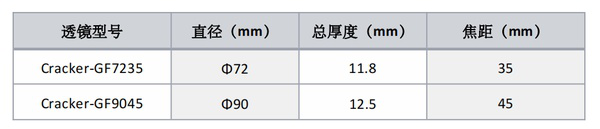

| Parameter | Value |
|---|---|
| Lens Model Cracker-GF7235 | Cracker-GF7235 |
| Diameter (mm) Cracker-GF7235 | Φ72 |
| Total Thickness (mm) Cracker-GF7235 | 11.8 |
| Focal Length (mm) Cracker-GF7235 | 35 |
| Lens Model Cracker-GF9045 | Cracker-GF9045 |
| Diameter (mm) Cracker-GF9045 | Φ90 |
| Total Thickness (mm) Cracker-GF9045 | 12.5 |
| Focal Length (mm) Cracker-GF9045 | 45 |
