IMM50 High Definition Imaging Lens Group

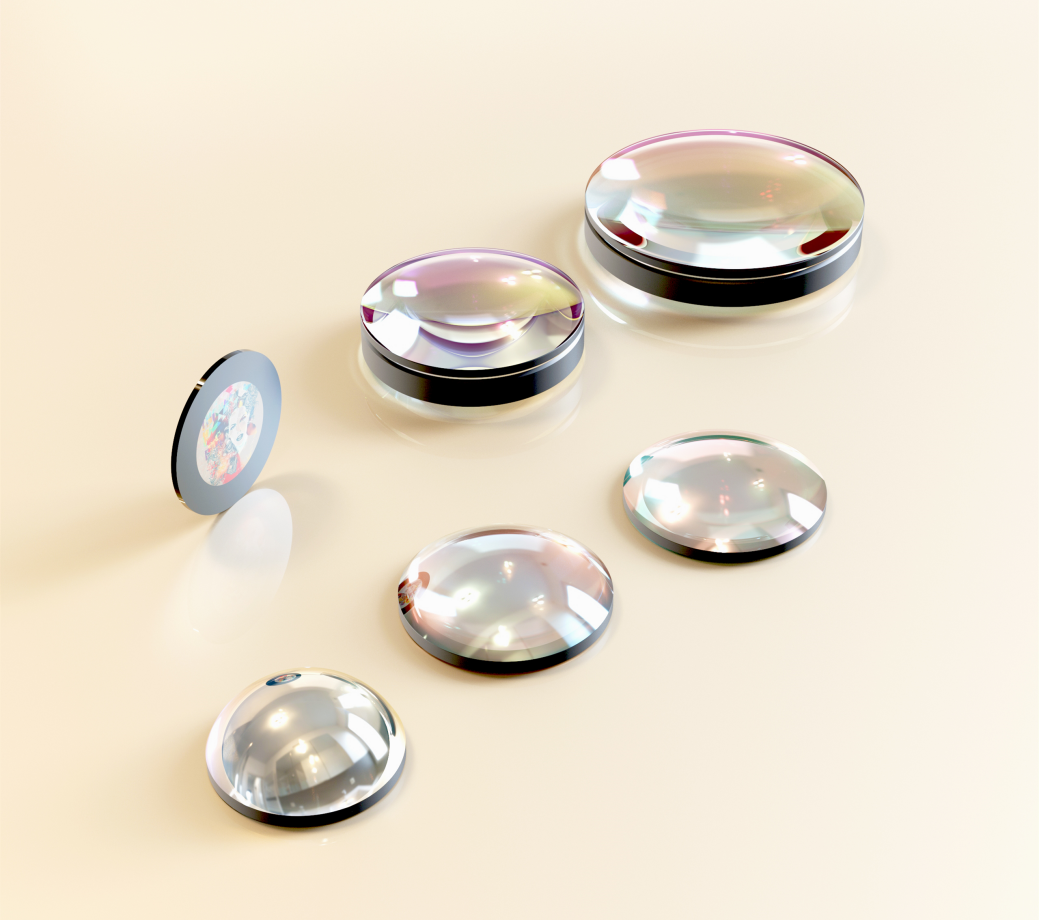

The IMM50 series high-definition imaging lens group includes five different focal lengths and thicknesses of imaging lenses. Made of optical glass material, these lenses are processed with high precision grinding and polishing, and manufactured using advanced optical processing technology. The lenses are coated with multiple layers of anti-reflective coatings, ensuring high-quality imaging with uniform light spots, minimal distortion, and no blue-yellow edge effects.
Save to Favorites
Overview
Specifications

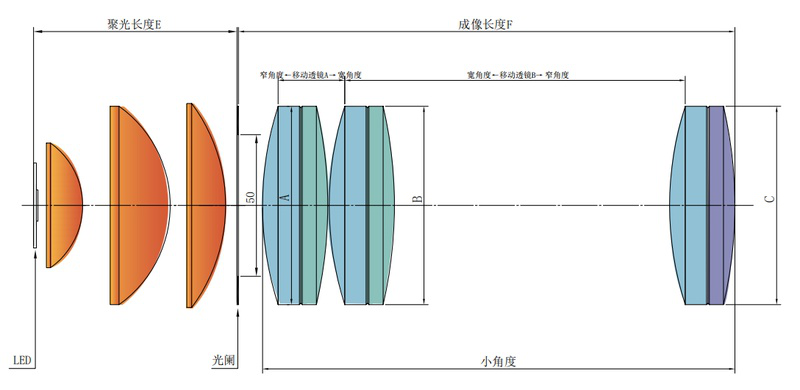

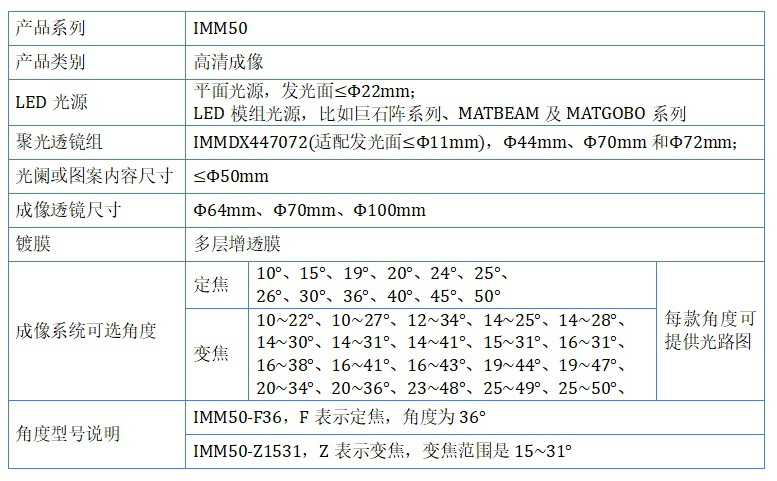

| Parameter | Value |
|---|---|
| Optical Product Series | IMM50 |
| Product Category | High Definition Imaging |
| LED Light Source | Flat LED or COB, emitting surface ≤22mm; LED modules such as Giant Stone series, MATBEAM and MATGOBO series |

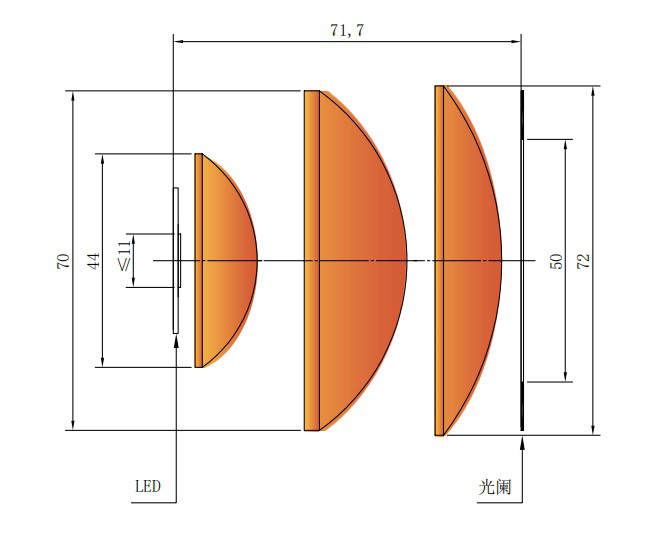

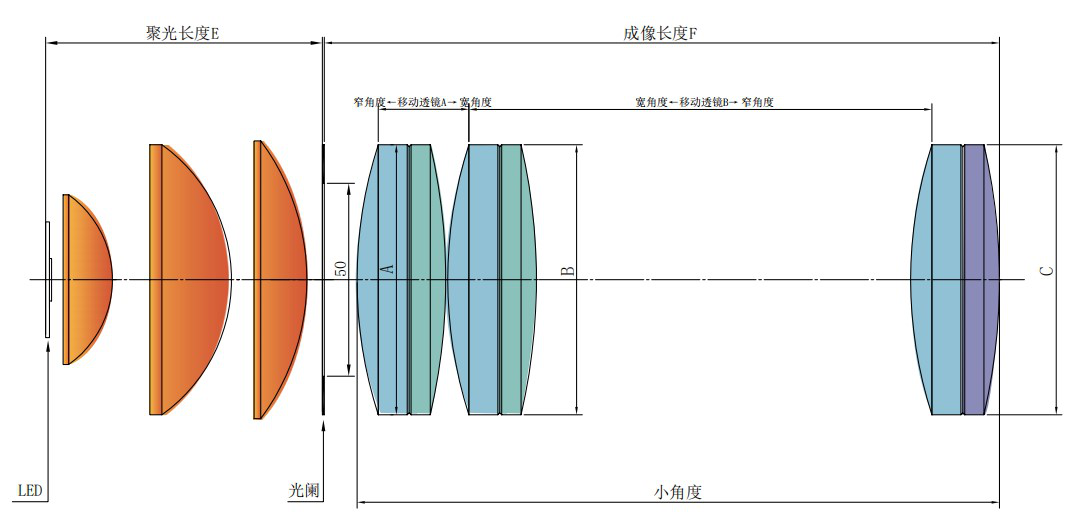

| Condensing Lens Group | IMMDX447072 (suitable for emitting surface ≤Φ11mm), Φ44mm, Φ70mm, and Φ72mm |
| Aperture Size | ≤Φ50mm |
| Imaging Lens Size | Φ64mm, Φ70mm, Φ100mm |
| Coating | Multi-layer anti-reflective coating |

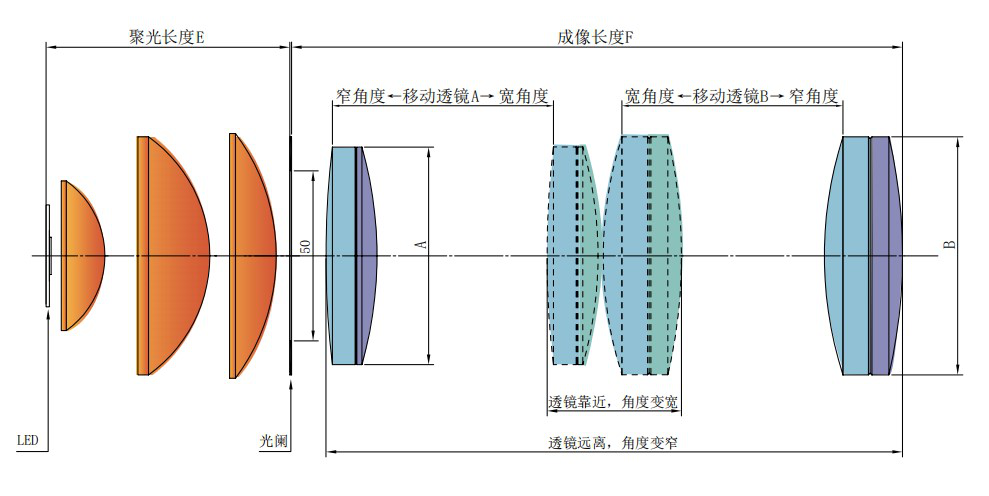

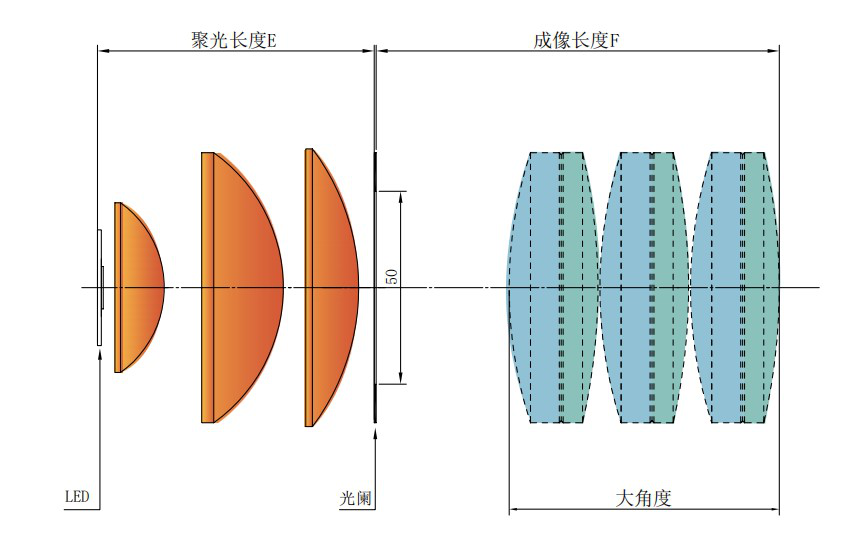

| Selectable Imaging System Angles | Fixed: 10°, 15°, 19°, 20°, 24°, 25°, 26°, 30°, 40°, 45°, 50°; Variable: 10°~22°, 10°~27°, 12°~34°, 14°~25°, 14°~28°, 14°~30°, 14°~31°, 15°~31°, 16°~34°, 16°~38°, 19°~44°, 19°~47°, 20°~34°, 20°~36°, 23°~48°, 25°~49°, 25°~50° |
| Angle Model Description | IMM50-F36 represents fixed angle of 36°; IMM50-Z1531 represents variable angle range of 15°~31° |
