IMM40 High Definition Imaging Lens Group
IMM40 series high-definition imaging lens group includes 4 models with different diameters and thicknesses, specially designed for imaging. Made of optical glass material, the lenses are processed with high precision grinding and surface polishing technology. The multi-layer coating ensures high light transmission and minimizes chromatic aberration, providing high-quality imaging.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Optical Product Series | IMM40 |
| Product Category | High Definition Imaging |
| LED Light Source | High-density LED or COB, emission surface ≤8.5mm |

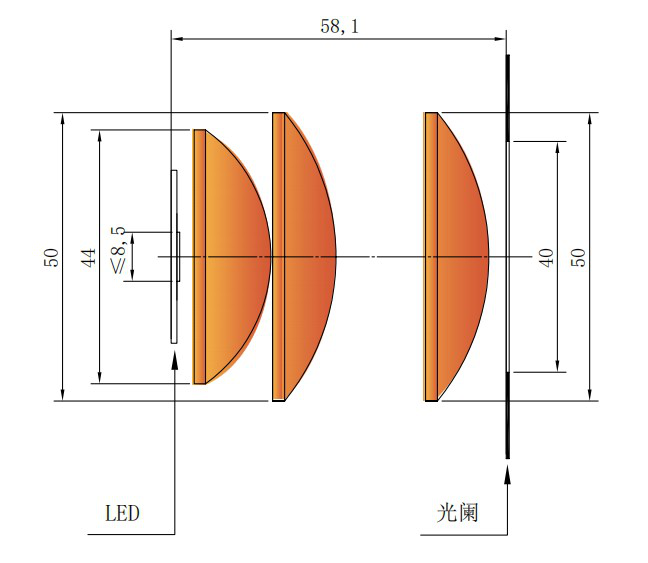

| Condensing Lens Group | IMMDX4450X2, diameters: Ø44mm and Ø50mm |
| Aperture Size | ≤Ø40mm |

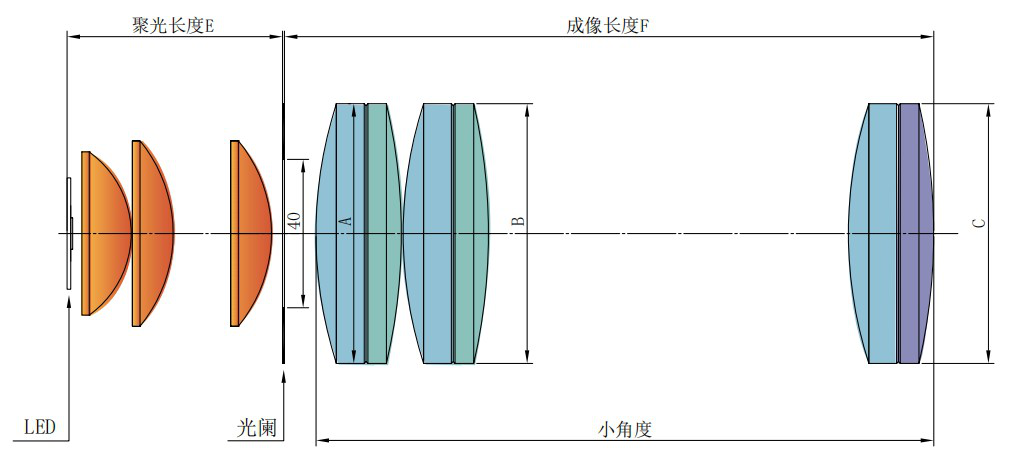

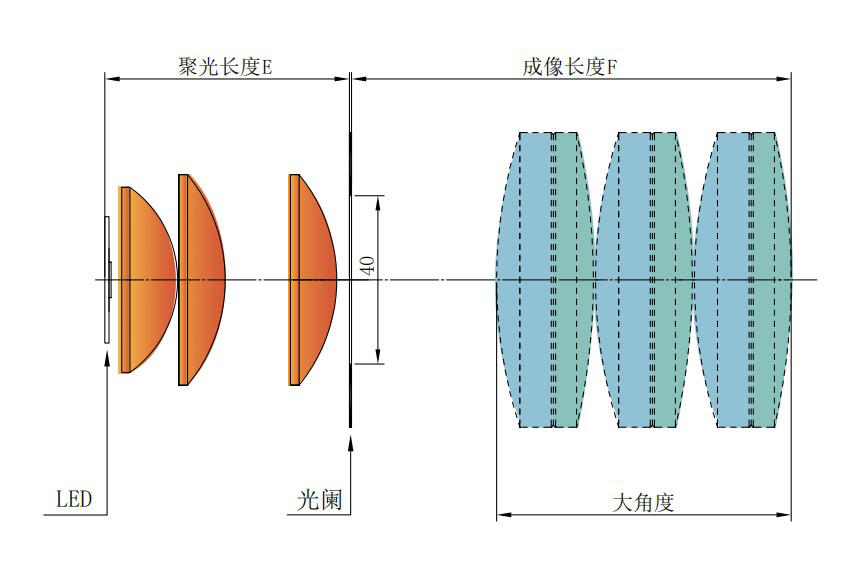

| Imaging Lens Size | Ø64mm, Ø70mm, Ø100mm |
| Coating | Multi-layer coating |
| Selectable Imaging System Angles | 8°, 10°, 15°, 19°, 20°, 24°, 25°, 26°, 30°, 36°, 40° |

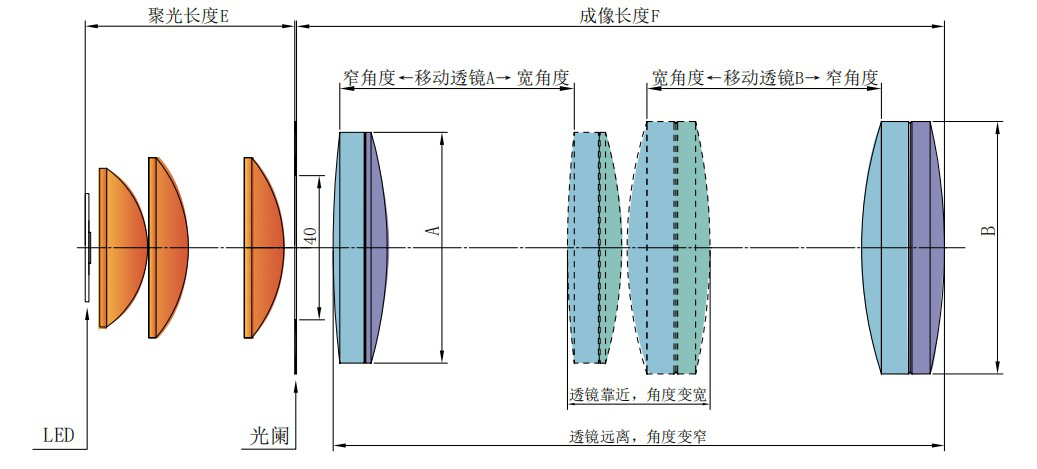

| Angle Model Description | IMM40-F36: Fixed angle, 36°; IMM40-Z1536: Z represents variable angle, range 15°-36° |
