IMM25 Series High-Definition Imaging Lens Assembly

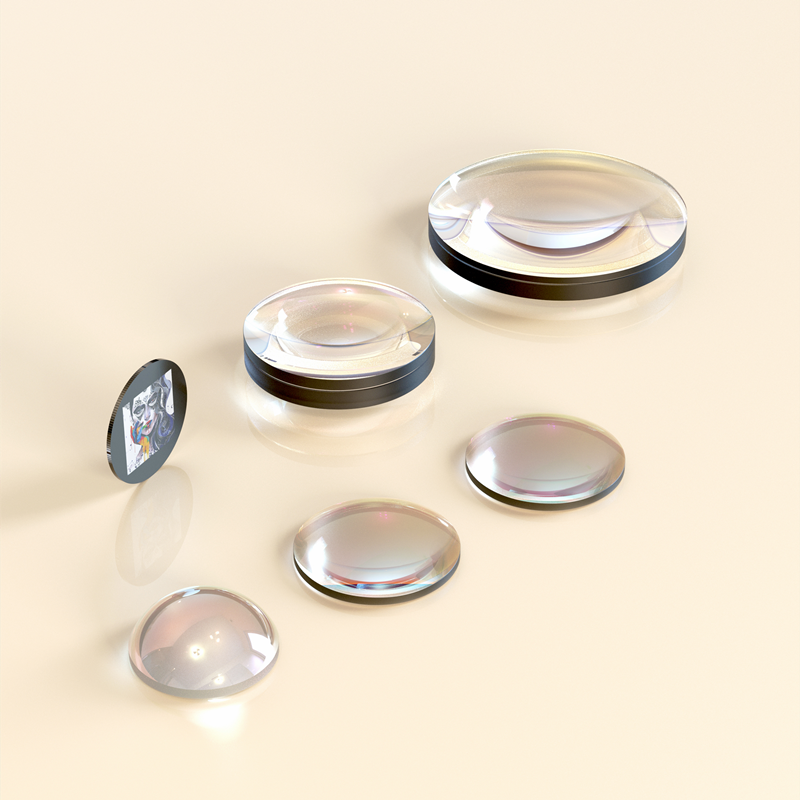

IMM25 series high-definition imaging lens assemblies are designed for various imaging applications. They use precision optical glass with high-quality grinding and surface polishing to ensure excellent imaging quality. The lens system can be configured as fixed or variable focal systems, providing sharp and clear imaging with minimal chromatic aberration.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Series | IMM25 |
| LED Light Source | High-density LED or COB, emitting surface <11mm |
| Condensing Lens Group | IMMDX3033, IMMDX3035, IMMDX253535, IMMDX303535 |
| Aperture or Pattern Content Size | ≤Φ25mm |
| Imaging Lens Size | Φ44mm, Φ50mm, Φ64mm |
| Coating | Enhanced transparency |
| Fixed Focus Angle | 8°, 10°, 15°, 19°, 20°, 25°, 26°, 30°, 36°, 40°, 45° |

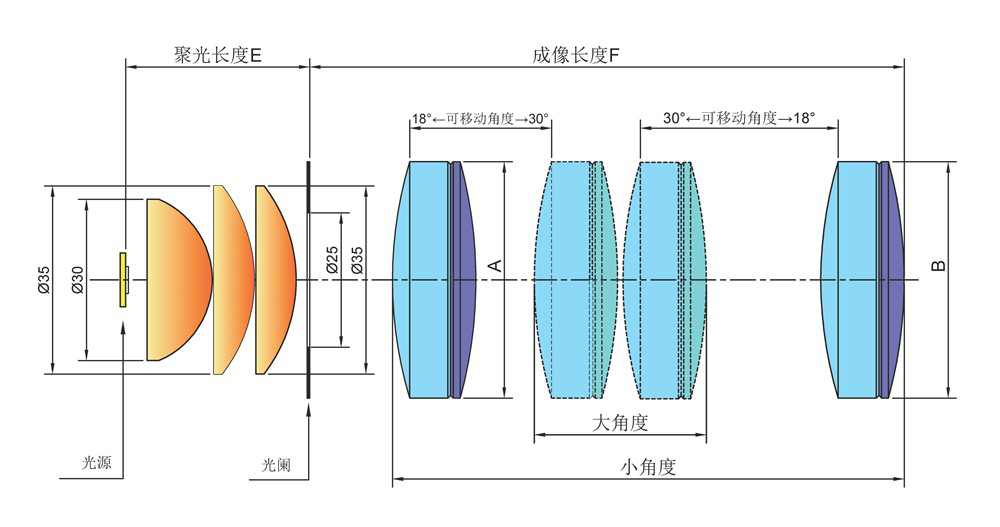

| Adjustable Imaging System Angle | 18°~30°, 18°~34°, 26°~42°, 27°~44°, 40°~60° |
| Total Optical Path Length | 29.4mm, 34.2mm |
| Condensing Length E | 29.4mm, 34.2mm |
| Imaging Length F | 273.8mm, 191.7mm, 191.8mm, 188.8mm, 151.7mm, 140.6mm, 87.7mm, 83.7mm, 80.8mm, 73.7mm, 65.4mm, 67.5mm, 122.1mm, 110.5mm, 81.4mm, 97.8mm, 98.3mm, 67.2mm |

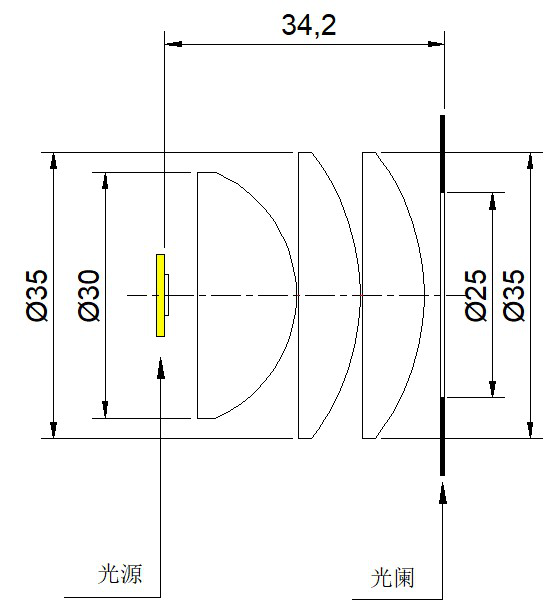

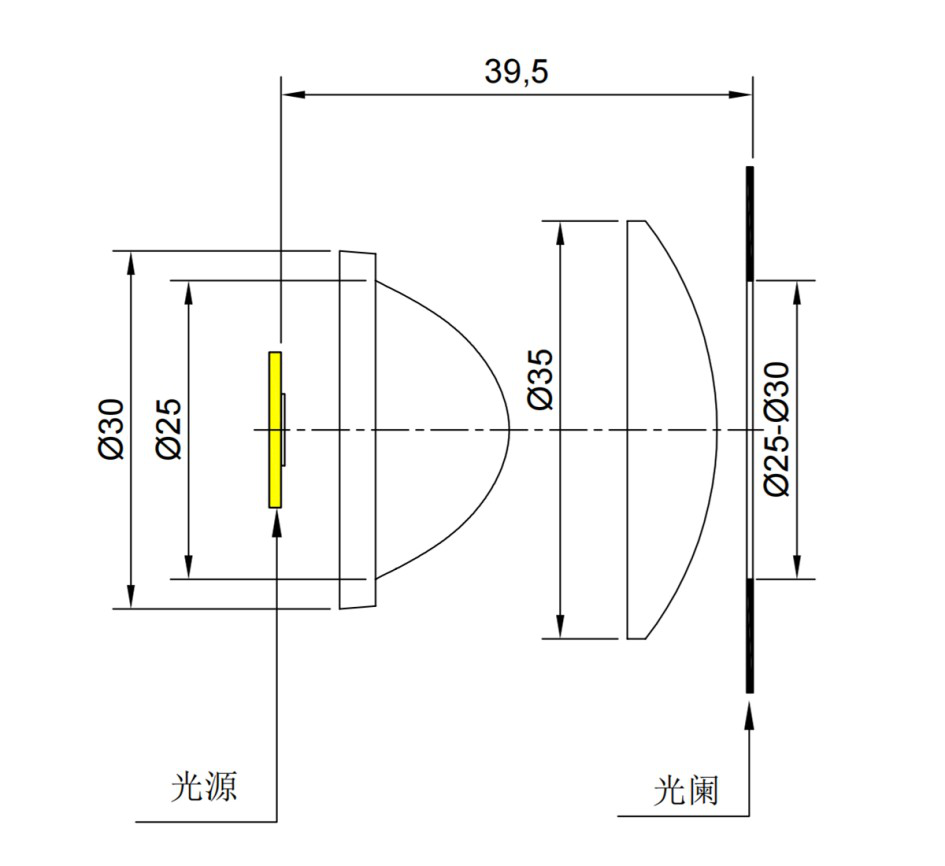

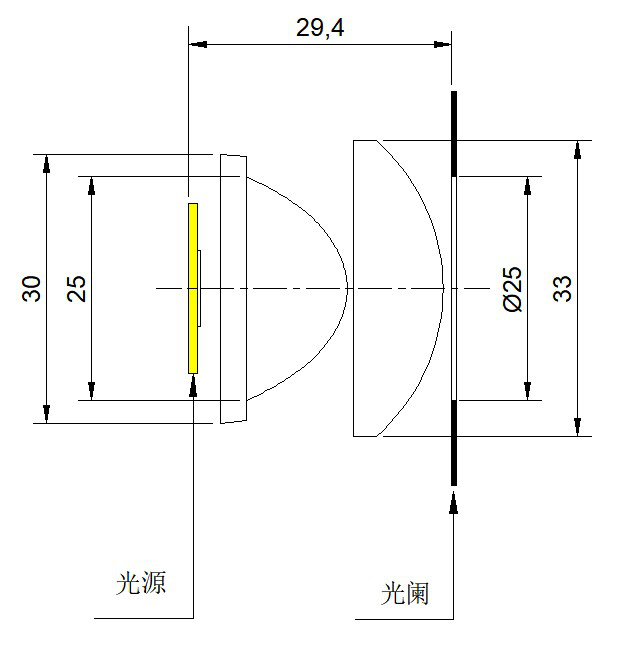

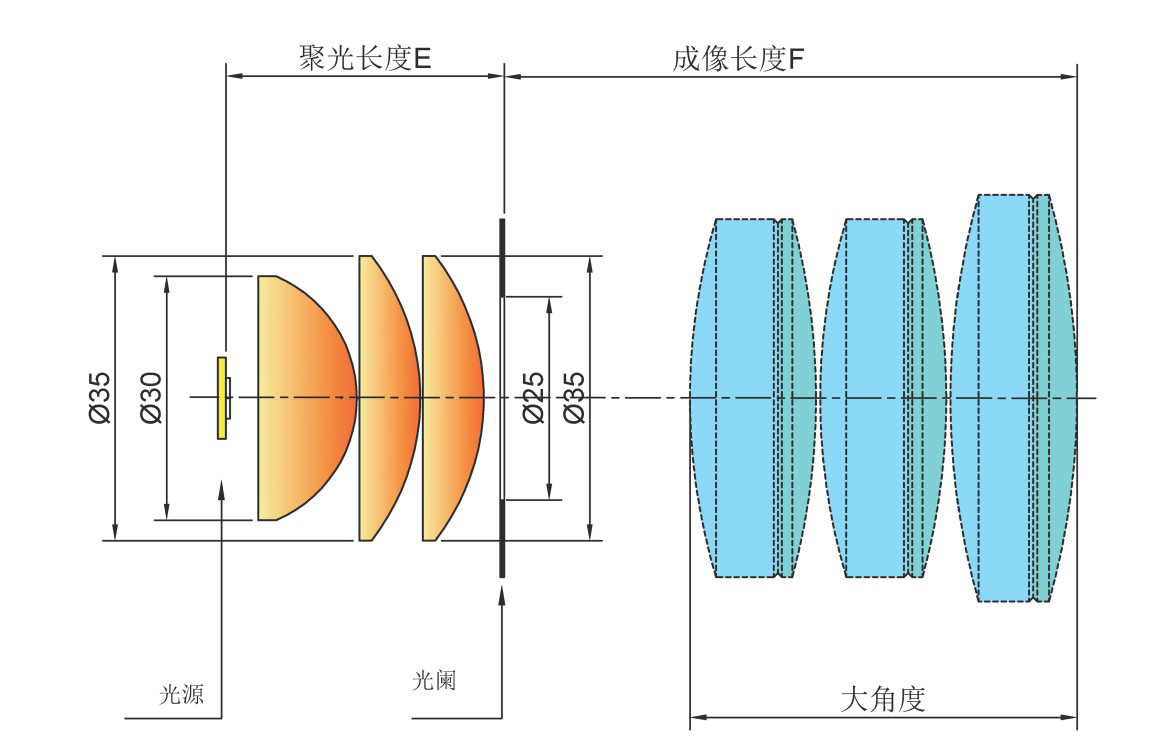

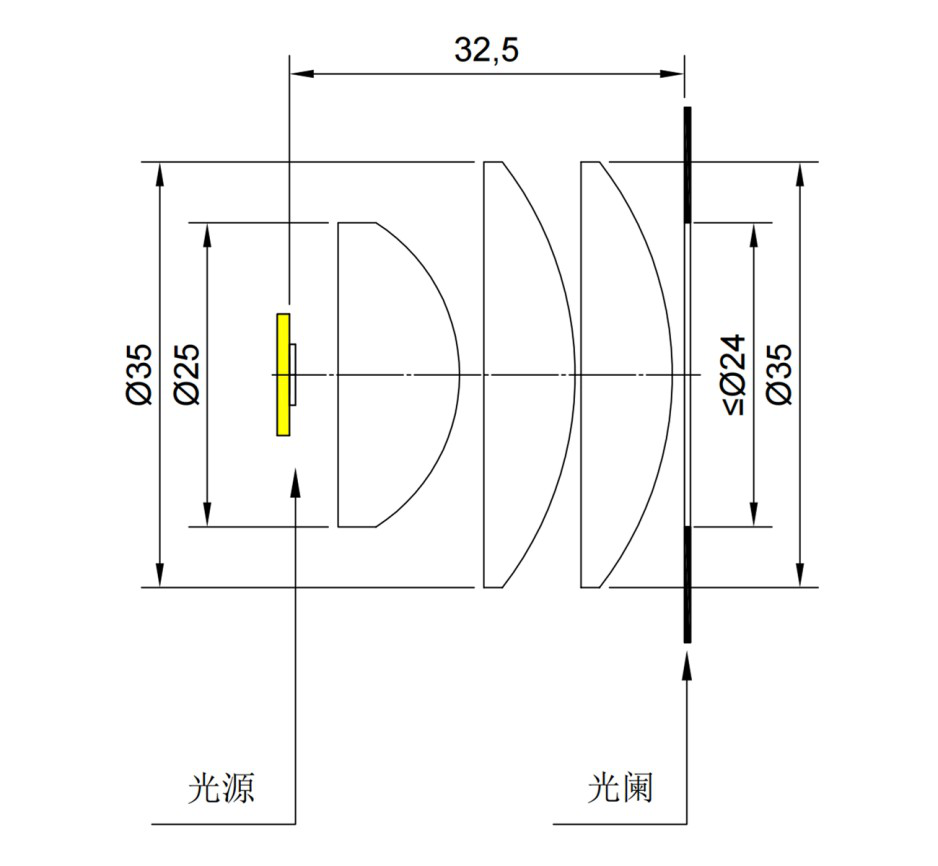

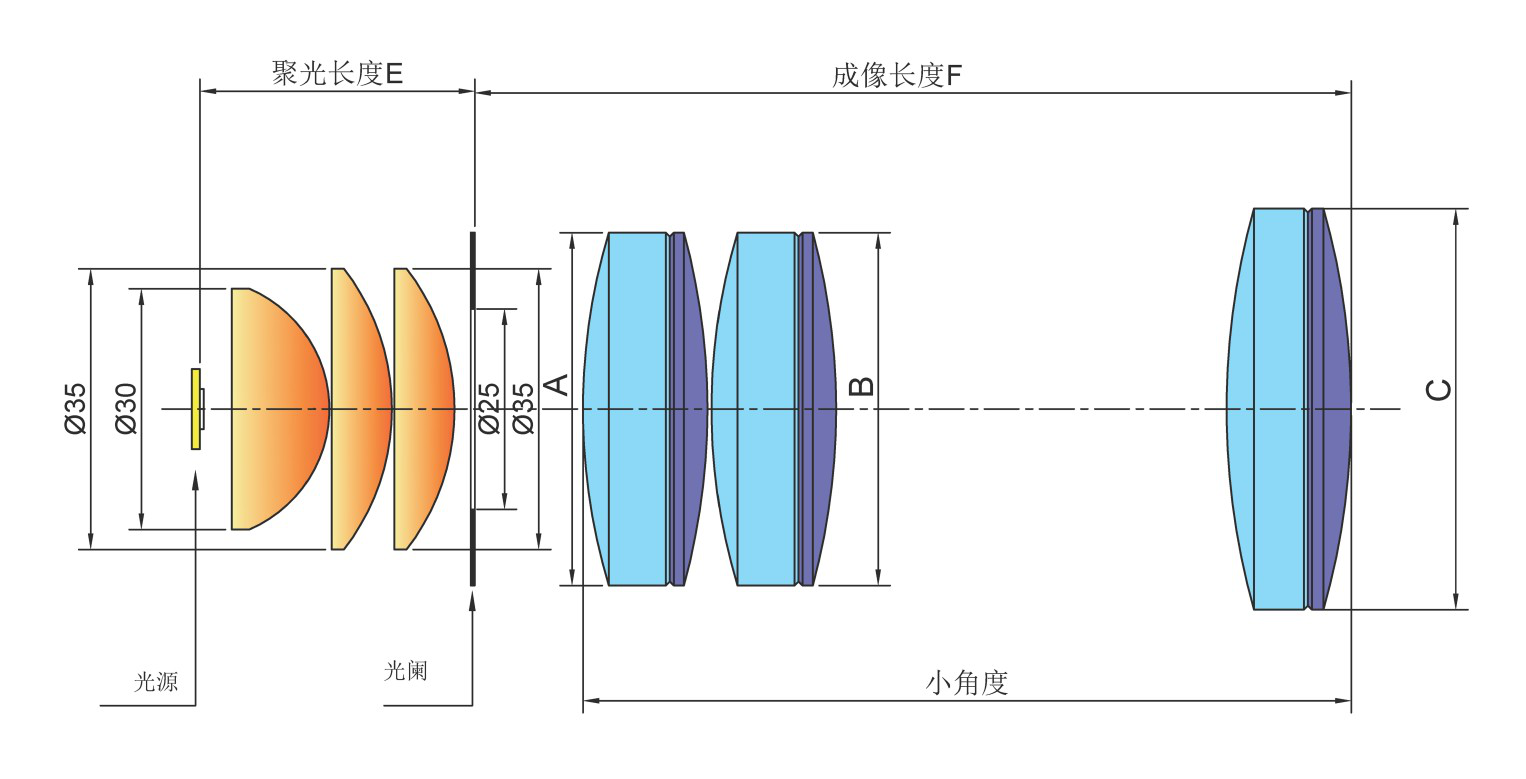

| Optical Path Diagram | Available for IMMDX3033, IMMDX3035, IMMDX253535, IMMDX303535 |
