IMM35S-F50

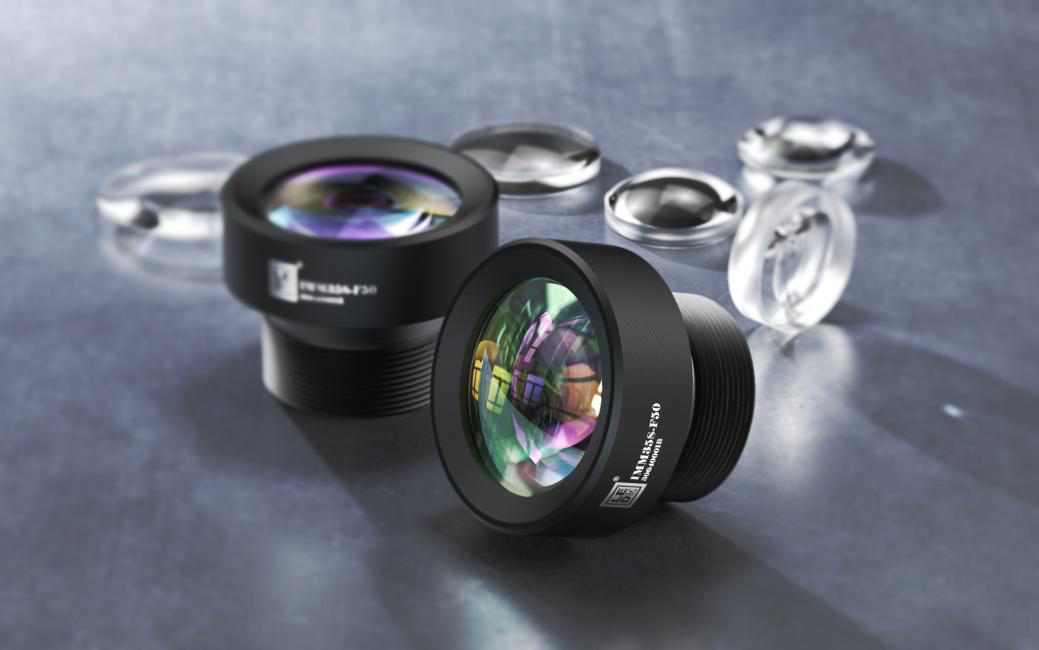

IMM35S-F50 is a high-definition fixed-focus projection lens designed for precision optical applications. It features a wide-angle 50° fixed focus, high transmittance, and multi-layer coating for enhanced image quality.
Save to Favorites
Overview
Specifications

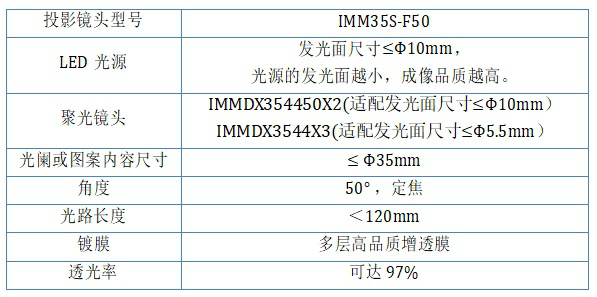

| Parameter | Value |
|---|---|
| Projection Lens Model | IMM35S-F50 |
| LED Light Source | Emission surface size ≤Φ10mm |

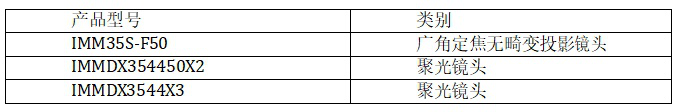

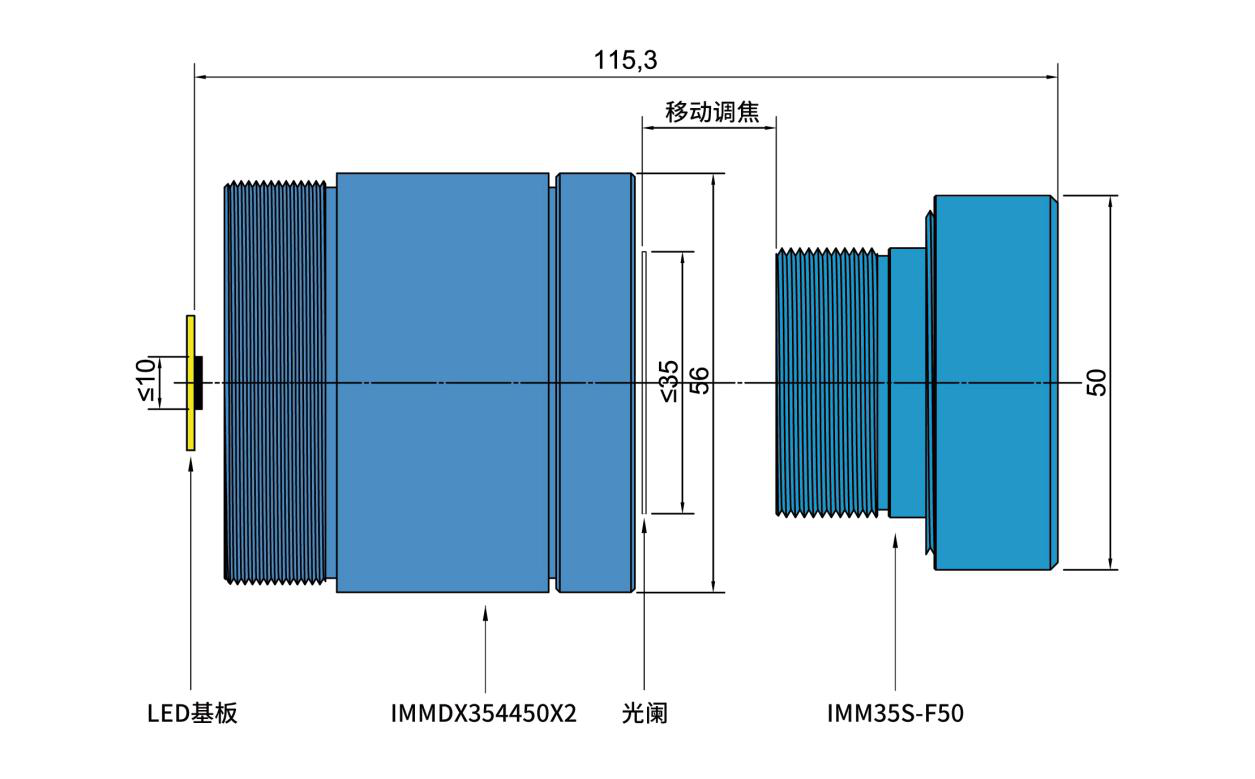

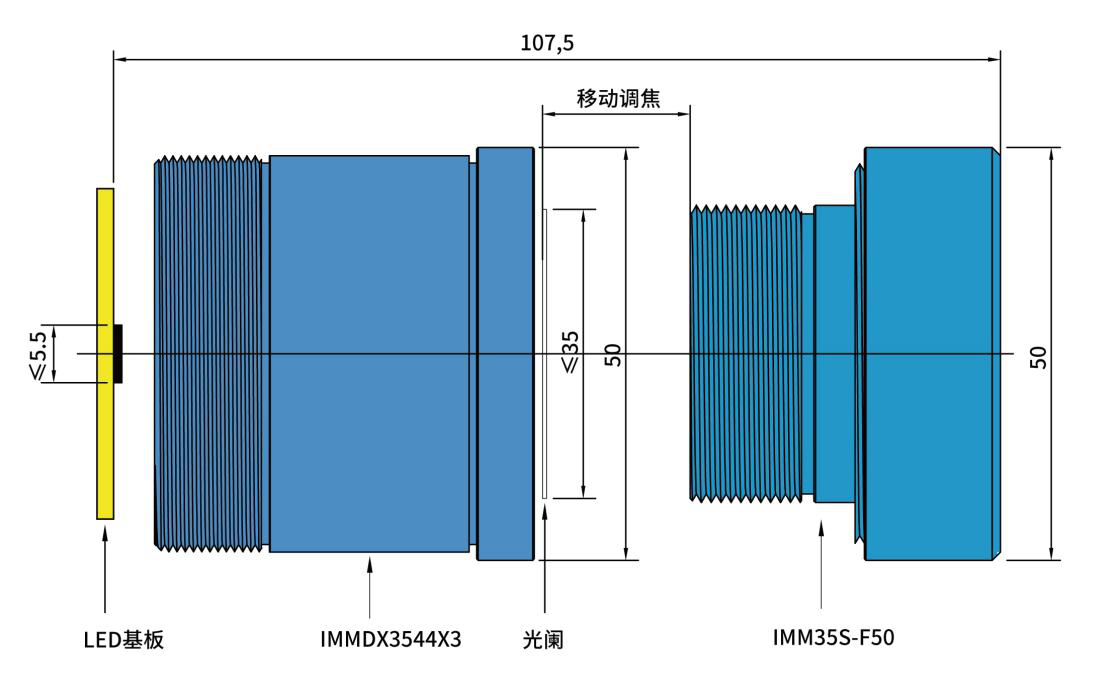

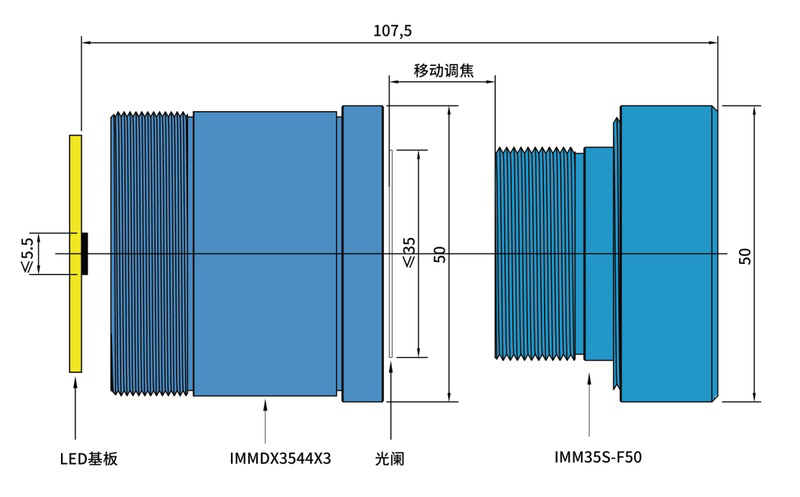

| Condensing Lens | IMMDX35450X2 (for emission surface size ≤Φ10mm), IMMDX3544X3 (for emission surface size ≤Φ5.5mm) |
| Aperture or Pattern Content Size | ≤Φ35mm |
| Angle | 50°, fixed focus |
| Optical Path Length | <120mm |
| Coating | Multi-layer high-quality coating |
| Transmittance | Up to 97% |
Applications
Key Features
Datasheet
