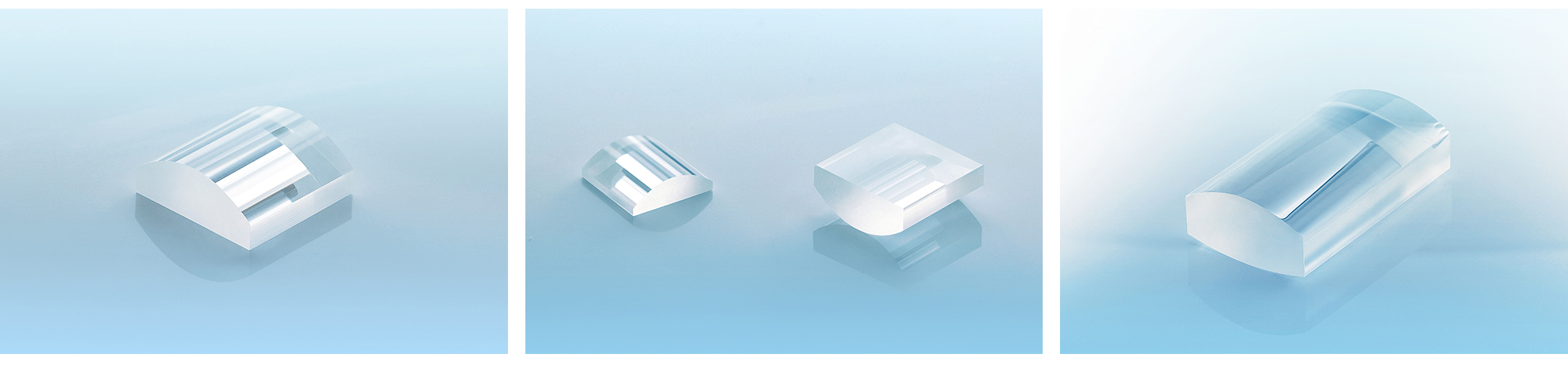

Cylindrical Lens
Cylindrical lenses are optical components designed to focus or expand light in a single dimension. They are widely used in laser systems, optical measurement, and imaging applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Optical glass |
| Surface Quality | 40-20 scratch-dig |
| Focal Length Range | 10mm to 1000mm |
| Dimension Tolerance | ±0.1mm |
| Surface Accuracy | λ/4 |
| Coating Options | AR coating |
| Coating Options | custom coatings available |
| Diameter Range | 5mm to 200mm |
Applications
Key Features
Datasheet
Supplier Information
