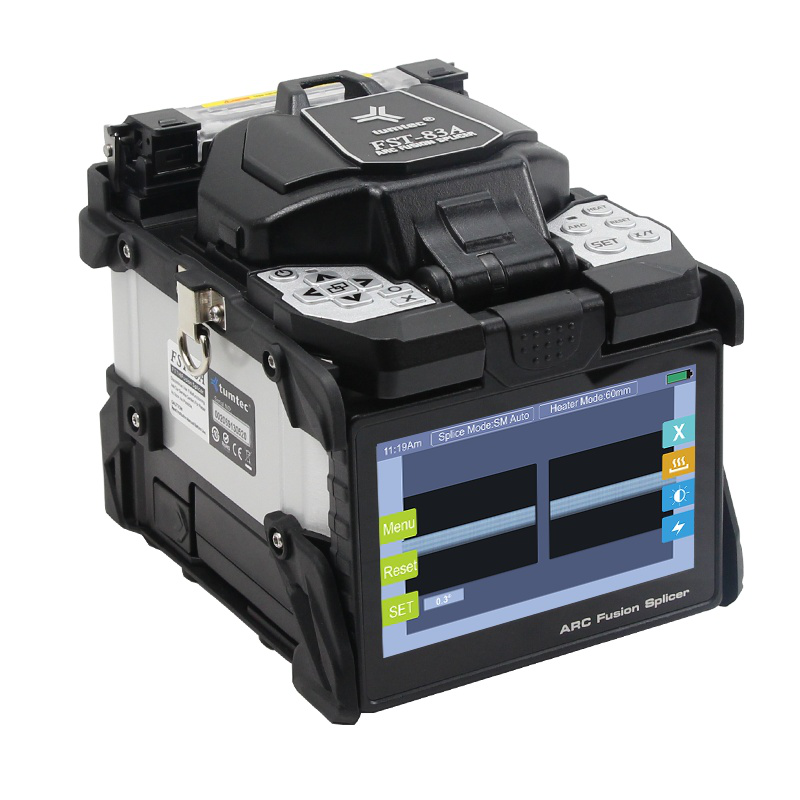

FST-83A Fusion Splicer
The FST-83A Fusion Splicer is a high-performance fiber optic splicing device designed for precise and efficient splicing of single fibers. It features advanced splicing modes, quick heating, and a high-resolution display for optimal user experience.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Model | FST-83A |
| Dimension | 136W×160L×148H (excluding rubber bumper) / 140W×165L×148H (including rubber bumper) |
| Weight | 2280G (with battery) / 1900G (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655) |
| Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable |
| Cleaved Length | Diameter: 0.125-1mm / Cleave Length: 8-16mm |
| Cladding Diameter | 80-150μm |
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (ITU-T Standard) |
| Return Loss | ≥60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode: 6s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20-60mm |
| Heating Time | Quick heating time: 13s, typical heating time: 30s |
| Results Storage | 20000 latest records & 200 images |
| Tension Test | 1.96-2.25N |
| Operating Condition | Operating Altitude: 0-5000m above sea level, 0-95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0-95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0" Color High Resolution Display |
| Fiber View & Magnification | X, Y, X/Y: 500X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| Battery Capacity/Heating Times | 5200mAh Battery Capacity, Typical 250 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5000 times |
| Terminal | Mini USB 2.0 |
