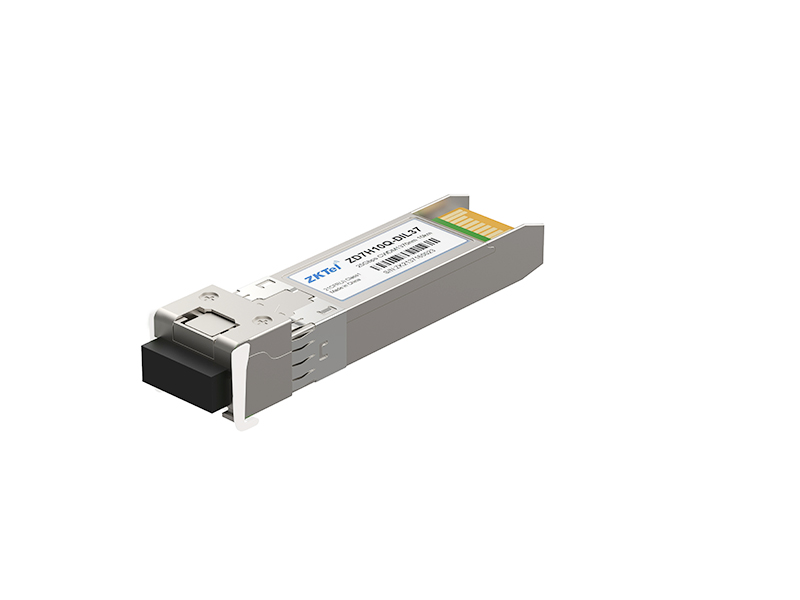

ZD1Wxx-SL27
The ZD1Wxx-SL27 is a high-performance optical transceiver module designed for efficient data transmission in telecommunication and data communication networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1270nm |
| Transmission Rate | 1.25Gbps |
| Transmission Distance | 20km |
| Interface Type | LC |
| Power Supply Voltage | 3.3V |
| Transmitter Power | -3~3dBm |
| Receiver Sensitivity | < -23dBm |
Applications
Key Features
Datasheet
