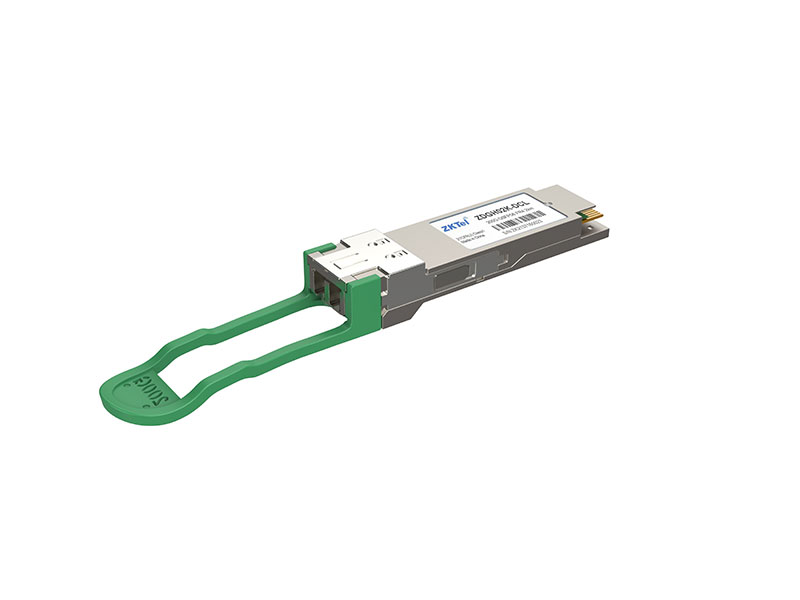

QSFP28-100G-LR4
The QSFP28-100G-LR4 is a high-performance optical transceiver module designed for 100G Ethernet applications. It provides reliable and efficient data transmission over long distances.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Transmission Distance | 10km |
| Data Rate | 100Gbps |
| Wavelength | 1295nm, 1300nm, 1304nm, 1309nm |
| Connector Type | LC duplex |
| Power Consumption | ≤3.5W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Sensitivity | -10.6dBm |
| Maximum Output Power | 4.5dBm |
| Fiber Type | Single-mode fiber (SMF) |
| Modulation Format | NRZ |
| Compliance | IEEE 802.3ba, SFF-8665, SFF-8636, RoHS |
| Bit Error Rate | 1E-12 |
