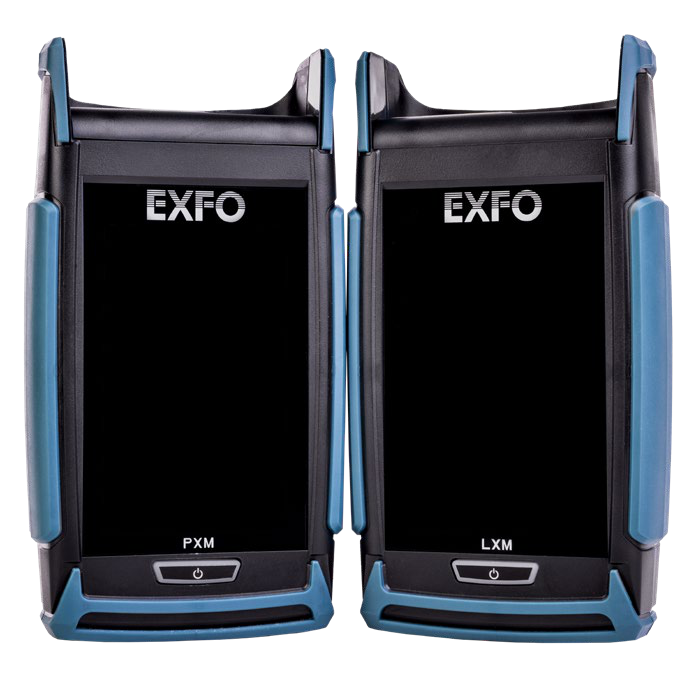

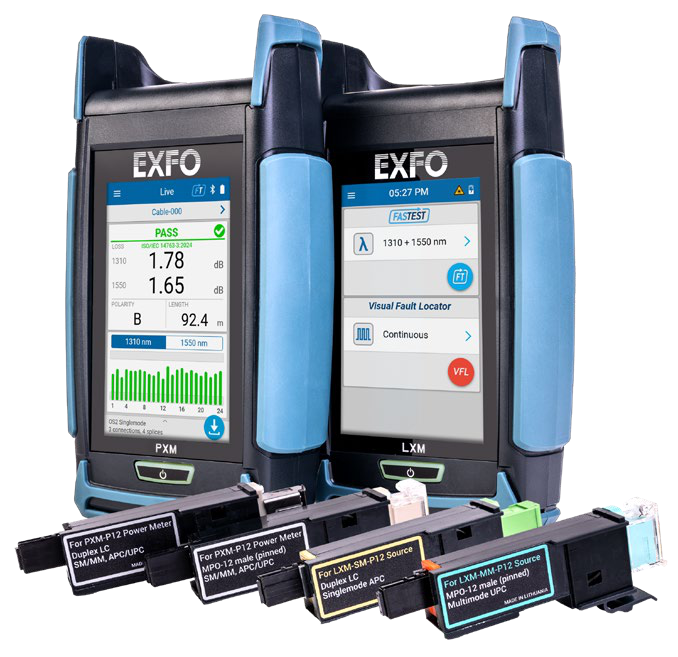

PXM/LXM Duplex and Multi-Fiber Optical Loss Test Set (OLTS)

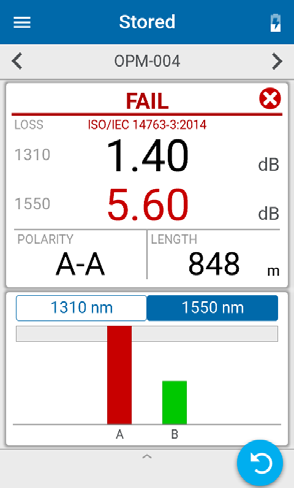

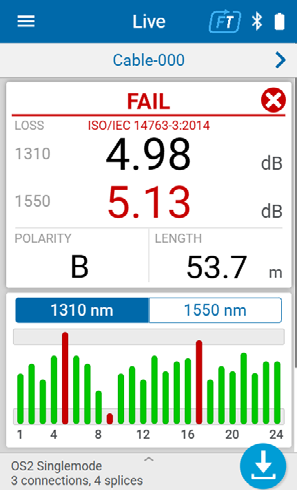

The PXM/LXM is a full-featured duplex and multi-fiber power meter and light source with the industry's fastest test speeds. It supports Tier-1 duplex and multi-fiber certification with loss, polarity, and length measurement, along with onboard certification standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

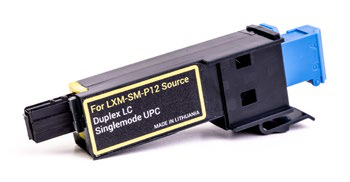

| Optical Connector | Standard: Contactless MPO-12 male (pinned), supporting both APC and UPC. Connector with protective shutter. P12/P24 models: Click-Out adapter interface (pinned & unpinned). |
| Detector Type | InGaAs |
| Power Measurement Range (dBm) | 5 to -45 |
| Power Uncertainty (dB) | ±0.35 |
| Linearity (dB) | ±0.01 |
| Display Resolution (dB) | 0.01 |
| Wavelength Measurement Range (nm) | 850 to 1550 |
| Calibrated Wavelengths (nm) | 850, 1300, 1310, 1550 |
| Tone Detection | 270Hz, 330Hz, 1kHz, 2kHz |
| Auto-Wavelength Recognition and Switching | Yes |
| Length Measurement | Up to 25km depending on conditions with singlemode and 1km with multimode |
| Storage Capacity | 10,000 measurements at two wavelengths |
| Warranty (year) | 1 |
| Calibration Interval (Years) | 3 |
| Emitter type | Laser |
| Wavelength (nm) | 1310±20, 1550±20 |
| Output Power (dBm) | ≥-13/≥-12 |
| Stability (dB) | ±0.1 |
| Warm-up Time (minutes) | 15 |
| Tone Generation | 270Hz, 330Hz, 1kHz, 2kHz |
| Laser Type | 635±10 |
| Modulation | CW, 1Hz, 4Hz |
| Typical Power Output (mW) | ≤0.4 |
| Display | 4-in touchscreen |
| Display Type | Color display with capacitive touchscreen |
| Size (H×W×D) | 171mm×93mm×48mm |
| Weight (with battery) | 0.5kg |
| Interfaces | Bluetooth 5.1 with Bluetooth Low Energy (BLE) |
| Data Management | EXFO Exchange |
| Data Management | FastReporter or USB connection |

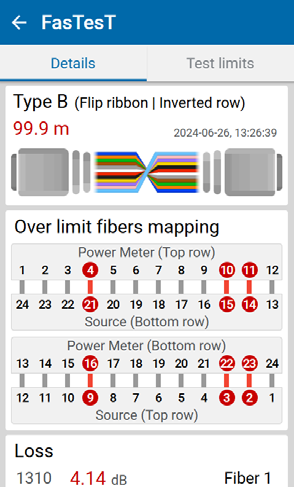

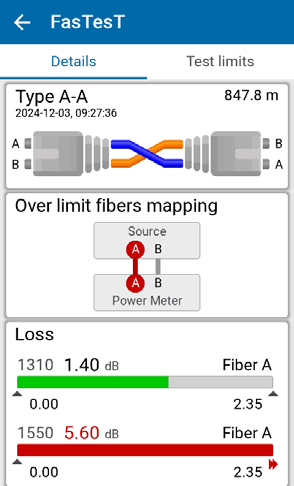

| Test Speed | Loss and polarity measurement for MPO-12 cable at 2 wavelengths in 1 second |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 60°C |
