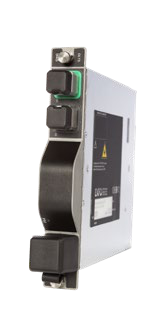

FTBx-945 Fiber Certifier OLTS
The FTBx-945 Fiber Certifier OLTS is a fully featured Tier-1 certifier designed for data center and enterprise Tier-1 fiber certification. It offers fast and accurate fiber certification with automated processes, onboard assistance, and professional reporting.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Connector | Interchangeable adapter (LC, SC or FC) |
| Detector Type | InGaAs |
| Uncertainty | ±(5% + 32pW) |
| Measurement Range (dBm) | 5 to -75 |
| Calibrated Wavelengths (nm) | 850, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1383, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Output Power (dBm) Multimode | -25 |
| Output Power (dBm) Singlemode | 2.5 |
| Output Power Stability (dB) | ±0.05 over 8h |
| Spectral Width (FWHM) 850nm | 30 to 60 |
| Spectral Width (FWHM) 1300nm | 100 to 150 |
| Testing Speed | FaSTest™ Duplex: 3 seconds (two wavelengths, one direction, automated, IL + fiber length); FaSTest™ Simplex: 5 seconds (two wavelengths, bidirectional, automated, IL + ORL + fiber length) |
| Input/Output Connectors | Interchangeable adapter (LC, SC or FC) |
| Wavelengths (nm) MM (LED) | 850±20, 1300±20 |
| Launch Condition | EF compliance guaranteed at multimode source port within TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 Encircled Flux template limits at the end of an EXFO reference-grade 50/125μm test cord |
| Length Measurement Range (km) Multimode | 20 |
| Length Measurement Range (km) Singlemode | 200 |
| Length Measurement Uncertainty | ±(0.5m + 0.5% × length) |
| ORL Measurement Range (dB) | 50 |
| ORL Measurement Uncertainty (dB) | ±1 |
| Size (H×W×D) | 158mm×25mm×196mm (6 1/4in×1in×7 3/4in) |
| Weight | 0.4kg (0.9lb) |
| Temperature Operating | 0°C to 50°C (32°F to 122°F) |
| Temperature Storage | -30°C to 70°C (-22°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Calibration Interval (Years) | 3 |
| Warranty (year) | 1 |
