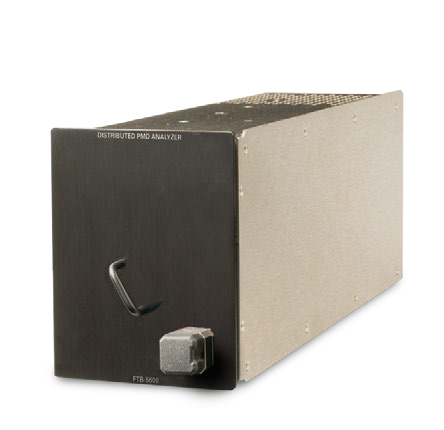

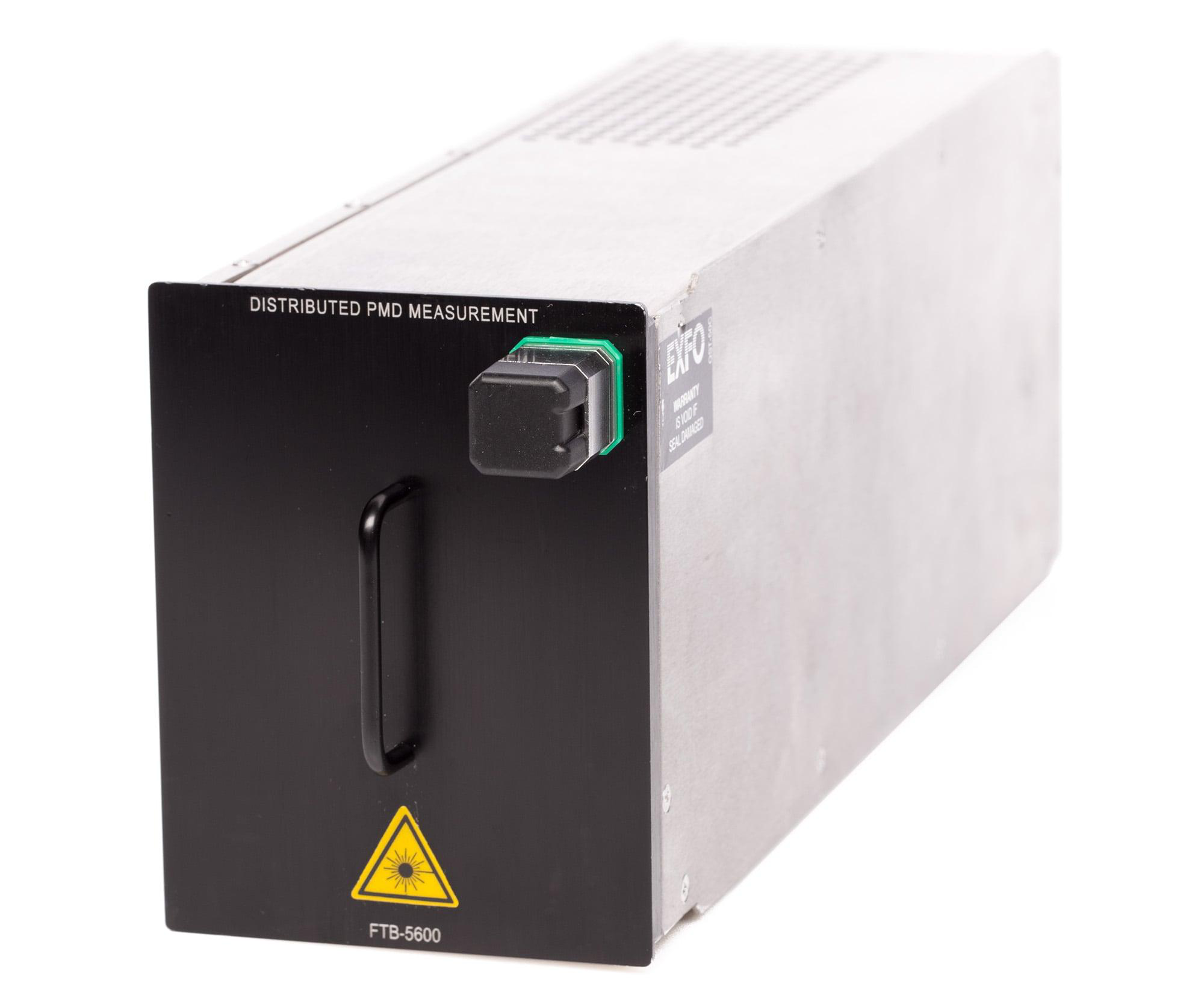

FTB-5600 Distributed PMD Analyzer

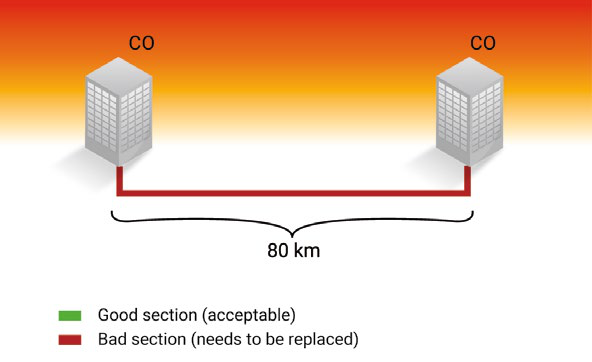

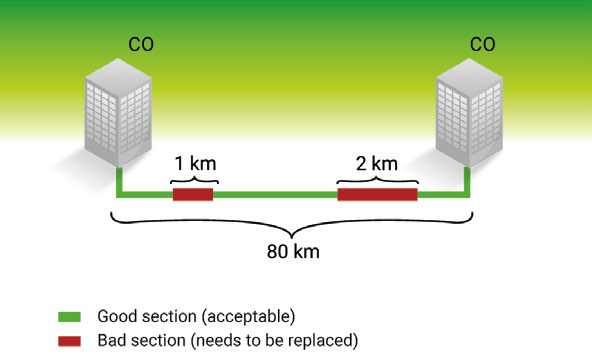

The FTB-5600 Distributed PMD Analyzer is a cutting-edge tool designed for polarization mode dispersion (PMD) measurement, enabling network operators to identify and address faulty fiber sections efficiently. It simplifies PMD assessment and helps optimize fiber infrastructure for high-speed data transmission.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1520 to 1580 |
| Maximum Cumulative PMD (ps) | ≥20 |
| Minimum Measurable Cumulative PMD (ps) | 0.1 |
| Cumulative PMD Uncertainty (ps) | ±(0.1+5%×PMD) |
| PMD Dynamic Range (dB) | 15 |
| Distance Uncertainty (OTDR) (m) | ±10⁴ |
| Size (H×W×D) | 96mm×75mm×281mm (3¾in×3in×11in) |
| Weight | 2kg (4.4lb) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 93% non-condensing |
