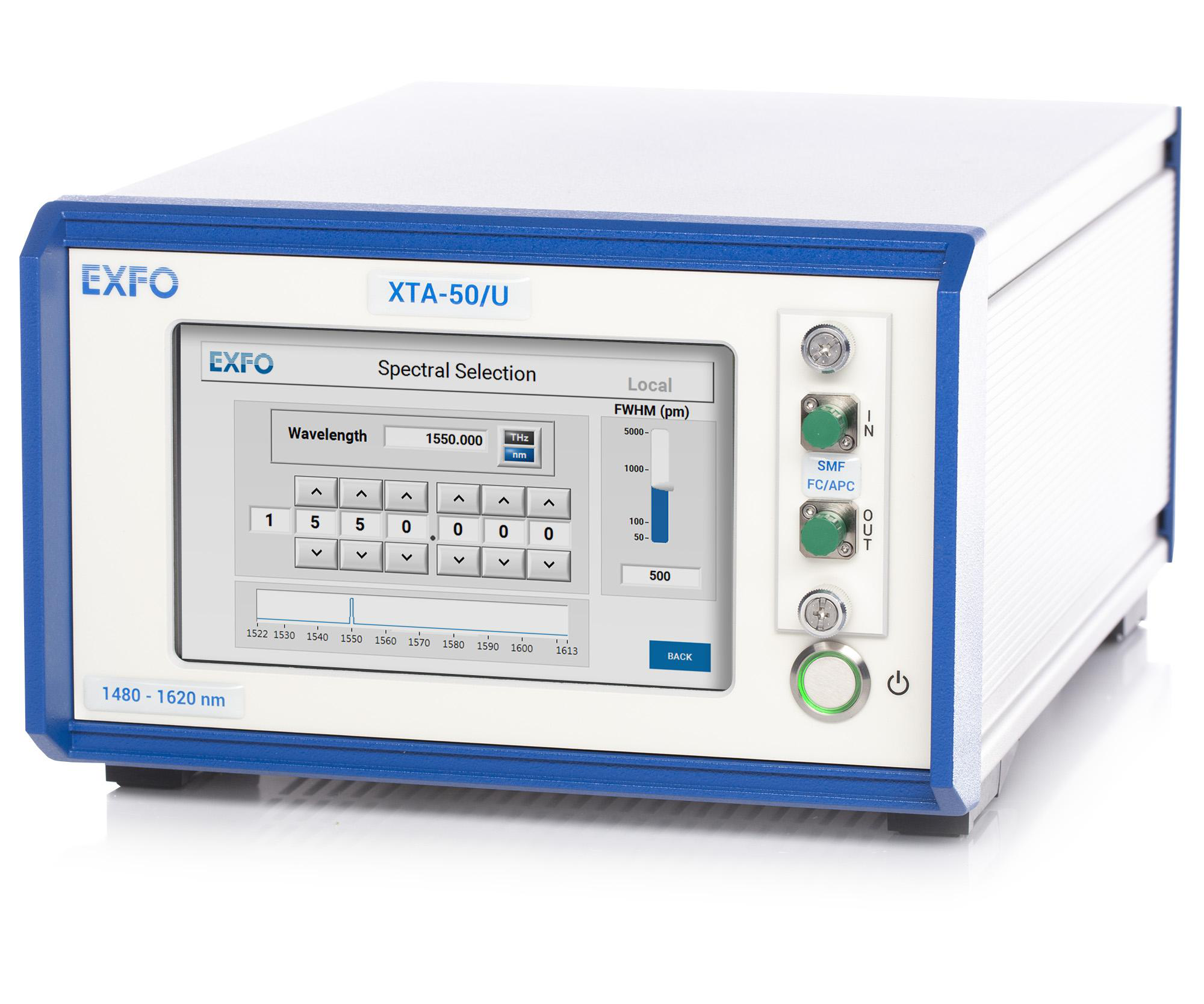

XTA-50
The XTA-50 is an electronically controlled tunable filter with adjustable bandwidth, allowing precise and independent settings for center wavelength and bandwidth.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) XTA-50 standard | 1450-1650 |
| Wavelength Range (nm) XTA-50 ultrafine | 1480-1620 |
| Wavelength Range (nm) XTA-50 O-band | 1260-1360 |
| Wavelength Range (nm) XTA-50 wide | 1525-1610 |
| Wavelength Resolution (pm) | 1 |
| Wavelength Accuracy (pm) | ±30 |
| Wavelength Tuning Speed (s) | 1 |
| Minimum Bandwidth (FWHM) XTA-50 standard | 50pm (6.25GHz) |
| Minimum Bandwidth (FWHM) XTA-50 ultrafine | 32pm (4GHz) |
| Minimum Bandwidth (FWHM) XTA-50 O-band | 50pm (8GHz) |
| Minimum Bandwidth (FWHM) XTA-50 wide | 50pm (6.25GHz) |
| Maximum Bandwidth (FWHM) XTA-50 standard | 950pm (120GHz) |
| Maximum Bandwidth (FWHM) XTA-50 ultrafine | 650pm (80GHz) |
| Maximum Bandwidth (FWHM) XTA-50 O-band | 900pm (160GHz) |
| Maximum Bandwidth (FWHM) XTA-50 wide | 5000pm (625GHz) |
| Bandwidth Resolution (pm) | 1 |
| Bandwidth Tuning Speed (s) | 1 |
| Filter Edge Roll-off (dB/nm) XTA-50 standard | 500 (typical) |
| Filter Edge Roll-off (dB/nm) XTA-50 ultrafine | 800 (typical) |
| Filter Edge Roll-off (dB/nm) XTA-50 O-band | 500 (typical) |
| Filter Edge Roll-off (dB/nm) XTA-50 wide | 500 (typical) |
| Insertion Loss (dB) XTA-50 standard | 5 (4.5dB typical) |
| Insertion Loss (dB) XTA-50 ultrafine | 5 (4.0dB typical) |
| Insertion Loss (dB) XTA-50 O-band | 5 (4.5dB typical) |
| Insertion Loss (dB) XTA-50 wide | 5 (4.5dB typical) |
| Flatness (dB) | 0.2 (typical) |
| Polarization Dependent Loss (dB) | ±0.2 |
| Out-of-band Suppression (Crosstalk) | 40dB (60dB typical) |
| Display | 7-inch resistive touch-screen (resolution 800x480) |
| Communication Interfaces | USB-B, Ethernet |
| Display and Other Interfaces | HDMI, display port, USB-A 3.2 (x3), USB-A 2.0 (x1) |
| Optical Fiber Type | SMF or PMF |
| Connector Type | FC/PC or FC/APC |
| Operating Temperature Range (°C) | 15-35 |
| Maximum Optical Input Power (dBm) | 30 |
| Dimensions (WxHxD mm) | 254x385x154 |
| Weight | 6.5kg (14.33lb) |
