FiberBasix 50 Handheld Testers

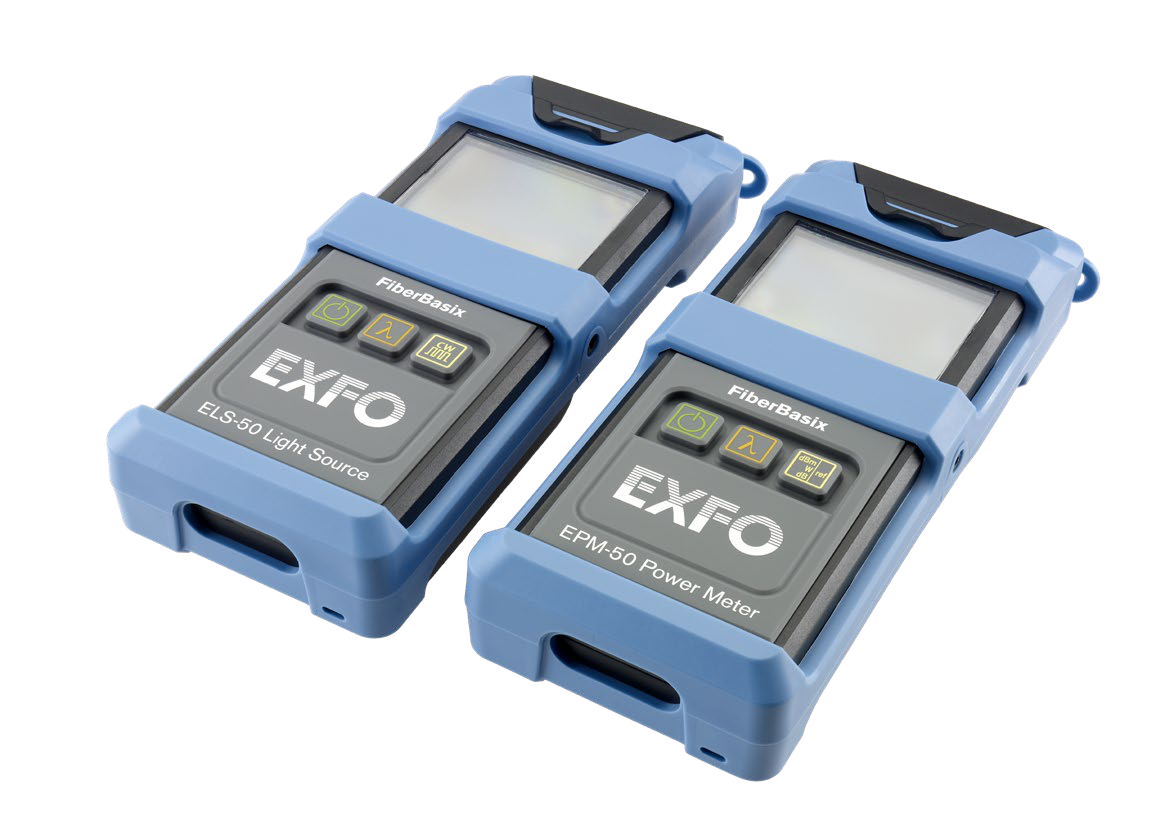

FiberBasix 50 handheld testers provide simple and accurate measurement of signal attenuation during fiber-optic cable installation. The series includes the ELS-50 Light Source and EPM-50 Power Meter, offering multiwavelength capability and high accuracy for testing and troubleshooting optical premises networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central Wavelength (nm) 23BL | 1310±20, 1550±20 |
| Central Wavelength (nm) 235BL | 1310±20, 1490±10, 1550±20 |
| Central Wavelength (nm) 12C | 850±25, 1300±50 |
| Spectral Width (nm) 23BL | ≤5 |
| Spectral Width (nm) 235BL | ≤5 |
| Spectral Width (nm) 12C | ≤40/120 |
| Output Power (dBm) 23BL | ≥-5 |
| Output Power (dBm) 235BL | ≥-5 |
| Output Power (dBm) 12C | ≥-24 (50/125μm) |
| Power Stability (dB) 23BL | ±0.10 |
| Power Stability (dB) 235BL | ±0.10 |
| Power Stability (dB) 12C | ±0.10 |
| Battery Life (hours) | ≥300 |
| Tone Generation (Hz) | 270,1k,2k |
| Warranty (year) | 1 |
| Power Meter Port | InGaAs |
| Power Range (dBm) EPM-53 | 10 to -60 |
| Power Range (dBm) EPM-53X | 26 to -50 |
| Number of Calibrated Wavelengths | 5 |
| Power Uncertainty | ±5% |
| Resolution (dB) | 0.01 |
| Display Units | dB/dBm/W |
| Tone Detection (Hz) | 270,1k,2k |
| Size (HxWxD) | 189mmx78mmx37mm |
| Weight | 0.4kg |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Power Supply | 3AA alkaline batteries |
