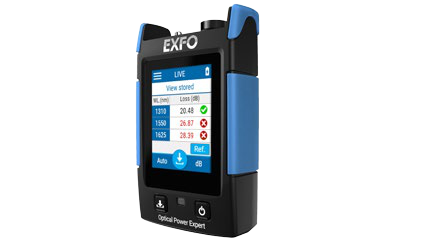

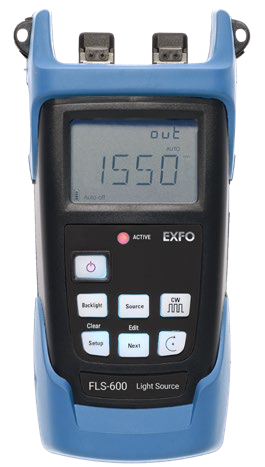

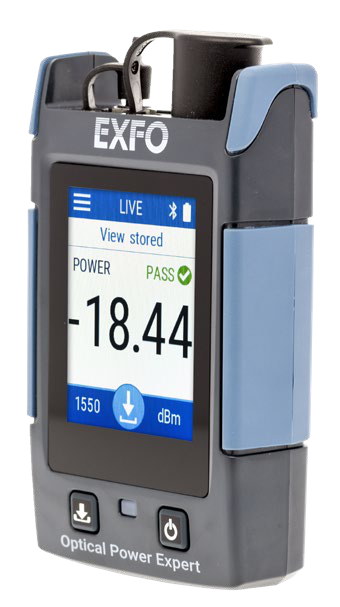

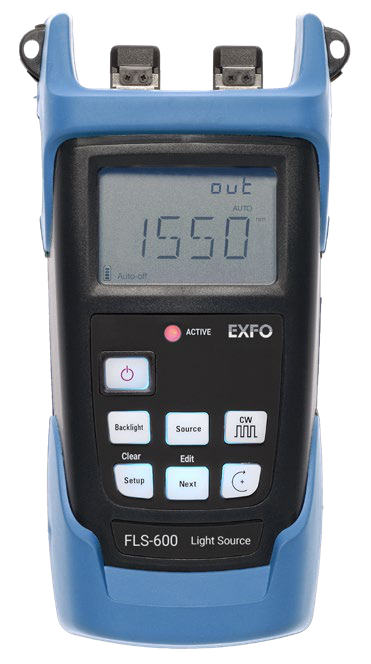

FLS-600 Light Source and Optical Power Expert PRO
The FLS-600 Light Source and Optical Power Expert PRO are advanced optical testing tools designed for efficient field testing and troubleshooting of fiber optic networks. The FLS-600 offers versatile wavelength options and controlled multimode launching output, while the Optical Power Expert PRO provides high-accuracy power measurement and insertion loss testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central Wavelength (nm) 12D | 850±25, 1300±50/-20 |
| Central Wavelength (nm) 23BL | 1310±20, 1550±20 |
| Central Wavelength (nm) 234BL | 1310±20, 1550±20, 1625±15 |
| Central Wavelength (nm) 235BL | 1310±20, 1490±10, 1550±20 |
| Spectral Width (nm) 12D | 50/135 |
| Spectral Width (nm) 23BL | ≤5 |
| Spectral Width (nm) 234BL | ≤5 |
| Spectral Width (nm) 235BL | ≤5 |
| Output Power (dBm) 12D | ≥-20/-20 (62.5/125μm) |
| Output Power (dBm) 23BL | ≥1/-1 |
| Output Power (dBm) 234BL | ≥1/≥-5 |
| Output Power (dBm) 235BL | ≥1/≥-4.5/-3 |
| Power Stability (dB) 12D | ±0.05, ±0.1 |
| Power Stability (dB) 23BL | ±0.03, ±0.1 |
| Power Stability (dB) 234BL | ±0.03, ±0.1 |
| Power Stability (dB) 235BL | ±0.03, ±0.1 |
| Auto-Switching | Yes |
| Tone Generation | 270Hz, 1kHz, 2kHz |
| Battery Life (hours) | 50 |
| Warranty (years) | 3 |
| Recommended Calibration Interval (years) | 3 |
| Size (H×W×D) | 190mm×100mm×62mm |
| Weight | 0.48kg |
| Temperature range | -10°C to 50°C (Operating), -40°C to 70°C (Storage) |
| Relative Humidity | 0% to 95% non-condensing |
