NS-XY200Z15-01
The NS-XY200Z15-01 is a high-precision XYZ motion stage designed for applications requiring accurate positioning and stability. It features a capacitive sensor type and is constructed with aluminum alloy for durability.
Save to Favorites
Overview

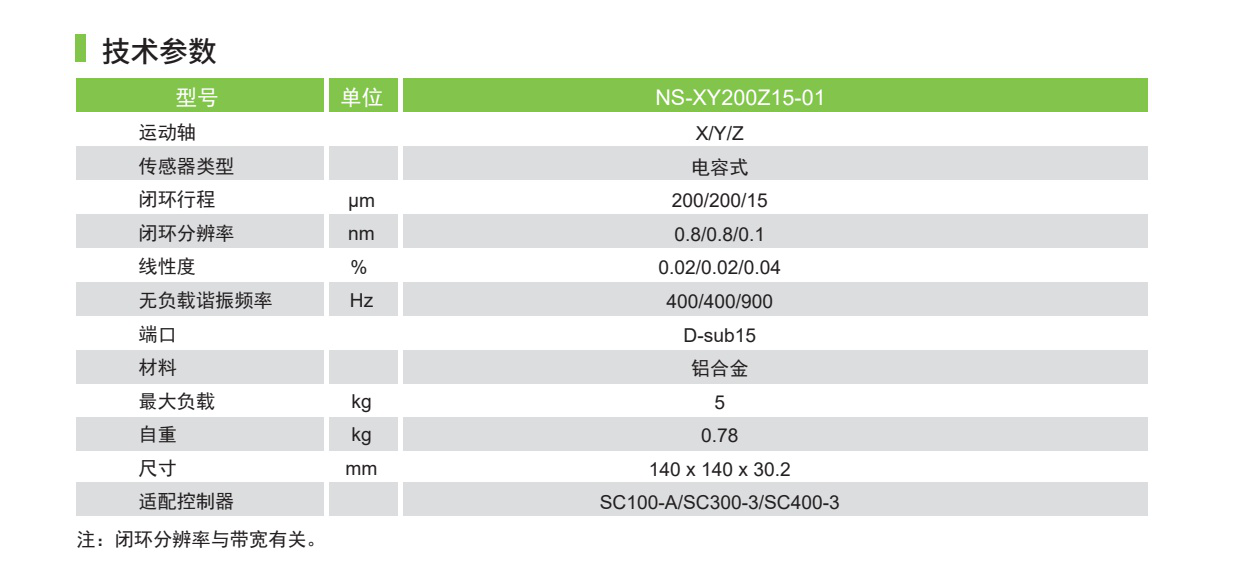

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 200/200/15 |
| Closed-loop Resolution (nm) | 0.8/0.8/0.1 |
| Linearity (%) | 0.02/0.02/0.04 |
| No-load Resonant Frequency (Hz) | 400/400/900 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 5 |
| Weight (kg) | 0.78 |

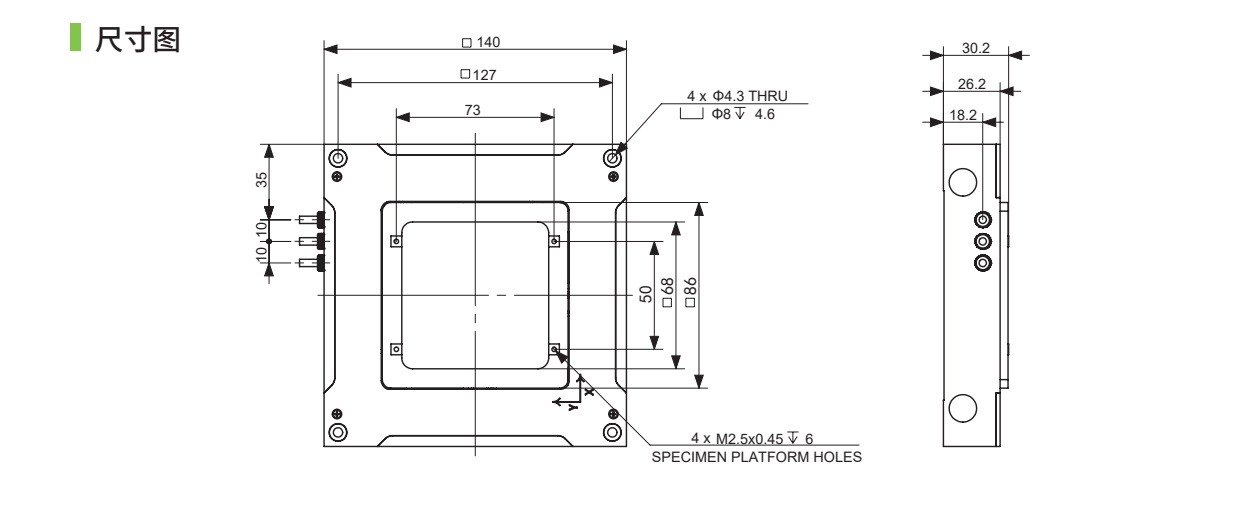

| Dimensions (mm) | 140x140x30.2 |
| Compatible Controller | SC100-A/SC300-3/SC400-3 |
