NS-XY100-03
The NS-XY100-03 is a high-precision XY-axis motion platform designed for applications requiring capacitive sensors and ultra-fine resolution. It is compact, lightweight, and made of aluminum alloy, making it suitable for various precision control scenarios.
Save to Favorites
Overview
Specifications

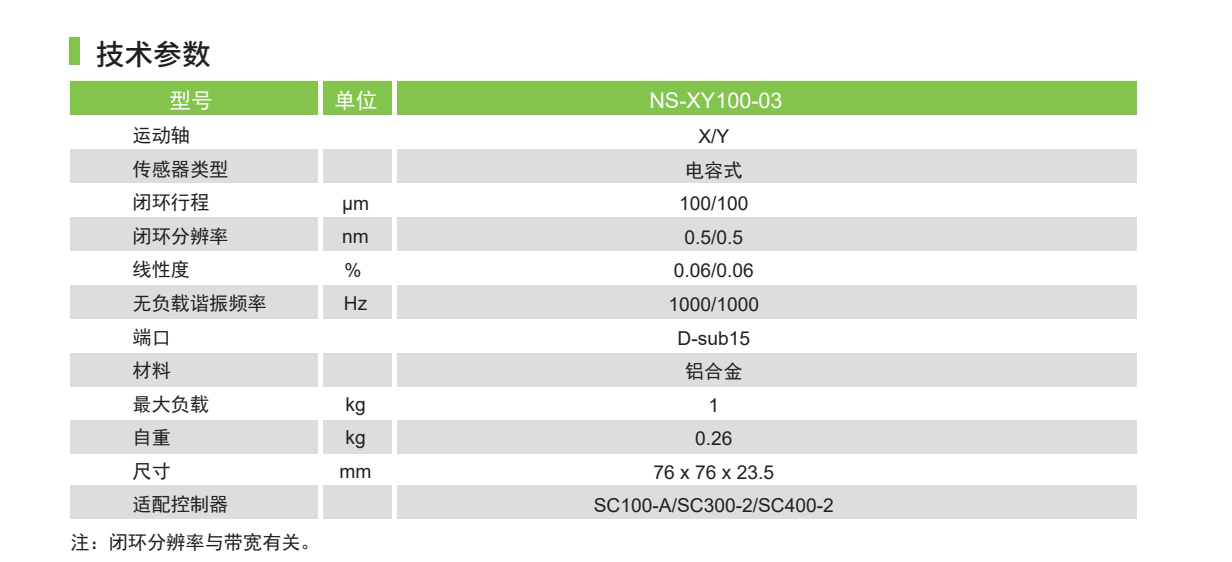

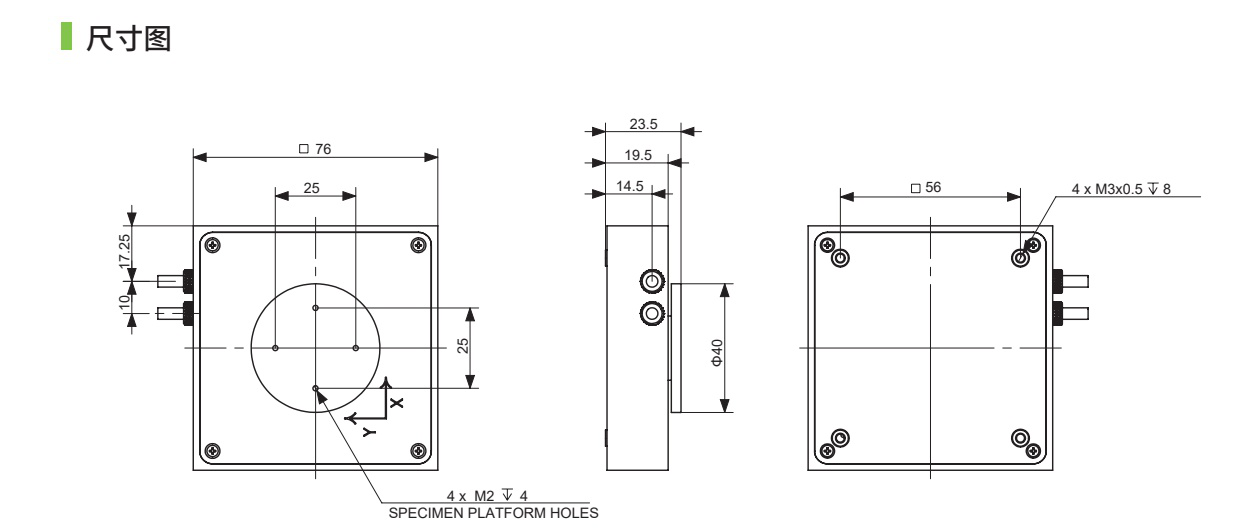

| Parameter | Value |
|---|---|
| Motion Axis | XY |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100/100 |
| Closed-loop Resolution (nm) | 0.5/0.5 |
| Linearity (%) | 0.06/0.06 |
| No-load Resonant Frequency (Hz) | 1000/1000 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 1 |
| Self Weight (kg) | 0.26 |
| Dimensions (mm) | 76×76×23.5 |
| Compatible Controllers | SC100-A/SC300-2/SC400-2 |
