PPX-50 Piezoelectric Motor Stage
PPX-50 is a high-precision piezoelectric motor stage designed for applications requiring ultra-fine positioning and stability.
Save to Favorites
Overview
Specifications

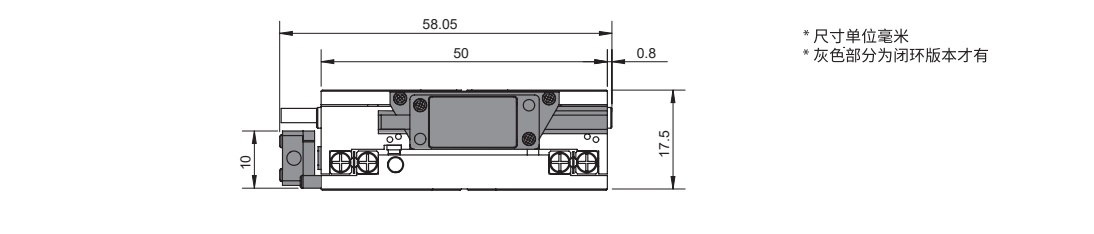

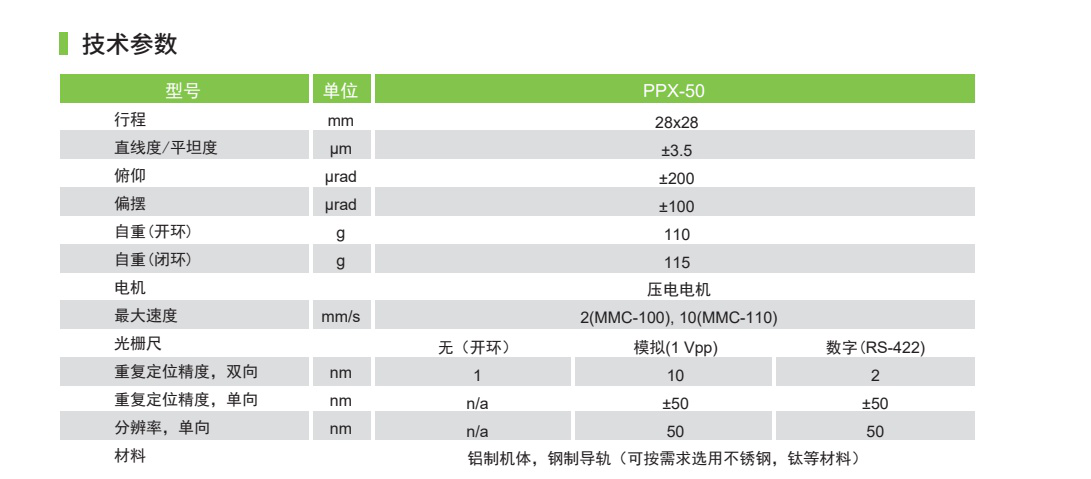

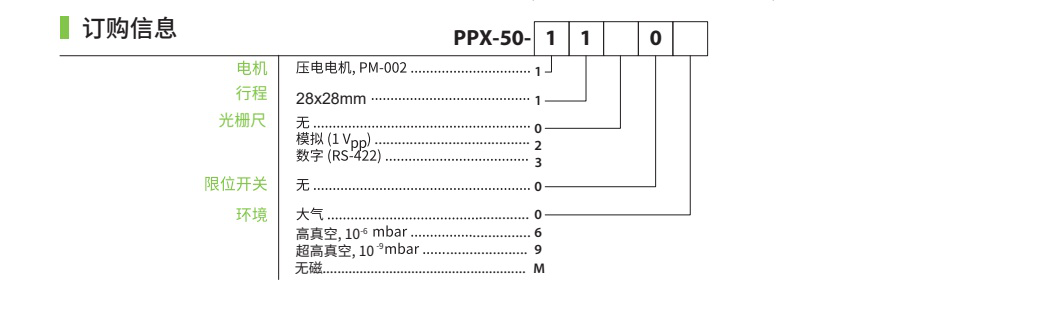

| Parameter | Value |
|---|---|
| Travel Range(mm) | 28x28 |
| Straightness/Flatness(μm) | ±3.5 |
| Pitch(μrad) | ±200 |
| Yaw(μrad) | ±100 |
| Weight (Open Loop)(g) | 110 |
| Weight (Closed Loop)(g) | 115 |
| Motor | Piezoelectric Motor |
| Max Speed(mm/s) | 2(MMC-100), 10(MMC-110) |
| Grating Scale | None (Open Loop), Analog (1Vpp), Digital (RS-422) |
| Repeatability, Bidirectional(nm) | 1, 10 |
| Repeatability, Unidirectional(nm) | n/a, ±50 |
| Resolution, Unidirectional(nm) | 50 |
| Material | Aluminum body, steel guide rail (optional stainless steel or other materials) |

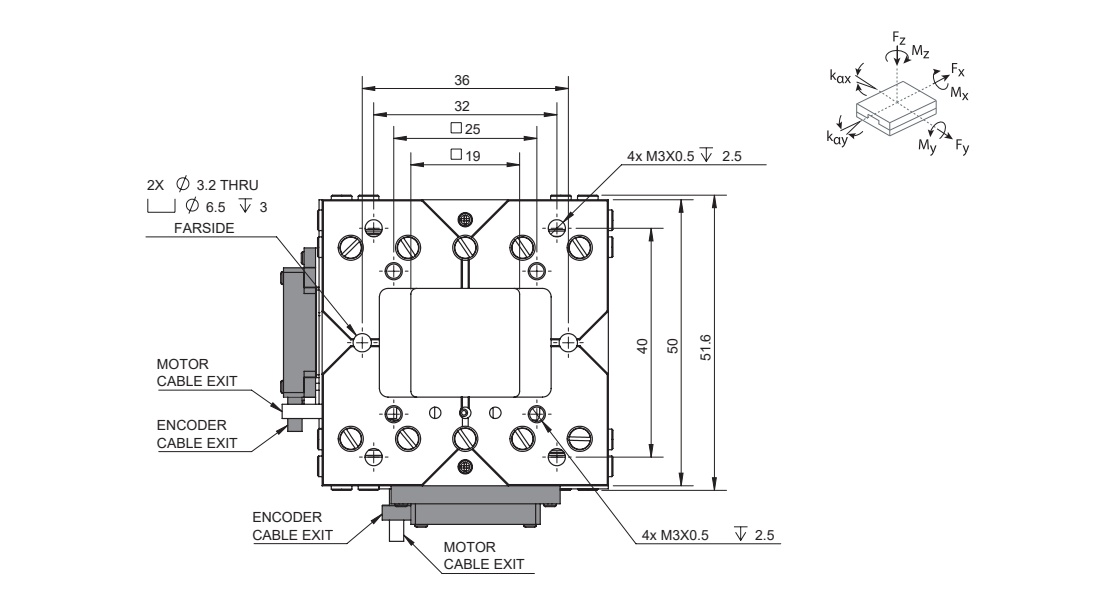

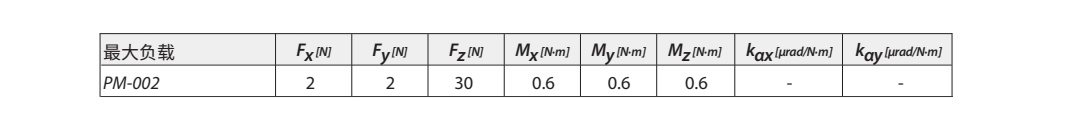

| 最大负载Fx[N] | 2 |
| 最大负载Fy[N] | 2 |
| 最大负载Fz[N] | 30 |
| 最大负载Mx[N·m] | 0.6 |
| 最大负载My[N·m] | 0.6 |
| 最大负载Mz[N·m] | 0.6 |
| 最大负载kαx[μrad/N·m] | - |
| 最大负载kαy[μrad/N·m] | - |
