PPS-20 Precision Stage
The PPS-20 is a high-precision piezoelectric stage designed for applications requiring ultra-fine positioning and stability.
Save to Favorites
Overview
Specifications

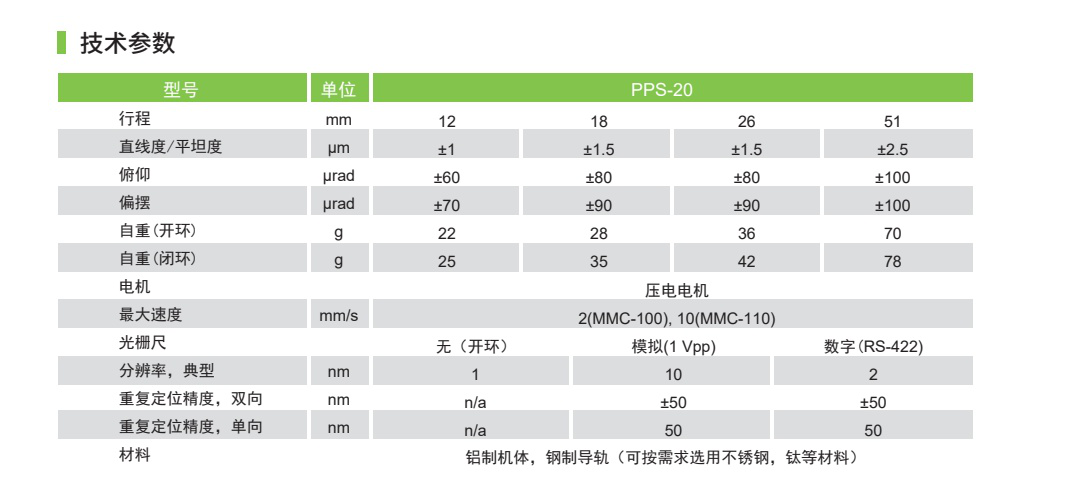

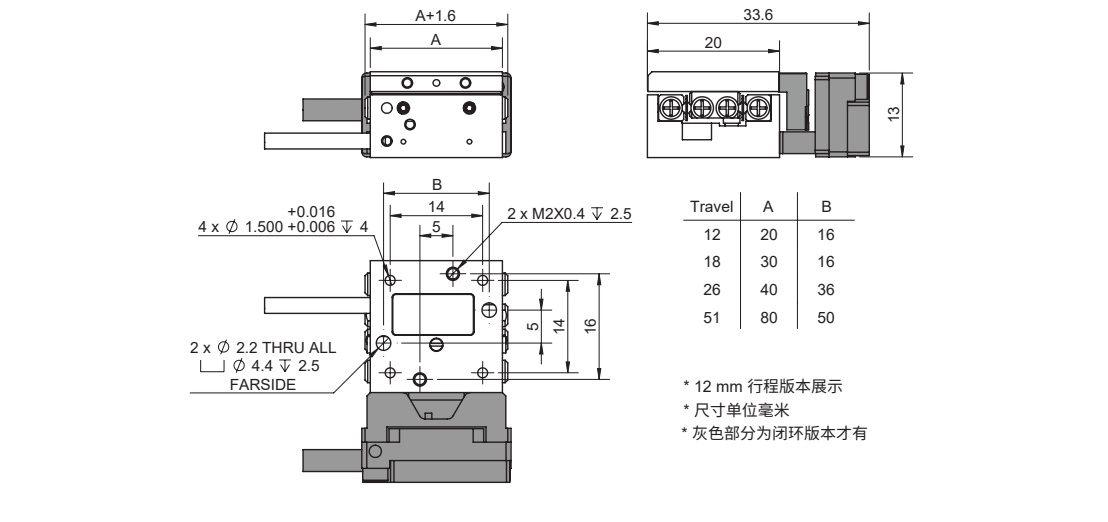

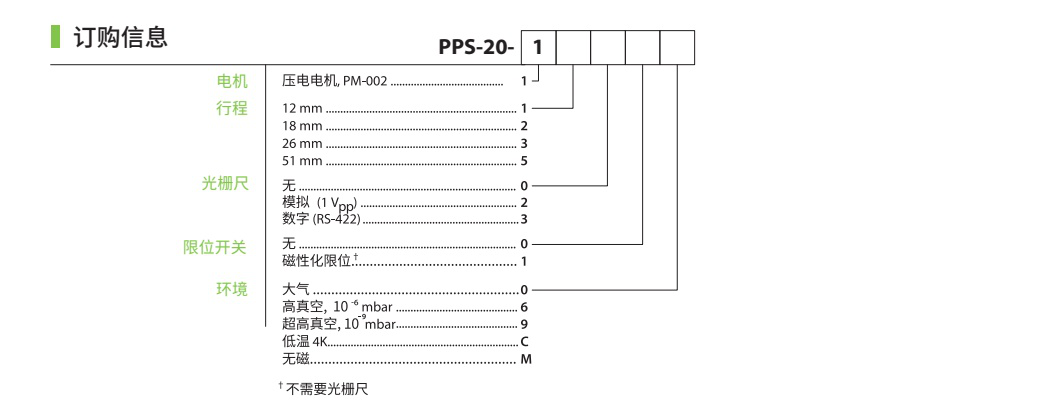

| Parameter | Value |
|---|---|
| Travel (mm) PPS-20-12 | 12mm |
| Travel (mm) PPS-20-18 | 18mm |
| Travel (mm) PPS-20-26 | 26mm |
| Travel (mm) PPS-20-51 | 51mm |
| Straightness/Flatness (μm) PPS-20-12 | ±1μm |
| Straightness/Flatness (μm) PPS-20-18 | ±1.5μm |
| Straightness/Flatness (μm) PPS-20-26 | ±1.5μm |
| Straightness/Flatness (μm) PPS-20-51 | ±2.5μm |
| Yaw (μrad) PPS-20-12 | ±70 |
| Yaw (μrad) PPS-20-18 | ±90 |
| Yaw (μrad) PPS-20-26 | ±90 |
| Yaw (μrad) PPS-20-51 | ±100 |
| Weight (Open Loop) (g) PPS-20-12 | 22g |
| Weight (Open Loop) (g) PPS-20-18 | 28g |
| Weight (Open Loop) (g) PPS-20-26 | 36g |
| Weight (Open Loop) (g) PPS-20-51 | 70g |
| Weight (Closed Loop) (g) PPS-20-12 | 25g |
| Weight (Closed Loop) (g) PPS-20-18 | 35g |
| Weight (Closed Loop) (g) PPS-20-26 | 42g |
| Weight (Closed Loop) (g) PPS-20-51 | 78g |
| Maximum Speed (mm/s) PPS-20-12 | 2(MMC-100), 10(MMC-110)mm/s |
| Maximum Speed (mm/s) PPS-20-18 | 2(MMC-100), 10(MMC-110)mm/s |
| Maximum Speed (mm/s) PPS-20-26 | 2(MMC-100), 10(MMC-110)mm/s |
| Maximum Speed (mm/s) PPS-20-51 | 2(MMC-100), 10(MMC-110)mm/s |
| Encoder | None (Open Loop), Analog (1Vpp), Digital (RS-422) |
| Resolution (nm) PPS-20-12 | 1nm |
| Resolution (nm) PPS-20-18 | 10nm |
| Resolution (nm) PPS-20-26 | 10nm |
| Resolution (nm) PPS-20-51 | 2nm |
| Repeatability (Bidirectional) (nm) PPS-20-12 | n/a |
| Repeatability (Bidirectional) (nm) PPS-20-18 | ±50nm |
| Repeatability (Bidirectional) (nm) PPS-20-26 | ±50nm |
| Repeatability (Bidirectional) (nm) PPS-20-51 | ±50nm |
| Repeatability (Unidirectional) (nm) PPS-20-12 | n/a |
| Repeatability (Unidirectional) (nm) PPS-20-18 | 50nm |
| Repeatability (Unidirectional) (nm) PPS-20-26 | 50nm |
| Repeatability (Unidirectional) (nm) PPS-20-51 | 50nm |

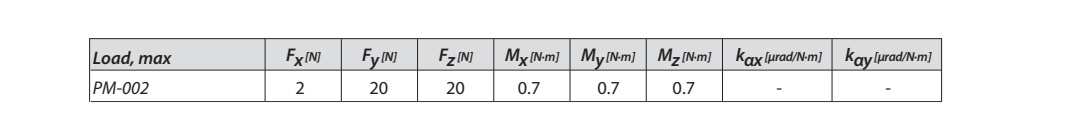

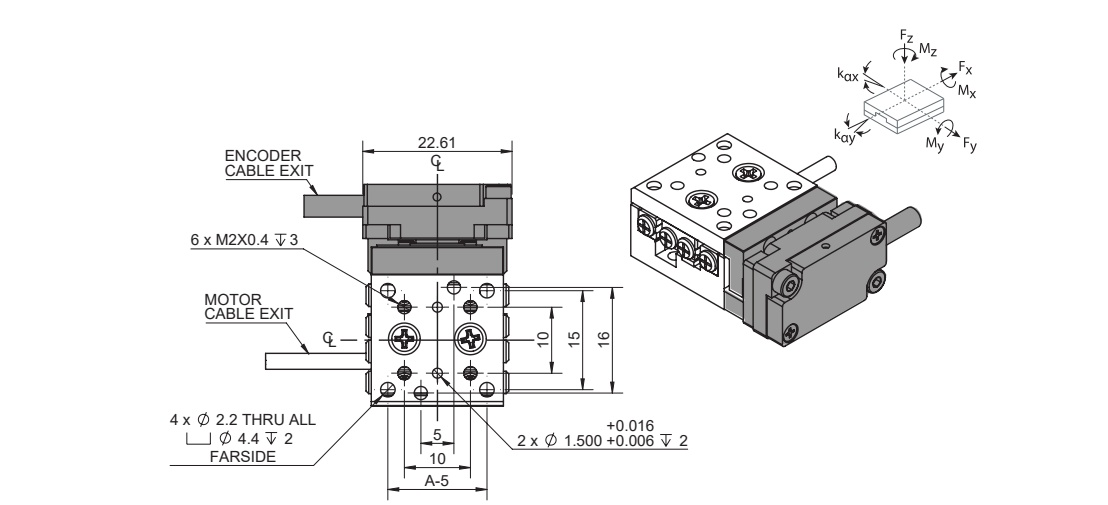

| Maximum load Fx (N) | 2N |
| Maximum load Fy (N) | 20N |
| Maximum load Fz (N) | 20N |
| Maximum Load Mx (N·m) | 0.7N·m |
| Maximum Load My (N·m) | 0.7N·m |
| Maximum Load Mz (N·m) | 0.7N·m |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Z-Axis Vertical Lift Stage
Motorized Platform
Cnbhc
Travel: 5mm Accuracy (EC): <350nm Accuracy (Base): <250nm
The REI_V series nano vertical lift stage is a standardized, modular, wedge-type high-precision vertical lift platform. Driven by coreless linear motors with precision crossed-roller guidance, it combines speed, accuracy, system resolution, bi-directional repeatability, reliability and compact size. As a derivative of the REI series, it delivers the same motion performance as the REI_LM series and is the ideal Z-axis choice for space-constrained applications. The non-contact direct drive offers high dynamic performance, zero cogging, sub-nanometer resolution, extremely low velocity ripple, high speed and high accuracy; the stage features zero backlash and near-zero system hysteresis, enabling precise, highly repeatable nanometer-level motion as well as extremely low-speed smooth motion.
-
