ETSF系列电动滑台
ETSF系列电动滑台采用铝合金材质，表面经过阳极氧化发黑处理，具有高精度 and 高稳定性，适用于精密定位 and 自动化Equipment。
Save to Favorites
Overview
Specifications

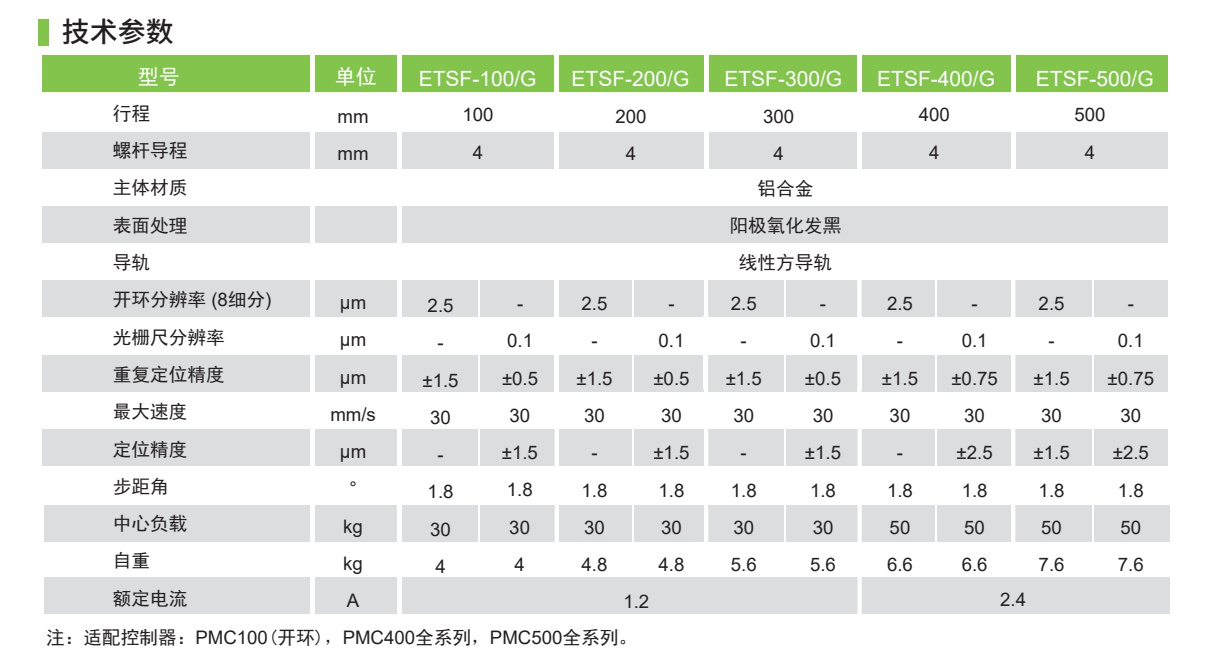

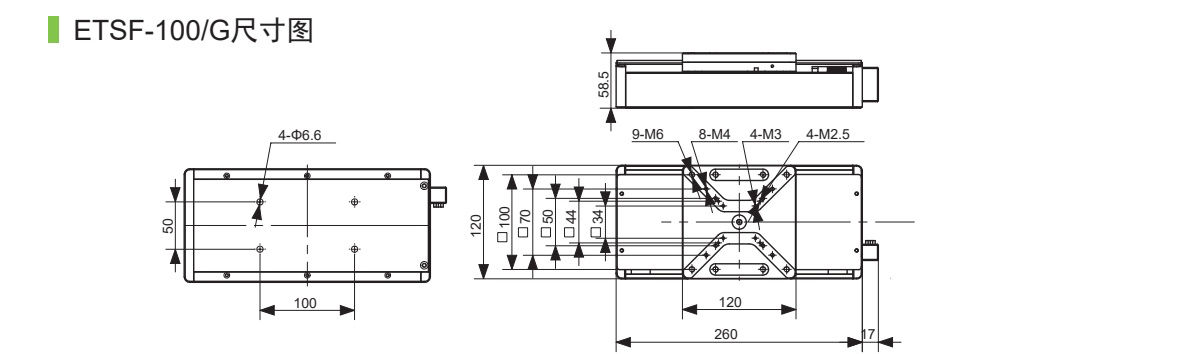

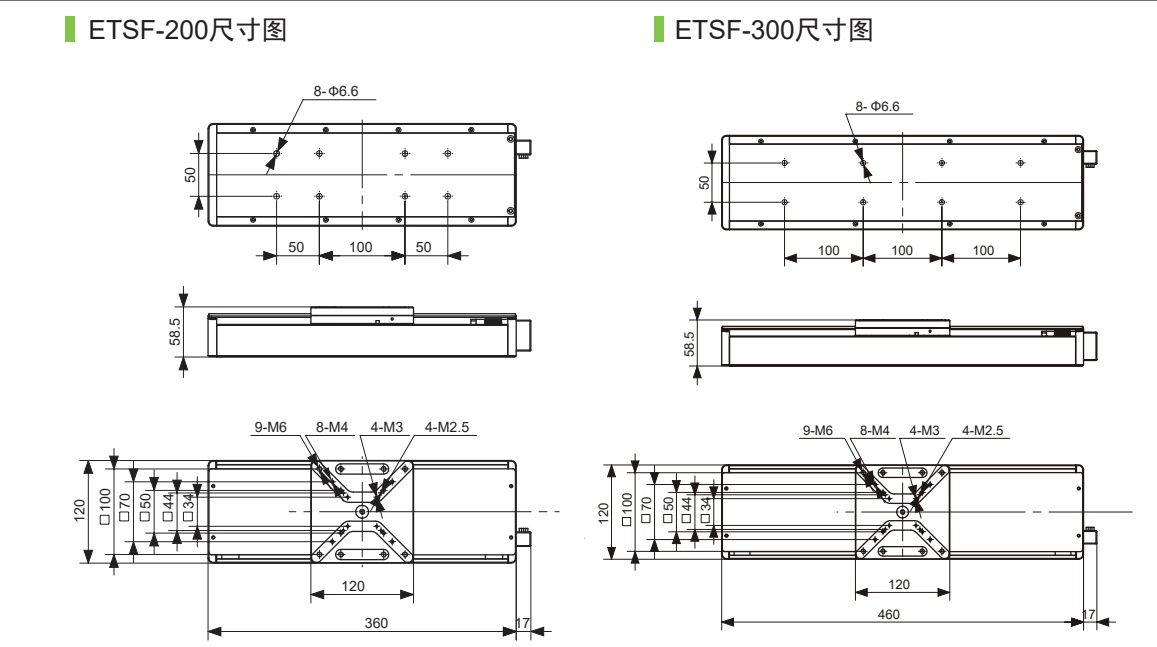

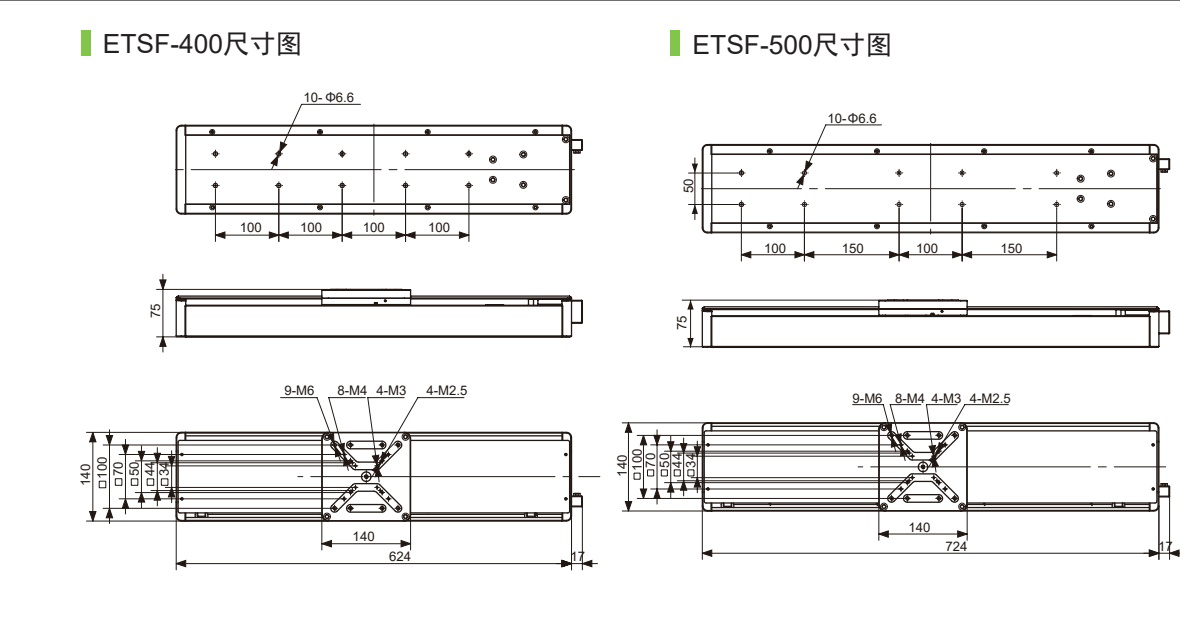

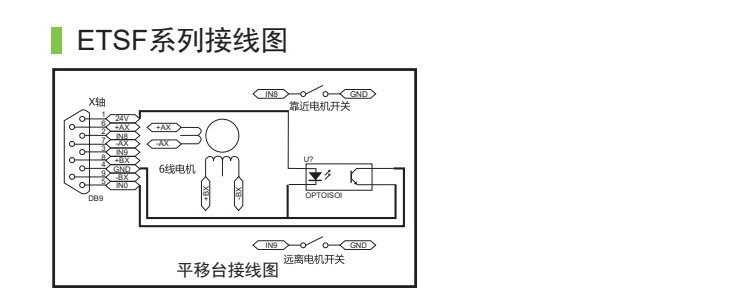

| Parameter | Value |
|---|---|
| Stroke ETSF-100/G | 100mm |
| Stroke ETSF-200/G | 200mm |
| Stroke ETSF-300/G | 300mm |
| Stroke ETSF-400/G | 400mm |
| Stroke ETSF-500/G | 500mm |
| Screw Lead ETSF-100/G | 4mm |
| Screw Lead ETSF-200/G | 4mm |
| Screw Lead ETSF-300/G | 4mm |
| Screw Lead ETSF-400/G | 4mm |
| Screw Lead ETSF-500/G | 4mm |
| Main Material | 铝合金 |
| Surface Treatment | 阳极氧化发黑 |
| Guide Rail | 线性方导轨 |
| Open Loop Resolution (8 Subdivisions) ETSF-100/G | 2.5μm |
| Open Loop Resolution (8 Subdivisions) ETSF-200/G | 2.5μm |
| Open Loop Resolution (8 Subdivisions) ETSF-300/G | 2.5μm |
| Open Loop Resolution (8 Subdivisions) ETSF-400/G | 2.5μm |
| Open Loop Resolution (8 Subdivisions) ETSF-500/G | 2.5μm |
| Grating Resolution ETSF-100/G | 0.1μm |
| Grating Resolution ETSF-200/G | 0.1μm |
| Grating Resolution ETSF-300/G | 0.1μm |
| Grating Resolution ETSF-400/G | 0.1μm |
| Grating Resolution ETSF-500/G | 0.1μm |
| Repeat Positioning Accuracy ETSF-100/G | ±1.5μm |
| Repeat Positioning Accuracy ETSF-200/G | ±1.5μm |
| Repeat Positioning Accuracy ETSF-300/G | ±1.5μm |
| Repeat Positioning Accuracy ETSF-400/G | ±0.75μm |
| Repeat Positioning Accuracy ETSF-500/G | ±0.75μm |
| Max Speed ETSF-100/G | 30mm/s |
| Max Speed ETSF-200/G | 30mm/s |
| Max Speed ETSF-300/G | 30mm/s |
| Max Speed ETSF-400/G | 30mm/s |
| Max Speed ETSF-500/G | 30mm/s |
| Positioning Accuracy ETSF-100/G | ±1.5μm |
| Positioning Accuracy ETSF-200/G | ±1.5μm |
| Positioning Accuracy ETSF-300/G | ±1.5μm |
| Positioning Accuracy ETSF-400/G | ±1.5μm |
| Positioning Accuracy ETSF-500/G | ±2.5μm |
| Step Angle ETSF-100/G | 1.8° |
| Step Angle ETSF-200/G | 1.8° |
| Step Angle ETSF-300/G | 1.8° |
| Step Angle ETSF-400/G | 1.8° |
| Step Angle ETSF-500/G | 1.8° |
| Center Load ETSF-100/G | 30kg |
| Center Load ETSF-200/G | 30kg |
| Center Load ETSF-300/G | 30kg |
| Center Load ETSF-400/G | 50kg |
| Center Load ETSF-500/G | 50kg |
| Weight ETSF-100/G | 4kg |
| Weight ETSF-200/G | 4kg |
| Weight ETSF-300/G | 4.8kg |
| Weight ETSF-400/G | 6.6kg |
| Weight ETSF-500/G | 7.6kg |
| Rated Current ETSF-100/G | 1.2A |
| Rated Current ETSF-200/G | 1.2A |
| Rated Current ETSF-300/G | 2.4A |
| Rated Current ETSF-400/G | 2.4A |
| Rated Current ETSF-500/G | 2.4A |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
XY Alignment Stage
Motorized Platform
Shxinglong
: 300X300mm : 75mm
-
XY Alignment Stage
Motorized Platform
Shxinglong
: 300X300mm : 75mm
-
XY Linear Stage
Motorized Platform
Shxinglong
: 120-Q : 120-T : 8.9N
-
Three-Axis Cross-Roller Linear Motor Module
Motorized Platform
Shxinglong
: Series linear motor : Series linear motor : Series linear motor
-
Cross-Roller Lift Linear Motor Module
Motorized Platform
Shxinglong
: Series linear motor : 17N : 90N
