ERUA200 & ERUA300 Direct Drive Rotary Table
The ERUA200 and ERUA300 are high-precision direct drive rotary tables designed for applications requiring accurate positioning and smooth rotation. These tables feature advanced optical encoder feedback systems and are suitable for various industrial and scientific applications.
Save to Favorites
Overview
Specifications

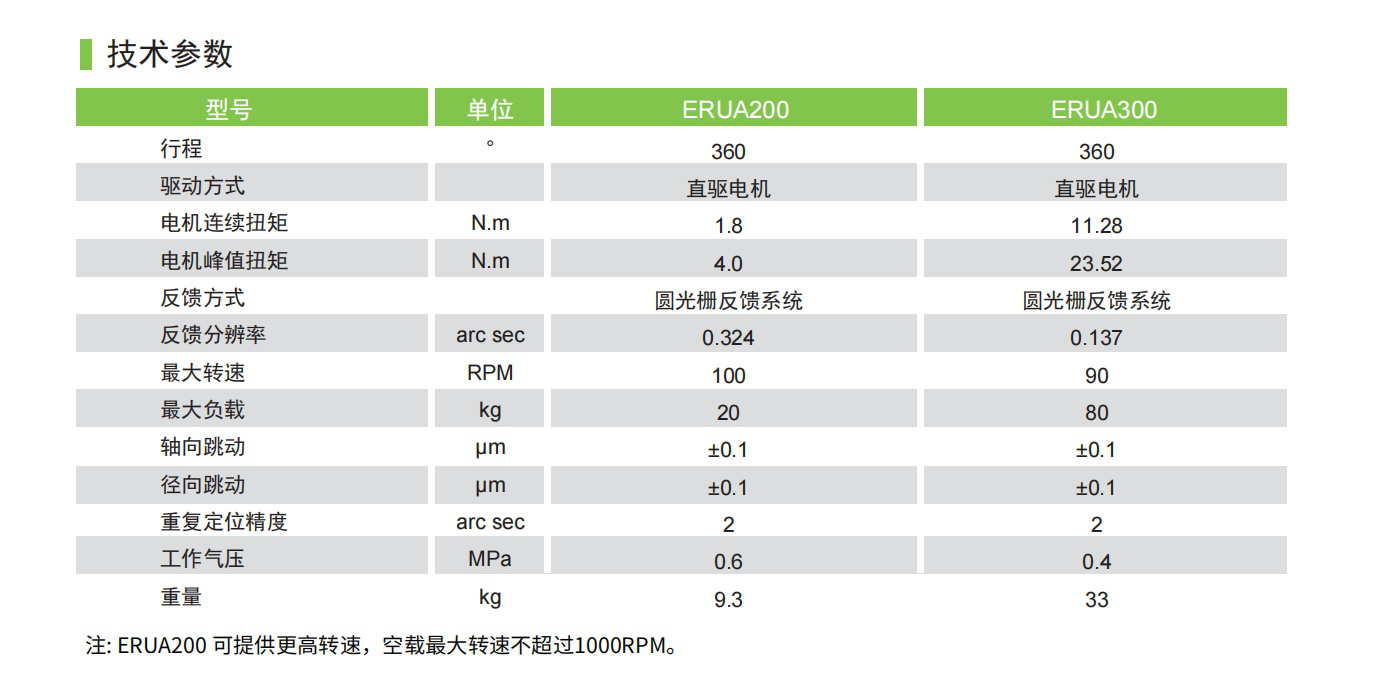

| Parameter | Value |
|---|---|
| Travel Range ERUA200 | 360° |
| Travel Range ERUA300 | 360° |
| Drive Type ERUA200 | Direct Drive Motor |
| Drive Type ERUA300 | Direct Drive Motor |
| Motor Continuous Torque ERUA200 | 1.8 |
| Motor Continuous Torque ERUA300 | 11.28 |
| Motor Peak Torque ERUA200 | 4.0 |
| Motor Peak Torque ERUA300 | 23.52 |
| Feedback Type ERUA200 | Optical Encoder Feedback System |
| Feedback Type ERUA300 | Optical Encoder Feedback System |
| Feedback Resolution ERUA200 | 0.324 |
| Feedback Resolution ERUA300 | 0.137 |
| Maximum Speed ERUA200 | 100 |
| Maximum Speed ERUA300 | 90 |
| Maximum Load ERUA200 | 20 |
| Maximum Load ERUA300 | 80 |
| Axial Runout ERUA200 | ±0.1 |
| Axial Runout ERUA300 | ±0.1 |
| Radial Runout ERUA200 | ±0.1 |
| Radial Runout ERUA300 | ±0.1 |
| Repeatability ERUA200 | 2 |
| Repeatability ERUA300 | 2 |
| Working Air Pressure ERUA200 | 0.6 |
| Working Air Pressure ERUA300 | 0.4 |
| Weight ERUA200 | 9.3 |
| Weight ERUA300 | 33 |
