DLSN Series Linear Motor Stage
The DLSN series linear motor platform is designed for high-precision motion control applications, featuring aerospace aluminum construction and advanced processing technology.
Save to Favorites
Overview

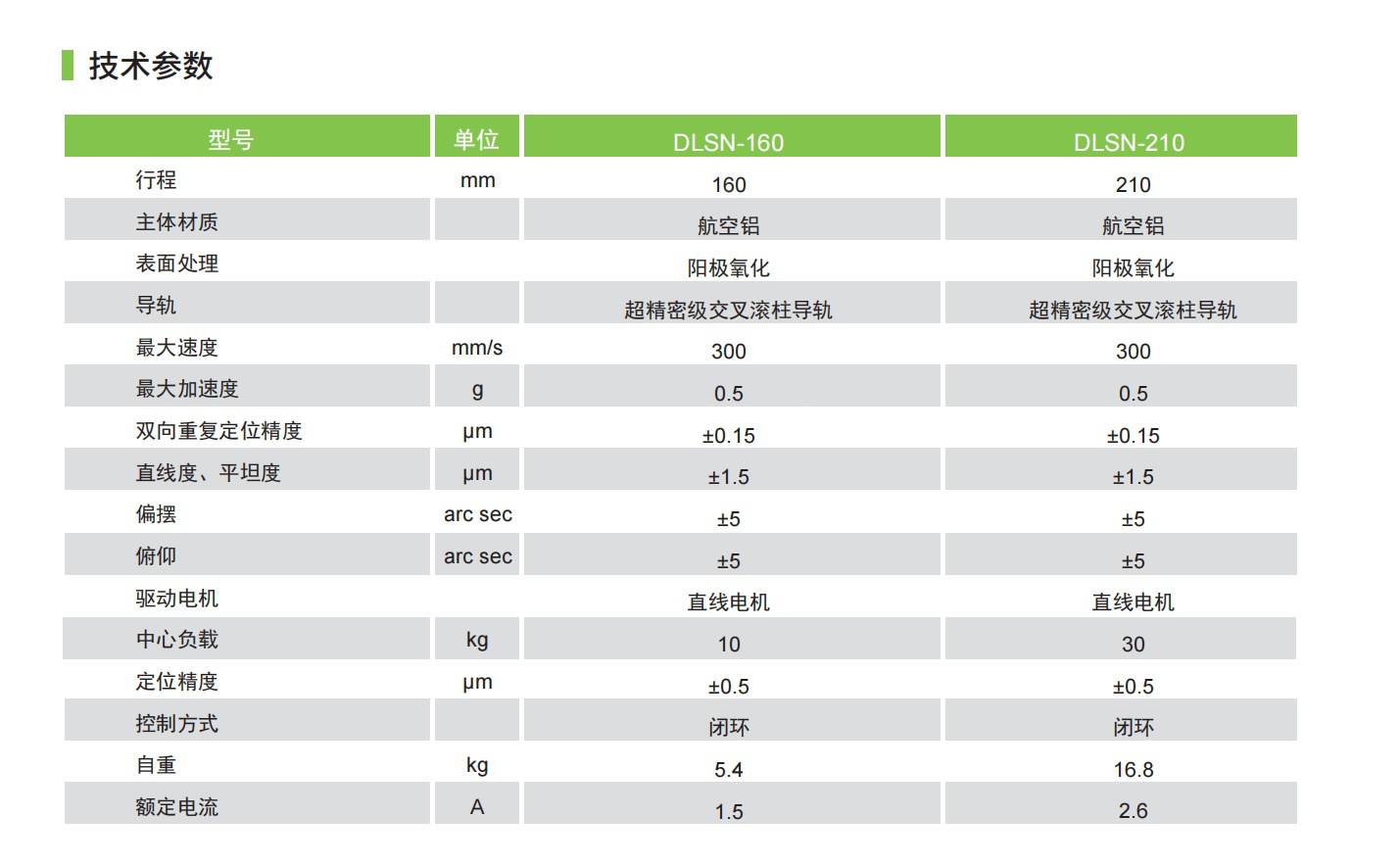

Specifications
| Parameter | Value |
|---|---|
| Stroke (mm) DLSN-160 | 160mm |
| Stroke (mm) DLSN-210 | 210mm |
| Main Material | 航空铝[Aerospace Aluminum] |
| Guide | 超精密级交叉滚柱导轨[Ultra-precision Cross Roller Guide] |
| Max Acceleration (g) | 0.5g |
| Bidirectional Repeatability (μm) | ±0.15μm |
| Straightness/Flatness (μm) | ±1.5μm |
| Central Load (kg) | 50kg |
| Control Mode | 闭环[Closed Loop] |
| Self Weight (kg) DLSN-160 | 5.4kg |
| Self Weight (kg) DLSN-210 | 16.8kg |
| Rated Current (A) DLSN-160 | 4.5A |
| Rated Current (A) DLSN-210 | 2.6A |
