XWJ-LM-X110Y75-2G
The XWJ-LM-X110Y75-2G is a precision motion control platform designed for high-accuracy applications. It features a robust aluminum alloy structure, advanced linear motors, and crossed roller guides for smooth and precise movement.
Save to Favorites
Overview

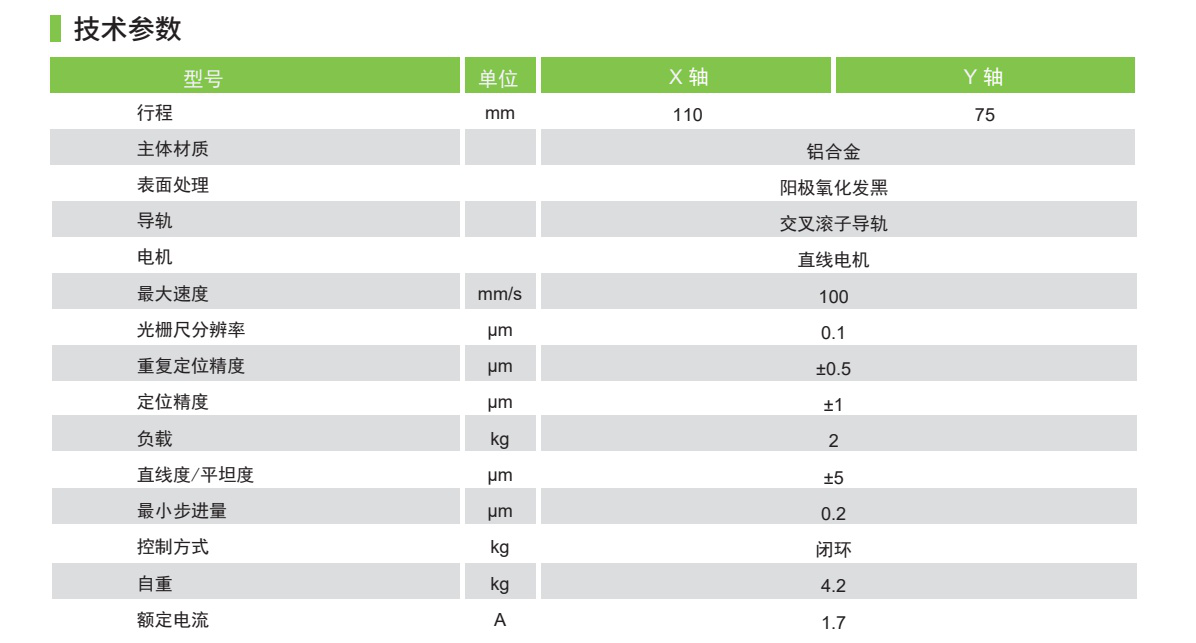

Specifications
| Parameter | Value |
|---|---|
| Travel Range X-axis | 110mm |
| Travel Range Y-axis | 75mm |
| Main Material | Aluminum alloy |
| Surface Treatment | Black anodized |
| Guide | Crossed roller guide |
| Motor | Linear motor |
| Maximum Speed | 100mm/s |
| Grating Resolution | 0.1μm |
| Repeatability | ±0.5μm |
| Positioning Accuracy | ±1μm |
| Load Capacity | 2kg |
| Straightness/Flatness | ±5μm |
| Minimum Step | 0.2μm |
| Control Method | Closed loop |
| Weight | 4.2kg |
| Rated current | 1.7A |
Applications
Key Features
Datasheet
