PXIe-3183H
PXIe-3183H is a high-performance PXI Express chassis designed for advanced testing and measurement applications. It offers excellent expandability and compatibility, making it ideal for complex electronic testing environments.
Save to Favorites
Overview

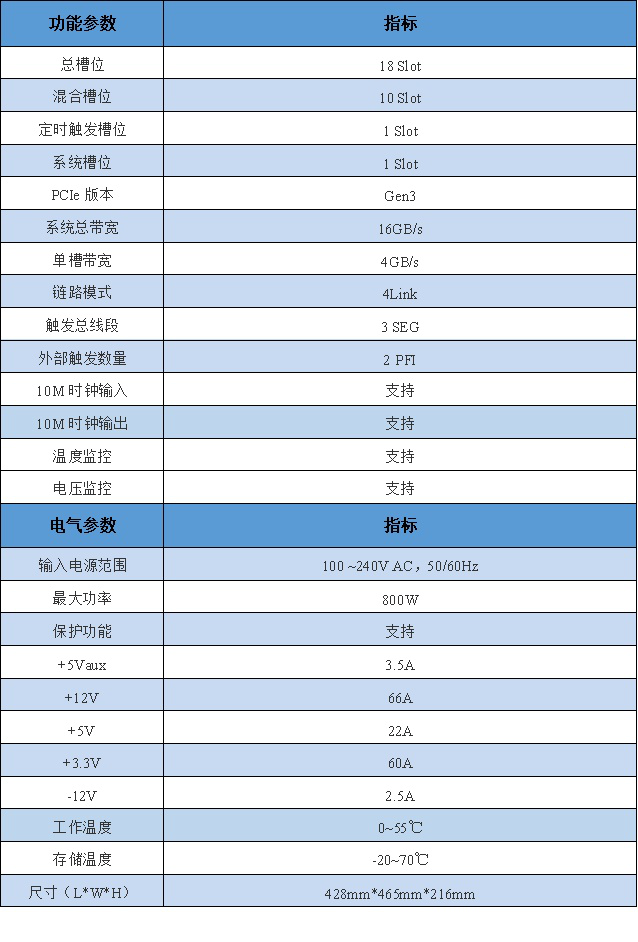

Specifications
| Parameter | Value |
|---|---|
| Total Slots | 18Slot |
| Hybrid Slots | 10Slot |
| Timing Trigger Slot | 1Slot |
| System Slot | 1Slot |
| PCIe Version | Gen3 |
| System Bandwidth | 16GB/s |
| Single Slot Bandwidth | 4GB/s |
| Link Mode | 4Link |
| Trigger Bus Segment | 3SEG |
| External Trigger Quantity | 2PFI |
| 10M Clock Input | 支持 |
| 10M Clock Output | 支持 |
| Temperature Monitoring | 支持 |
| Voltage Monitoring | 支持 |
| Input Power Range | 100~240VAC,50/60Hz |
| Maximum Power | 800W |
| Protection Function | 支持 |
| +5Vaux | 3.5A |
| +12V | 66A |
| +5V | 22A |
| +3.3V | 60A |
| -12V | 2.5A |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -20~70℃ |
| Dimensions | 428mm*465mm*216mm |
