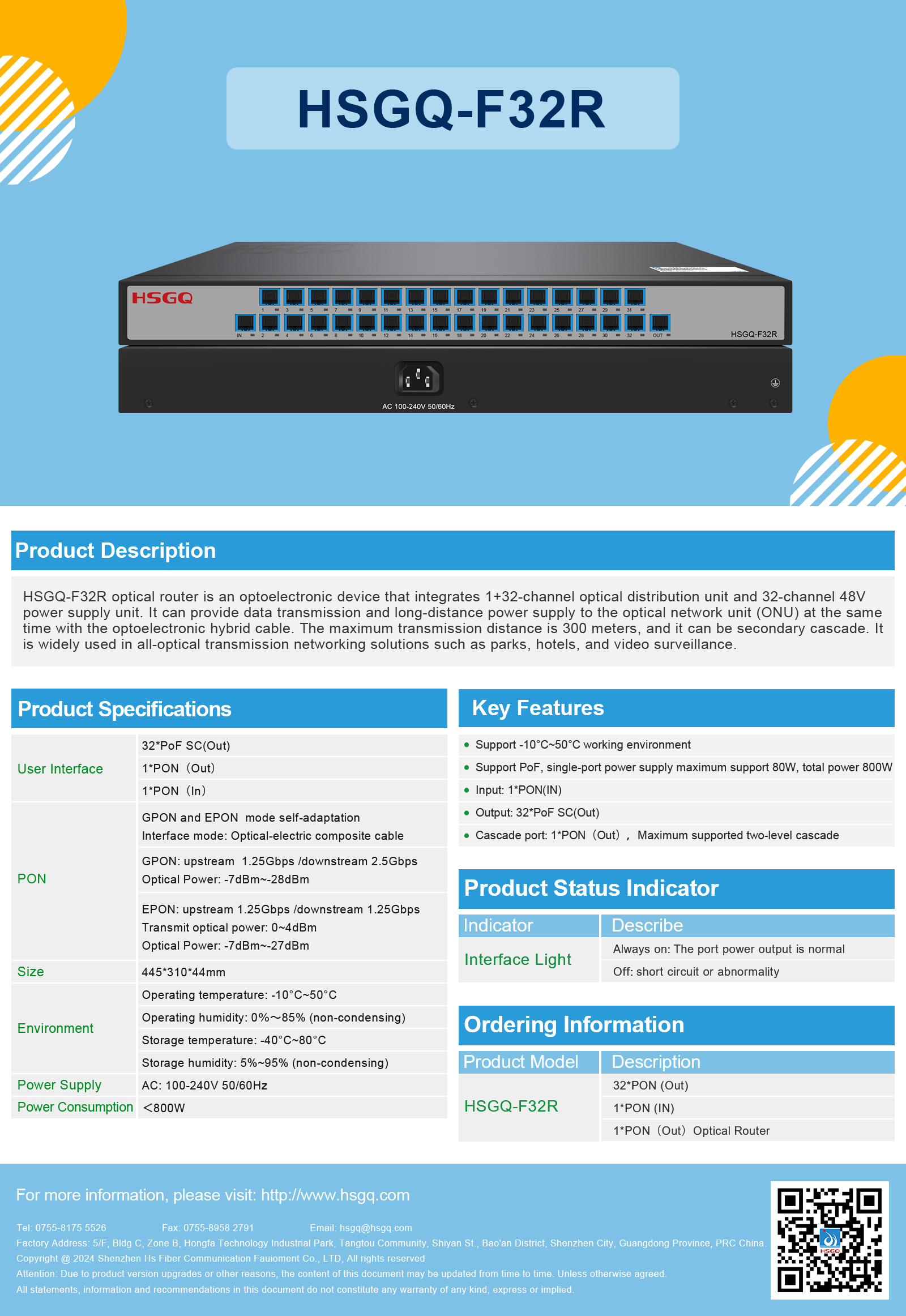

HSGQ-F32R
HSGQ-F32R optical router is an optoelectronic device that integrates a 1+32-channel optical distribution unit and a 32-channel 48V power supply unit. It provides data transmission and long-distance power supply to the optical network unit (ONU) at the same time with the optoelectronic hybrid cable. The maximum transmission distance is 300 meters, and it can be secondary cascade. It is widely used in all-optical transmission networking solutions such as parks, hotels, and video surveillance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| User Interface | 32×PoF SC(Out), 1×PON (Out), 1×PON (In) |
| PON Mode | GPON and EPON mode self-adaptation |
| Interface Mode | Optical-electric composite cable |
| GPON Upstream Rate | 1.25Gbps |
| GPON Downstream Rate | 2.5Gbps |
| GPON Optical Power | 7dBm–28dBm |
| EPON Upstream Rate | 1.25Gbps |
| EPON Downstream Rate | 1.25Gbps |
| EPON Optical Power | 7dBm–27dBm |
| Size | 445×310×44mm |
| Operating Temperature | -10°C–50°C |
| Operating Humidity | 0%–85% (non-condensing) |
| Storage Temperature | -40°C–80°C |
| Storage Humidity | 5%–95% (non-condensing) |
| Power Supply | AC 100–240V 50/60Hz |
| Power Consumption | <800W |
