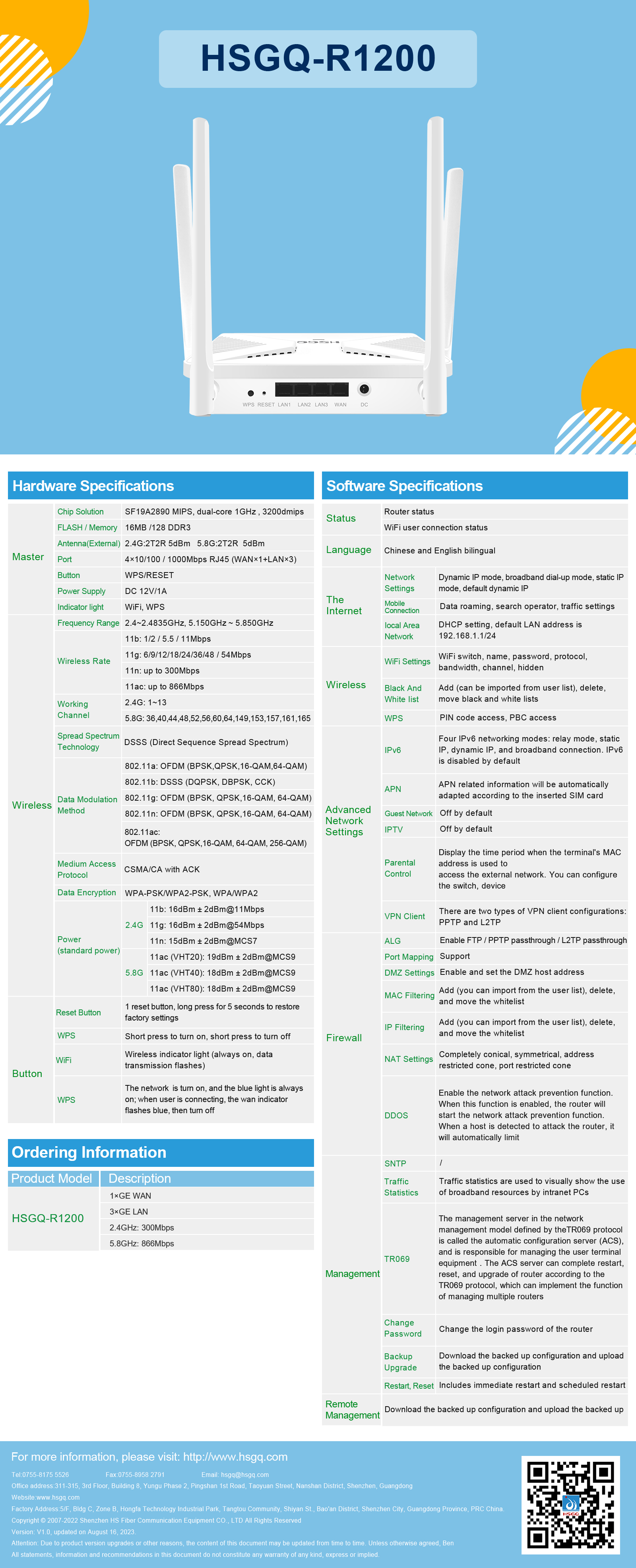

HSGQ-R1200
HSGQ-R1200 is a high-performance wireless router designed for stable and fast internet connectivity, supporting dual-band WiFi and advanced network management features.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Chip Solution | SF19A2890 MIPS, dual-core 1GHz, 3200dmips |
| FLASH/Memory | 16MB/128 DDR3 |
| Antenna(External) | 2.4G:2T2R 5dBm, 5.8G:2T2R 5dBm |
| Port | 4×10/100/1000Mbps RJ45 (WAN×1+LAN×3) |
| Button | WPS/RESET |
| Power Supply | DC 12V/1A |
| Indicator light | WiFi |
| Indicator light | WPS |
| Frequency Range | 2.4-2.4835GHz, 5.150GHz-5.850GHz |
| Wireless Rate | 11b: 1/2/5.5/11Mbps, 11g: 6/9/12/18/24/36/48/54Mbps, 11n: up to 300Mbps, 11ac: up to 866Mbps |
| Working Channel | 2.4G: 1-13, 5G: 36,40,44,48,52,56,60,64,149,153,157,161,165 |
| Spread Spectrum Technology | DSSS (Direct Sequence Spread Spectrum) |
| Data Modulation Method | 802.11a: OFDM (BPSK,QPSK,16-QAM,64-QAM), 802.11b: DSSS (DPSK, DBPSK, CCK), 802.11g: OFDM (BPSK, QPSK,16-QAM,64-QAM), 802.11n: OFDM (BPSK, QPSK,16-QAM,64-QAM), 802.11ac: OFDM (BPSK, QPSK,16-QAM,64-QAM,256-QAM) |
| Medium Access Protocol | CSMA/CA with ACK |
| Data Encryption | WPA-PSK/WPA2-PSK, WPA/WPA2 |
| Power(Standard Power) | 2.4G: 11b (16dBm ±2dBm@11Mbps), 11g (16dBm ±2dBm@54Mbps), 11n (15dBm ±2dBm@MCS7), 5.8G: 11a (19dBm ±2dBm@MCS9), 11ac (19dBm ±2dBm@MCS9) |
| Reset Button | 1 reset button, long press for 5 seconds to restore factory settings |
| WPS Button | Short press to turn on |
| WPS Button | short press to turn off |
| WiFi Indicator | Wireless indicator light (always on, data transmission flashes) |
| WPS Indicator | The network is on, and the blue light is always on; when used for pairing, the wan indicator flashes blue, then turns off |
