HSGQ-SG2016P
20-port gigabit intelligent standard PoE switch, utilizing high-quality high-speed network IC and the most stable PoE chip. It supports 10/100/1000M Ethernet and complies with IEEE802.3af/802.3at standards. The PoE ports automatically detect and power devices that meet these standards, while non-PoE devices are identified and only transmit data. It is ideal for wireless access points, network cameras, and other devices requiring DC power.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | AC100-240V50/60Hz |
| Port Quantity | 16×Gigabit PoE Ports, 2×Uplink Ports, 2×Gigabit SFP Ports |
| Bandwidth | 40Gbps |
| Pack Forward Rate | 29.76Mpps |
| Package Cache | 3Mbit |
| MAC Address | 8K |
| Forwarding Mode | Store and forward |
| Ethernet Standard | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3z (Gigabit Ethernet Fiber Standard), IEEE802.3af(15.4W), IEEE802.3at(30W) |
| PoE Port Output Voltage | DC44-57V |
| PoE Power Supply Mode | 1/2+; 3/6- |
| Network Medium | 10Base-T: Cat3,4,5 Class or above UTP/STP (≤100m), 100Base-TX: Cat5 Class or above UTP/STP (≤100m), 1000Base-TX: Cat5 Class or above UTP/STP (≤100m) |
| Optical Mode | Single-mode optical fiber: 50/125, 62.5/125, 100/140um, 8/125, 8.7/125, 9/125, 10/125um |
| Working temperature | -10~50°C |
| Storage Temperature | -40~70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Dimensions | 320×207×44mm |
| Package Dimensions | 370×290×85mm |
| Product Net Weight | 1.78KG |
| Product Gross Weight | 2.28KG |
| Carton Dimensions | 445×310×390mm |
| Packing Weight | 12.4KG |
| Input Voltage | AC100-240V 50-60Hz |
| Supply Power | 52V/3.84A |
| Non-PoE Port Maximum Power | 10W |
| PoE Port Maximum Power | 180W |
Applications
Key Features

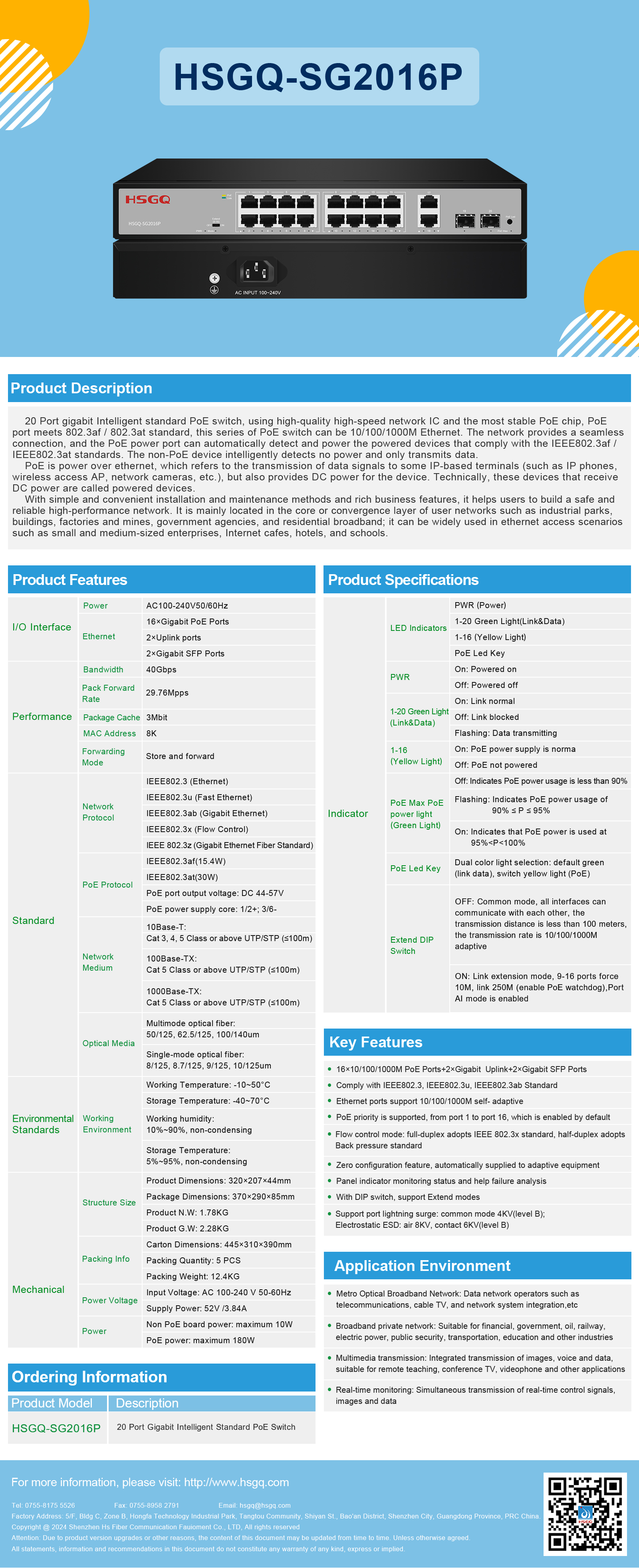

Datasheet
