Home All Products Optoelectronic Devices Photodiodes APD20 Avalanche Photodetector

Photodiodes

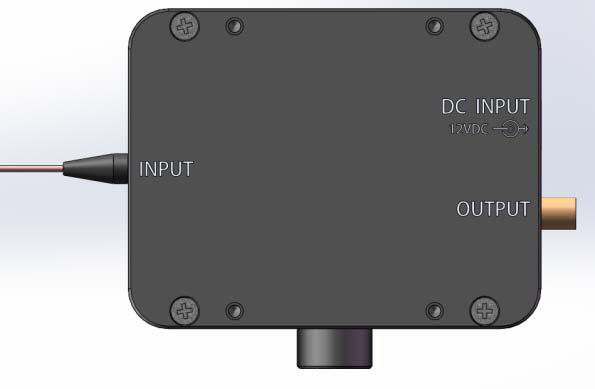

APD20 Avalanche Photodetector

Supplier

Fibretop

Part Number

Overview

Specifications

Parameter	Value
Model APD20A-10M	APD20A-10M
Model APD20A-50M	APD20A-50M
Model APD20A-200M	APD20A-200M
Model APD20A-400M	APD20A-400M
Material APD20A-10M	硅(Si)
Material APD20A-50M	硅(Si)
Material APD20A-200M	硅(Si)
Material APD20A-400M	硅(Si)

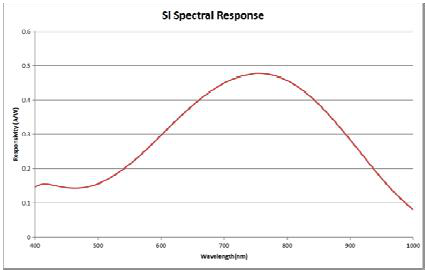

Wavelength Range APD20A-10M	400~1000nm
Wavelength Range APD20A-50M	400~1000nm
Wavelength Range APD20A-200M	400~1000nm
Wavelength Range APD20A-400M	400~1000nm
Responsivity (A/W@λ=1) APD20A-10M	0.585850nm
Responsivity (A/W@λ=1) APD20A-50M	0.585850nm
Responsivity (A/W@λ=1) APD20A-200M	0.585850nm
Responsivity (A/W@λ=1) APD20A-400M	0.585850nm
Bandwidth (MHz) APD20A-10M	DC-10
Bandwidth (MHz) APD20A-50M	DC-50
Bandwidth (MHz) APD20A-200M	DC-200
Bandwidth (MHz) APD20A-400M	DC-400
Rise Time (ns) APD20A-10M	40
Rise Time (ns) APD20A-50M	8
Rise Time (ns) APD20A-200M	2
Rise Time (ns) APD20A-400M	1
Gain (V/W) APD20A-10M	1.4×10^7
Gain (V/W) APD20A-50M	2.7×10^7
Gain (V/W) APD20A-200M	1.2×10^5
Gain (V/W) APD20A-400M	2.5×10^5
Saturation Optical Power (μW) APD20A-10M	23.7
Saturation Optical Power (μW) APD20A-50M	118
Saturation Optical Power (μW) APD20A-200M	268
Saturation Optical Power (μW) APD20A-400M	592
Noise Voltage (mVp-p) APD20A-10M	18
Noise Voltage (mVp-p) APD20A-50M	18
Noise Voltage (mVp-p) APD20A-200M	18
Noise Voltage (mVp-p) APD20A-400M	18
Equivalent Noise Power (pW/Hz) APD20A-10M	0.11
Equivalent Noise Power (pW/Hz) APD20A-50M	0.23
Equivalent Noise Power (pW/Hz) APD20A-200M	0.28
Equivalent Noise Power (pW/Hz) APD20A-400M	0.64
Model APD20C-10M	APD20C-10M
Model APD20C-50M	APD20C-50M
Model APD20C-200M	APD20C-200M
Model APD20C-400M	APD20C-400M
Material APD20C-10M	铟镓砷(InGaAs)
Material APD20C-50M	铟镓砷(InGaAs)
Material APD20C-200M	铟镓砷(InGaAs)
Material APD20C-400M	铟镓砷(InGaAs)

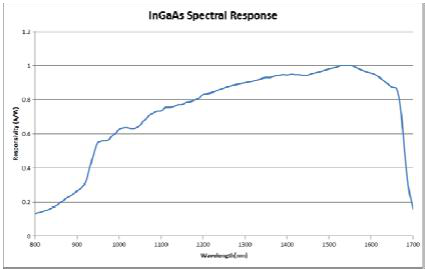

Wavelength Range APD20C-10M	1000~1700nm
Wavelength Range APD20C-50M	1000~1700nm
Wavelength Range APD20C-200M	1000~1700nm
Wavelength Range APD20C-400M	1000~1700nm
Responsivity (A/W@λ=1) APD20C-10M	0.9850nm
Responsivity (A/W@λ=1) APD20C-50M	0.9850nm
Responsivity (A/W@λ=1) APD20C-200M	0.9850nm
Responsivity (A/W@λ=1) APD20C-400M	0.9850nm
Bandwidth (MHz) APD20C-10M	DC-10
Bandwidth (MHz) APD20C-50M	DC-50
Bandwidth (MHz) APD20C-200M	DC-200
Bandwidth (MHz) APD20C-400M	DC-400
Rise Time (ns) APD20C-10M	40
Rise Time (ns) APD20C-50M	8
Rise Time (ns) APD20C-200M	2
Rise Time (ns) APD20C-400M	1
Gain (V/W) APD20C-10M	3.2×10^7
Gain (V/W) APD20C-50M	6.5×10^7
Gain (V/W) APD20C-200M	4×10^7
Gain (V/W) APD20C-400M	1.8×10^8
Saturation Optical Power (μW) APD20C-10M	0.98
Saturation Optical Power (μW) APD20C-50M	4.8
Saturation Optical Power (μW) APD20C-200M	8
Saturation Optical Power (μW) APD20C-400M	368
Noise Voltage (mVp-p) APD20C-10M	18
Noise Voltage (mVp-p) APD20C-50M	18
Noise Voltage (mVp-p) APD20C-200M	18
Noise Voltage (mVp-p) APD20C-400M	18
Equivalent Noise Power (pW/Hz) APD20C-10M	0.42
Equivalent Noise Power (pW/Hz) APD20C-50M	0.71
Equivalent Noise Power (pW/Hz) APD20C-200M	0.84
Equivalent Noise Power (pW/Hz) APD20C-400M	1.8
Maximum Output Amplitude (V)	3.2
Operating Voltage (V)	9~12
Operating Current (mA)	<200
Output Impedance (Ω)	50
Output Power Mode	DC
Output Connector	SMA Female
Operating Temperature (°C)	-10~+65
Storage Temperature (°C)	-40~+85

Applications

1. Weak optical signal detection 2. Distributed optical fiber sensing 3. External laser modulation signal detection

Key Features

1. Covers wavelength range of 400~1700nm 2. M-type temperature compensation 3. Compatible with single-mode (SM) or multimode (MM) optical fibers 4. FC optical fiber input connector 5. SMA output connector
