BEO D70

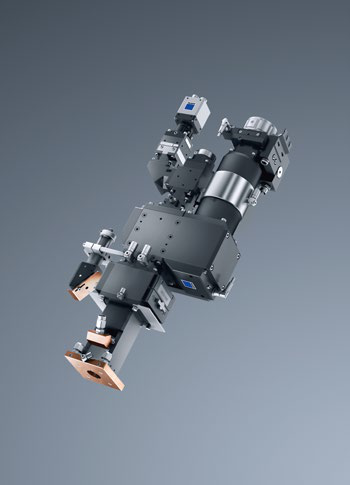

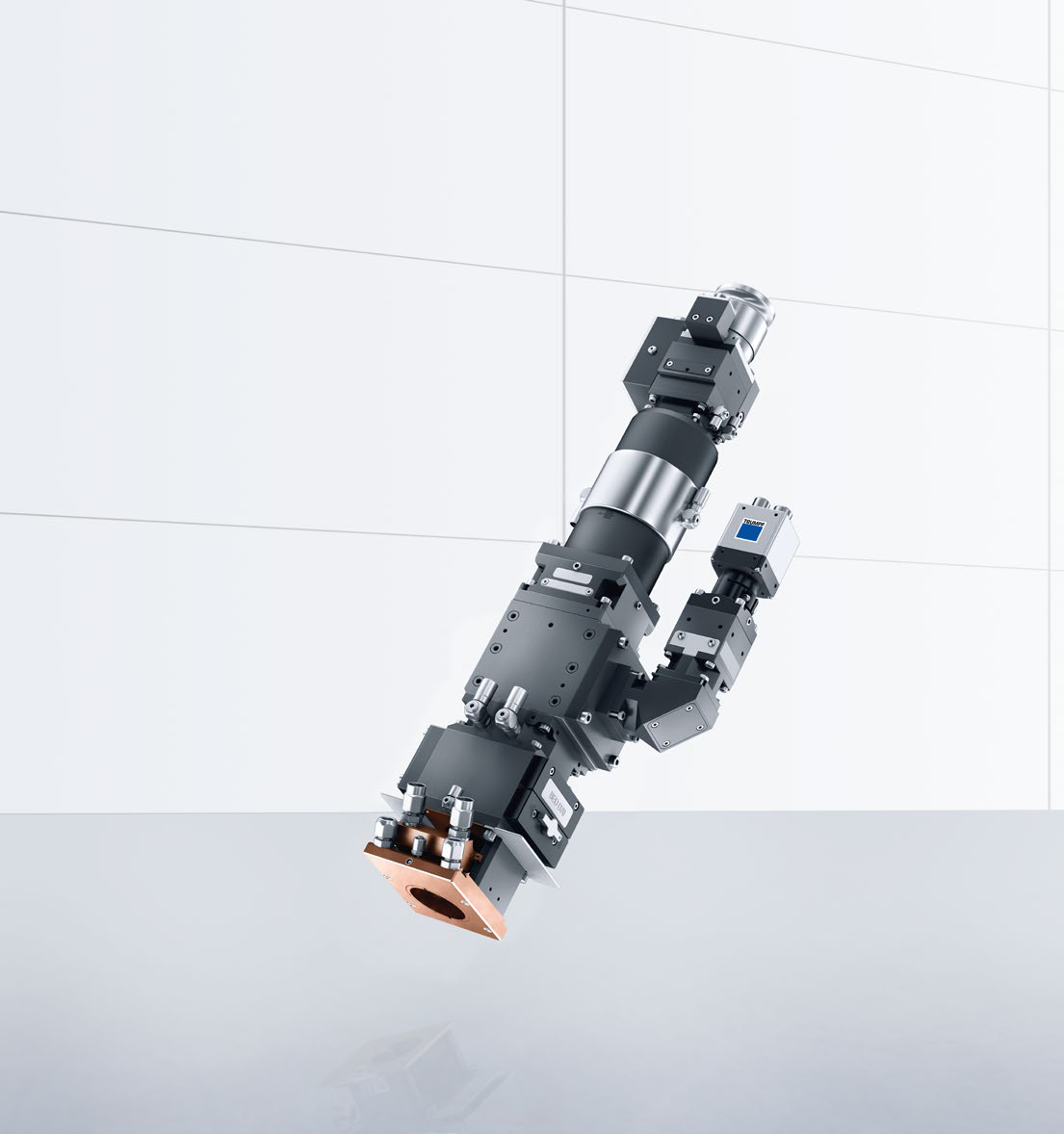

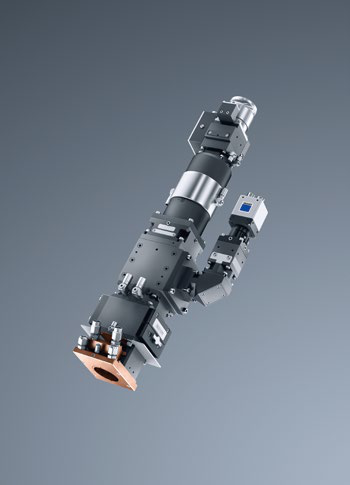

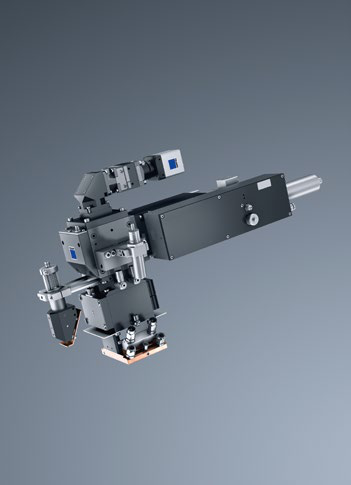

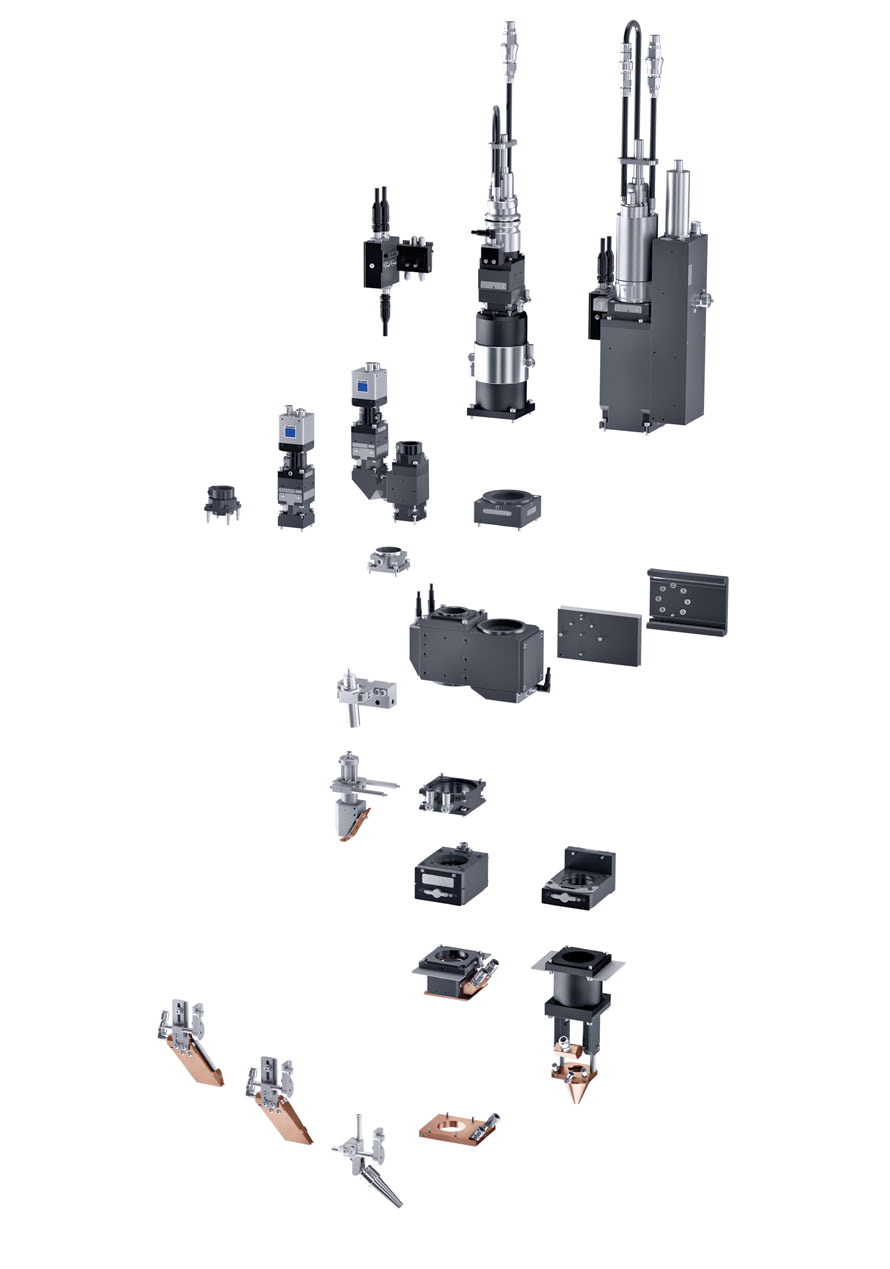

The BEO D70 is a modular optical system designed for high-power laser applications, offering robust design, smart functions, and modular adaptability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Performance (kW) BEO D70 Basic | 16 |
| Maximum Performance (kW) BEO D70 Smart | 24 |
| Available Lasers | TruDisk, TruFiber Multi-Mode, TruPulse |
| Standard Collimation (mm) | 150,175,200 |
| Available focal lengths (mm) | 200,300,400,600 |
| Laser Light Cable Types | LLK-B, LLK-D, LLK-X |
| Available Sensor Systems | VisionLine Cam/Basic/Detect/Project, CalibrationLine Power |
| Available Options | 0°,90° and 2×90° crossjet, MVE nozzle, shielding gas supply, camera and sensor interface, coaxial lighting, external lighting, adjustable line laser, beam-shaping elements such as bifocal module and multifocal element |
| Dimensions (W×H×D) BEO D70 Basic | 172×510×78 |
| Dimensions (W×H×D) BEO D70 Smart | 172×510×78 |
| Weight (kg) | Approx. 8 |
