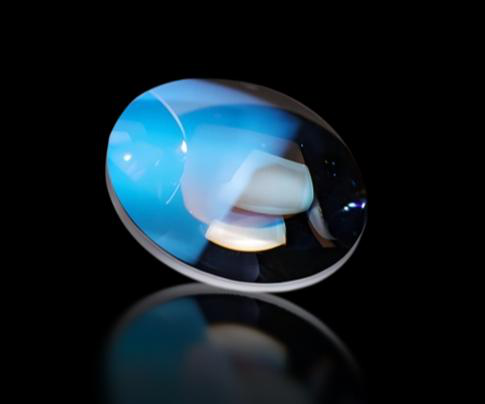

Plano-Convex Lens
This plano-convex lens is designed for optical systems requiring precise light focusing and transmission. It is made of high-quality H-K9L material and features a polished surface for optimal performance.
Save to Favorites
Overview

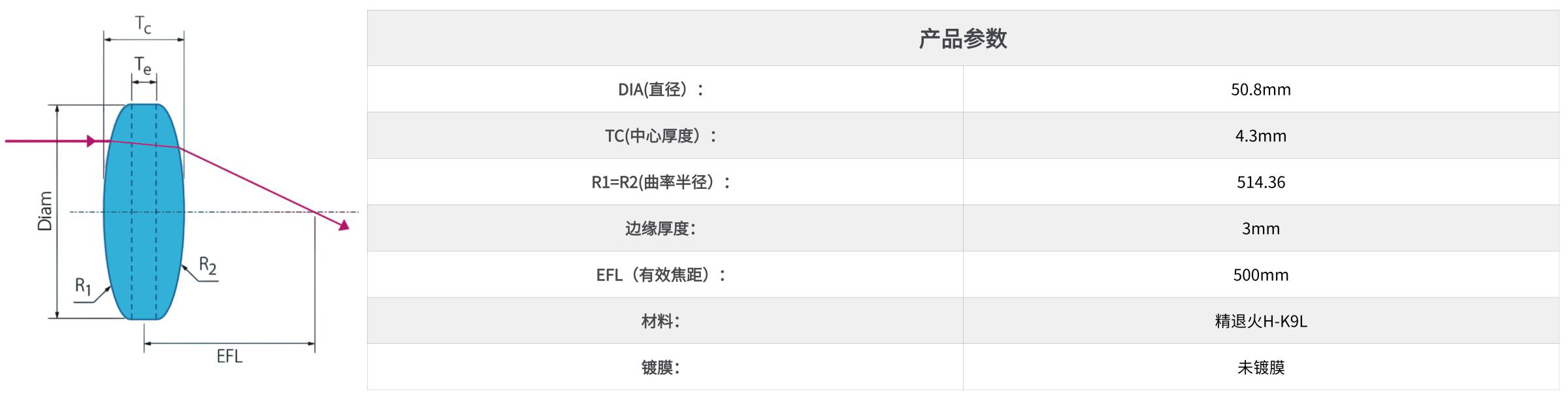

Specifications
| Parameter | Value |
|---|---|
| Diameter | 50.8mm |
| Center Thickness | 4.3mm |
| Radius of Curvature | 514.36 |
| Edge Thickness | 3mm |
| Effective Focal Length | 500mm |
| Material | H-K9L |
| Coating | Uncoated |
Applications
Key Features
Datasheet
