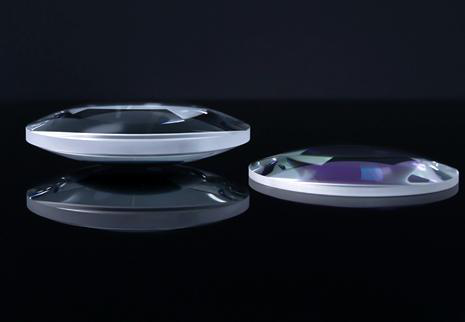

Plano-Convex Lens
This plano-convex lens is made of high-quality optical glass H-K9L, designed for precision optical applications. It features a diameter of 40mm, a center thickness of 10.5mm, and an effective focal length of 50mm.
Save to Favorites
Overview

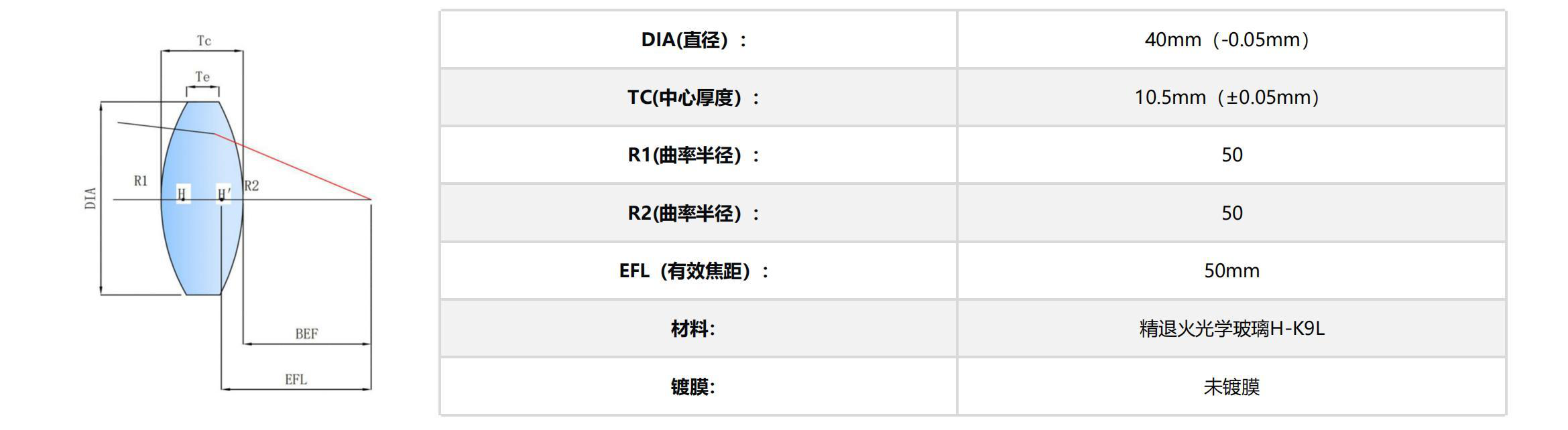

Specifications
| Parameter | Value |
|---|---|
| Diameter | 40mm (-0.05mm) |
| Center Thickness | 10.5mm (±0.05mm) |
| Radius of Curvature R1 | 50 |
| Radius of Curvature R2 | 50 |
| Effective Focal Length | 50mm |
| Material | High-quality optical glass H-K9L |
| Coating | None |
Applications
Key Features
Datasheet
