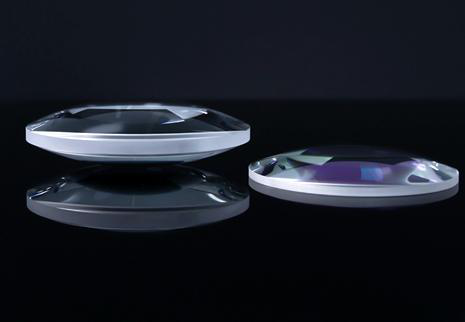

Precision Optical Lens
This precision optical lens is made of high-quality H-K9L optical glass, designed for applications requiring high accuracy and durability.
Save to Favorites
Overview
Specifications

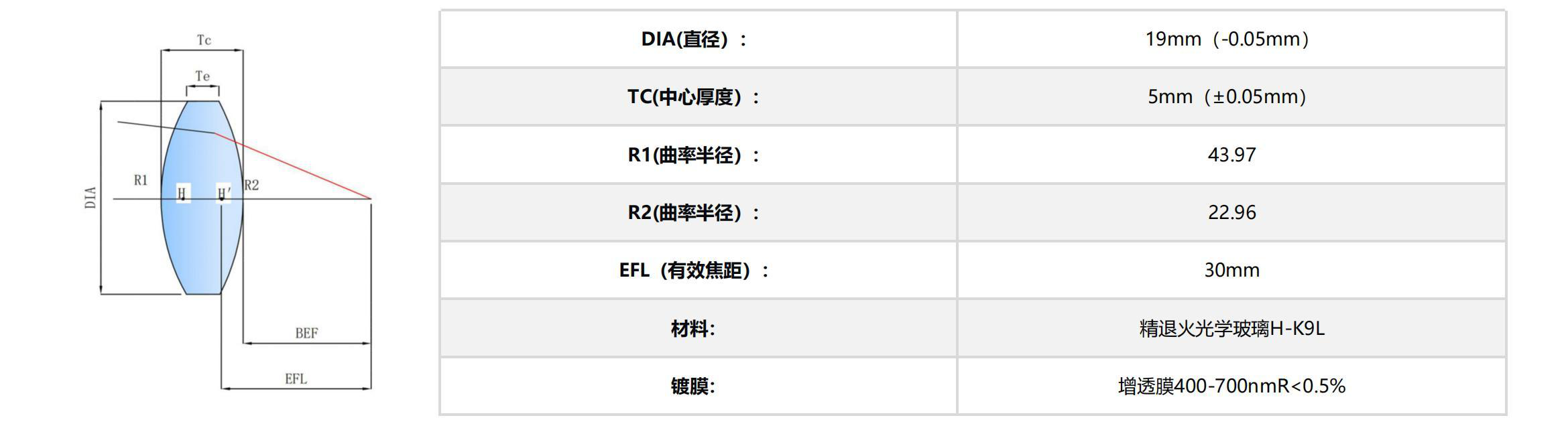

| Parameter | Value |
|---|---|
| Diameter | 19mm(-0.05mm) |
| Center Thickness | 5mm(±0.05mm) |
| Radius of Curvature R1 | 43.97 |
| Radius of Curvature R2 | 22.96 |
| Effective Focal Length | 30mm |
| Material | H-K9L optical glass |
| Coating | Anti-reflective coating 400-700nm R<0.5% |
Applications
Key Features
Datasheet
