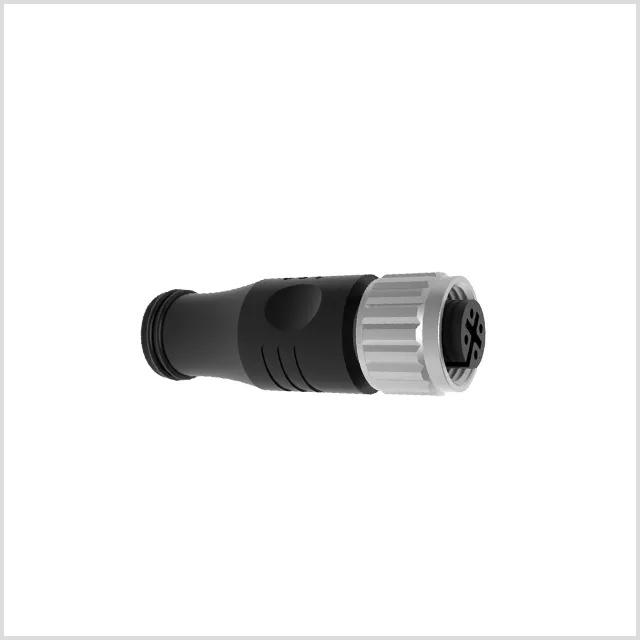

Circular Connector
This circular connector is designed for reliable electrical connections in various industrial applications. It features multiple pin configurations and robust materials for durability.
Save to Favorites
Overview

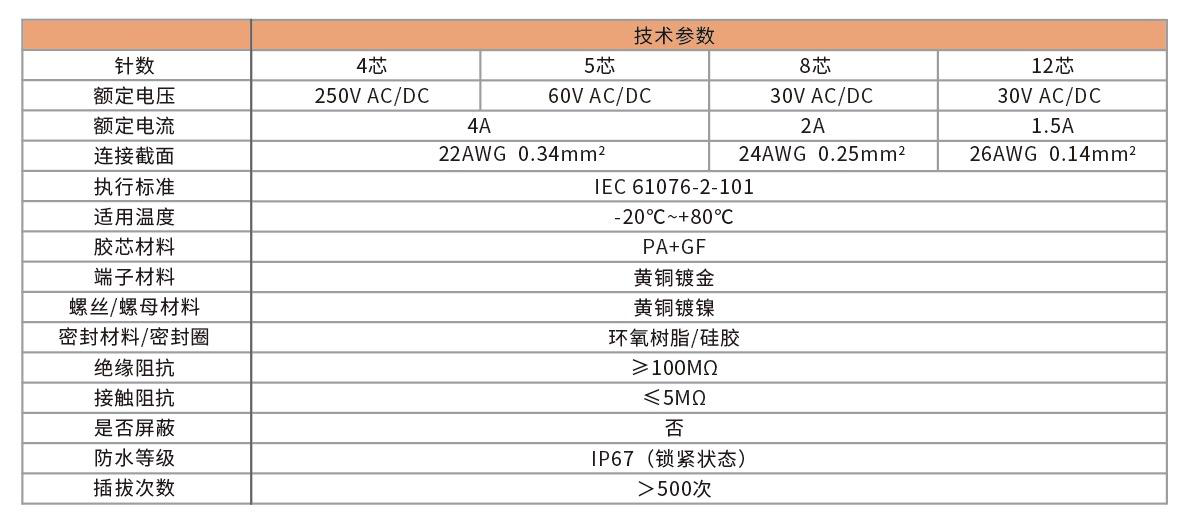

Specifications
| Parameter | Value |
|---|---|
| Number of Pins 4芯 | 4 |
| Rated Voltage 4芯 | 250VAC/DC |
| Rated Current 4芯 | 4A |
| Connection Cross-Section 4芯 | 22AWG 0.34mm² |
| Standard 4芯 | IEC 61076-2-101 |
| Operating Temperature 4芯 | -20°C~80°C |
| Core Material 4芯 | PA+GF |
| Terminal Material 4芯 | Brass with gold plating |
| Screw/Nut Material 4芯 | Brass with nickel plating |
| Sealing Material/Sealing Ring 4芯 | Epoxy resin/silicone |
| Insulation Resistance 4芯 | >100MΩ |
| Contact Resistance 4芯 | ≤5MΩ |
| Shielding 4芯 | No |
| Waterproof Rating 4芯 | IP67 (locked state) |
| Plugging Cycles 4芯 | >500 |
| Number of Pins 5芯 | 5 |
| Rated Voltage 5芯 | 60VAC/DC |
| Rated Current 5芯 | 4A |
| Connection Cross-Section 5芯 | 22AWG 0.34mm² |
| Standard 5芯 | IEC 61076-2-101 |
| Operating Temperature 5芯 | -20°C~80°C |
| Core Material 5芯 | PA+GF |
| Terminal Material 5芯 | Brass with gold plating |
| Screw/Nut Material 5芯 | Brass with nickel plating |
| Sealing Material/Sealing Ring 5芯 | Epoxy resin/silicone |
| Insulation Resistance 5芯 | >100MΩ |
| Contact Resistance 5芯 | ≤5MΩ |
| Shielding 5芯 | No |
| Waterproof Rating 5芯 | IP67 (locked state) |
| Plugging Cycles 5芯 | >500 |
| Number of Pins 8芯 | 8 |
| Rated Voltage 8芯 | 30VAC/DC |
| Rated Current 8芯 | 2A |
| Connection Cross-Section 8芯 | 24AWG 0.25mm² |
| Standard 8芯 | IEC 61076-2-101 |
| Operating Temperature 8芯 | -20°C~80°C |
| Core Material 8芯 | PA+GF |
| Terminal Material 8芯 | Brass with gold plating |
| Screw/Nut Material 8芯 | Brass with nickel plating |
| Sealing Material/Sealing Ring 8芯 | Epoxy resin/silicone |
| Insulation Resistance 8芯 | >100MΩ |
| Contact Resistance 8芯 | ≤5MΩ |
| Shielding 8芯 | No |
| Waterproof Rating 8芯 | IP67 (locked state) |
| Plugging Cycles 8芯 | >500 |
| Number of Pins 12芯 | 12 |
| Rated Voltage 12芯 | 30VAC/DC |
| Rated Current 12芯 | 1.5A |
| Connection Cross-Section 12芯 | 26AWG 0.14mm² |
| Standard 12芯 | IEC 61076-2-101 |
| Operating Temperature 12芯 | -20°C~80°C |
| Core Material 12芯 | PA+GF |
| Terminal Material 12芯 | Brass with gold plating |
| Screw/Nut Material 12芯 | Brass with nickel plating |
| Sealing Material/Sealing Ring 12芯 | Epoxy resin/silicone |
| Insulation Resistance 12芯 | >100MΩ |
| Contact Resistance 12芯 | ≤5MΩ |
| Shielding 12芯 | No |
| Waterproof Rating 12芯 | IP67 (locked state) |
| Plugging Cycles 12芯 | >500 |
