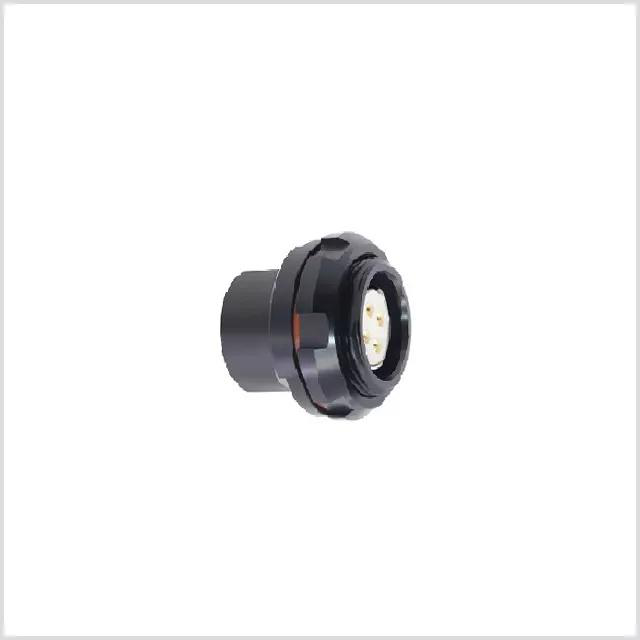

FG8 Series Circular Connectors
FG8 series circular connectors are designed for high-performance applications, offering reliable connectivity and durability in harsh environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

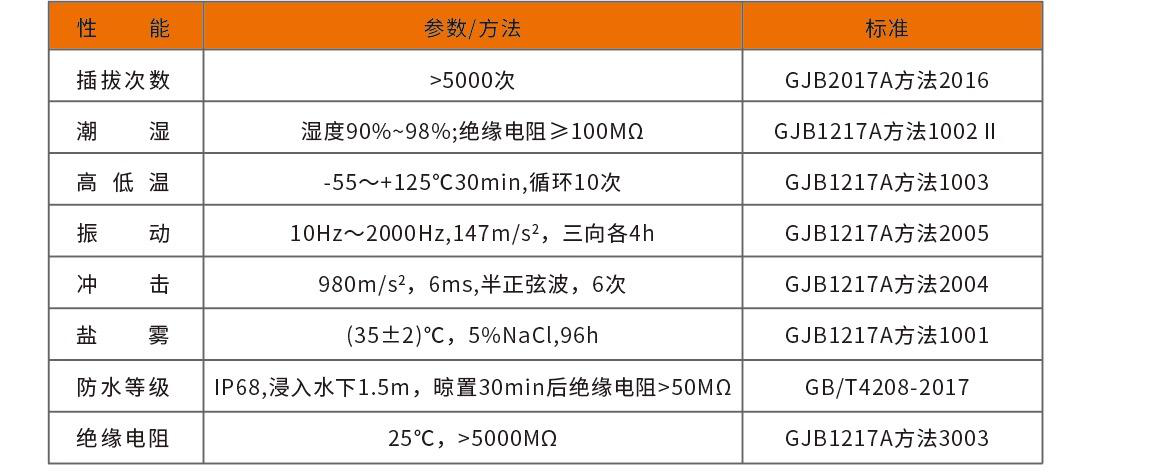

| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Rating | IP68,浸入水下1.5m,喷置30min后绝缘电阻≥50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

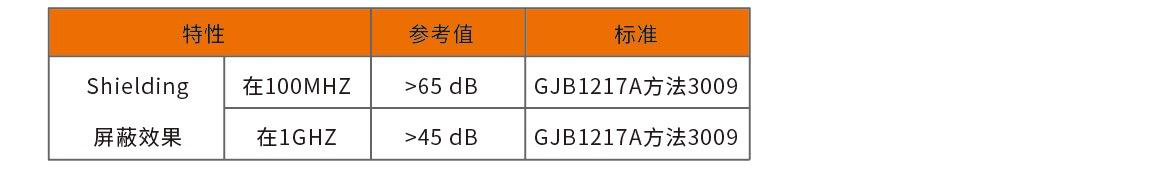

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

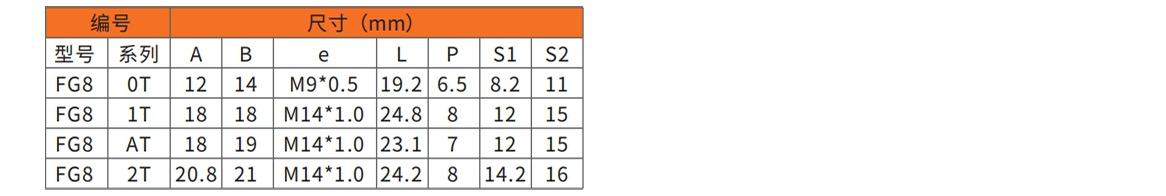

| Model FG8 0T A | 12 |
| Model FG8 0T B | 14 |
| Model FG8 0T e | M9*0.5 |
| Model FG8 0T L | 19.2 |
| Model FG8 0T P | 6.5 |
| Model FG8 0T S1 | 8.2 |
| Model FG8 0T S2 | 11 |
| Model FG8 1T A | 18 |
| Model FG8 1T B | 18 |
| Model FG8 1T e | M14*1.0 |
| Model FG8 1T L | 24.8 |
| Model FG8 1T P | 8 |
| Model FG8 1T S1 | 12 |
| Model FG8 1T S2 | 15 |
| Model FG8 AT A | 18 |
| Model FG8 AT B | 19 |
| Model FG8 AT e | M14*1.0 |
| Model FG8 AT L | 23.1 |
| Model FG8 AT P | 7 |
| Model FG8 AT S1 | 12 |
| Model FG8 AT S2 | 15 |
| Model FG8 2T A | 20.8 |
| Model FG8 2T B | 21 |
| Model FG8 2T e | M14*1.0 |
| Model FG8 2T L | 24.2 |
| Model FG8 2T P | 8 |
| Model FG8 2T S1 | 14.2 |
| Model FG8 2T S2 | 16 |
