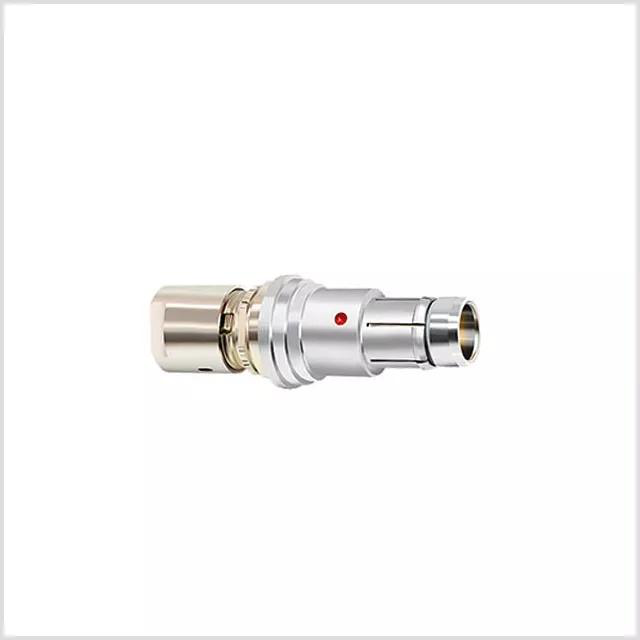

FSX Series Connectors
FSX series connectors are high-performance electrical connectors designed for reliable signal transmission in harsh environments. They feature robust construction, high durability, and excellent shielding performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

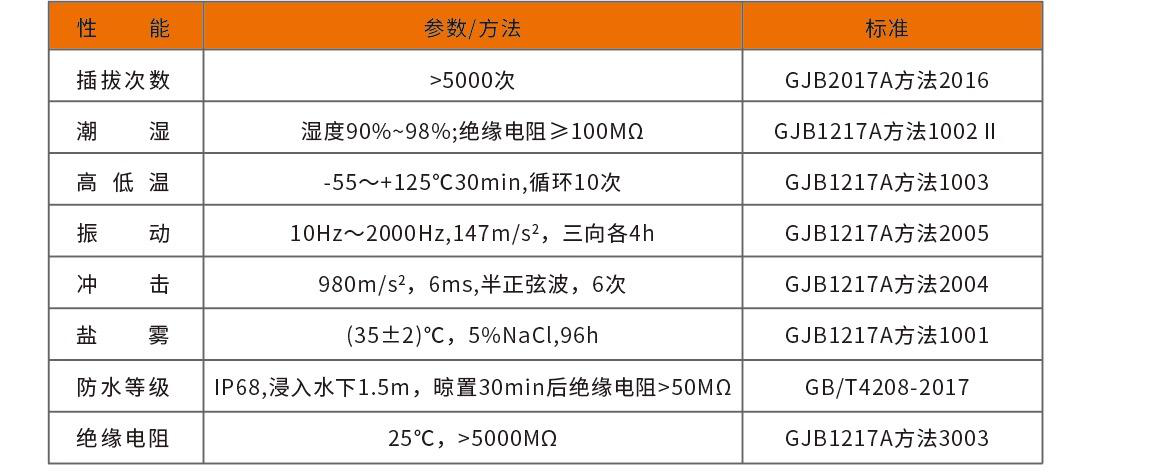

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Rating | IP68,浸入水下1.5m,喷置30min后绝缘电阻≥50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

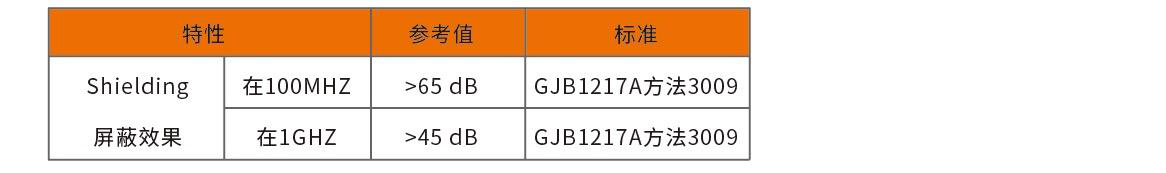

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

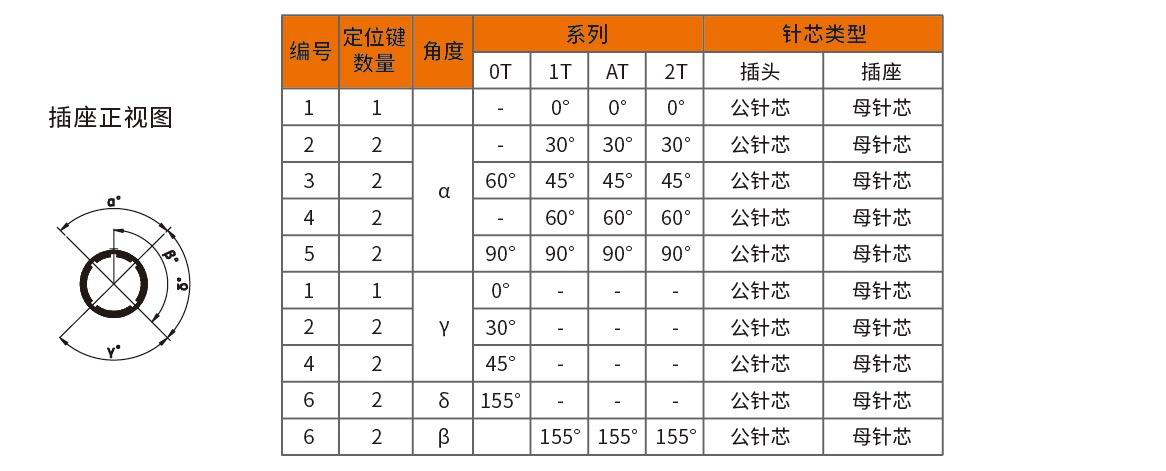

| Model Series | 0T,1T,AT,2T |

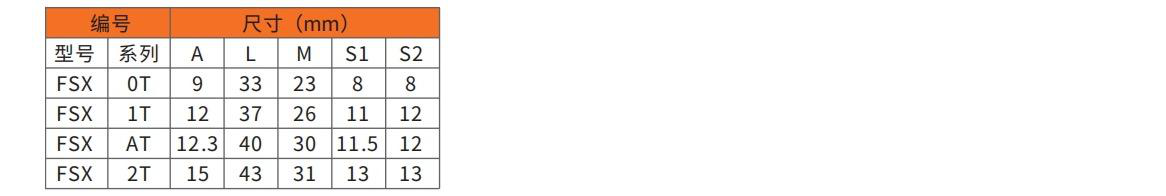

| Dimension A (mm) | 9,12,12.3,15 |
| Dimension L (mm) | 33,37,40,43 |
| Dimension M (mm) | 23,26,30,31 |
| Dimension S1 (mm) | 8,11,11.5,13 |
| Dimension S2 (mm) | 8,12,12,13 |

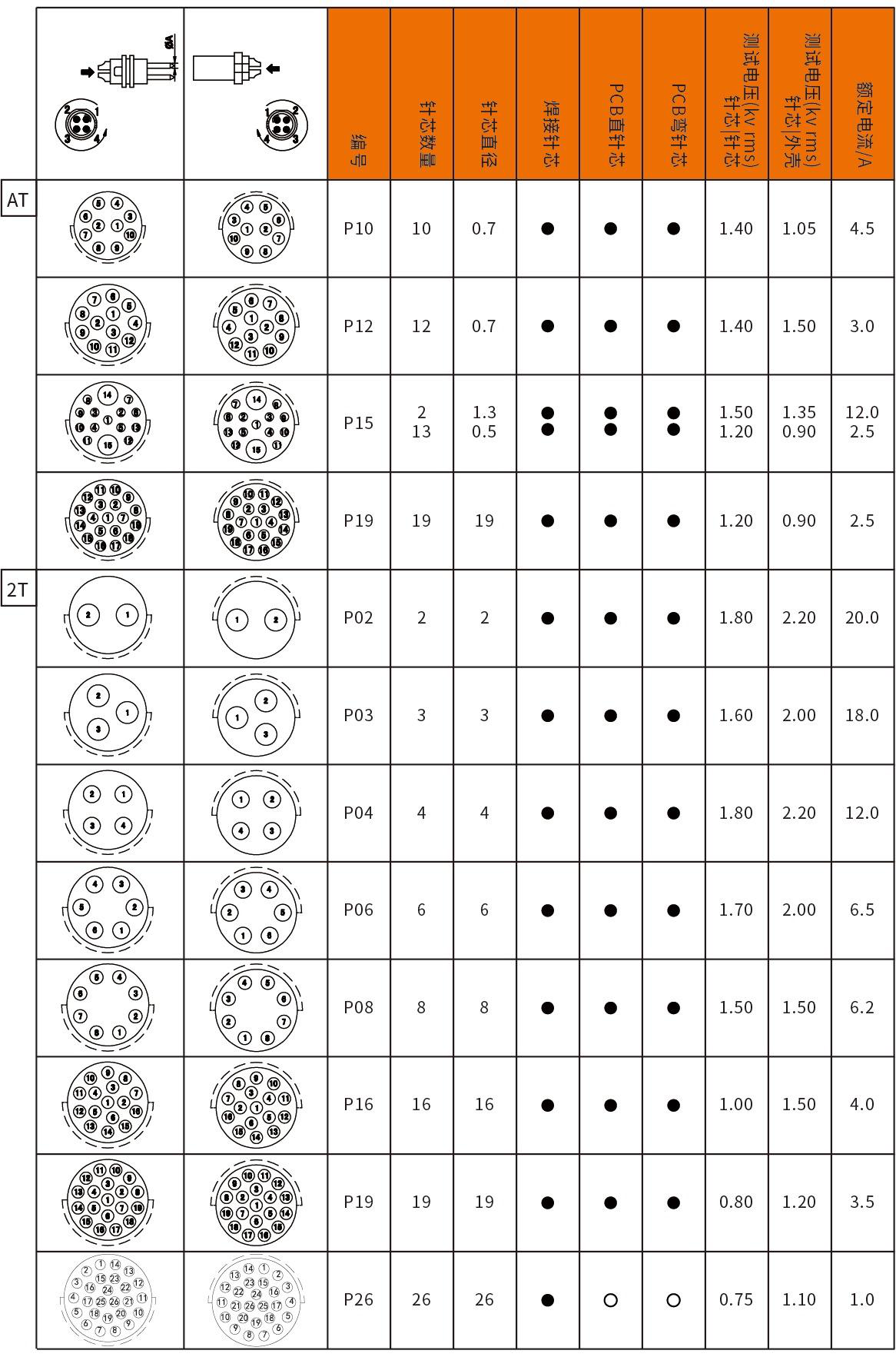

| Number of Pins | 2,3,4,6,8,10,12,13,16,19,26 |
| Rated Current (A) | 1.0,1.5,2.0,2.5,4.0,6.2,6.5,12.0,18.0,20.0 |
| Rated Voltage (kV) | 0.75,0.80,1.00,1.20,1.40,1.50,1.60,1.70,1.80 |
| Contact Resistance (mΩ) | ≤1.0,≤3.5,≤4.0,≤6.2,≤6.5,≤12.0,≤18.0,≤20.0 |
