ERA Series Connectors

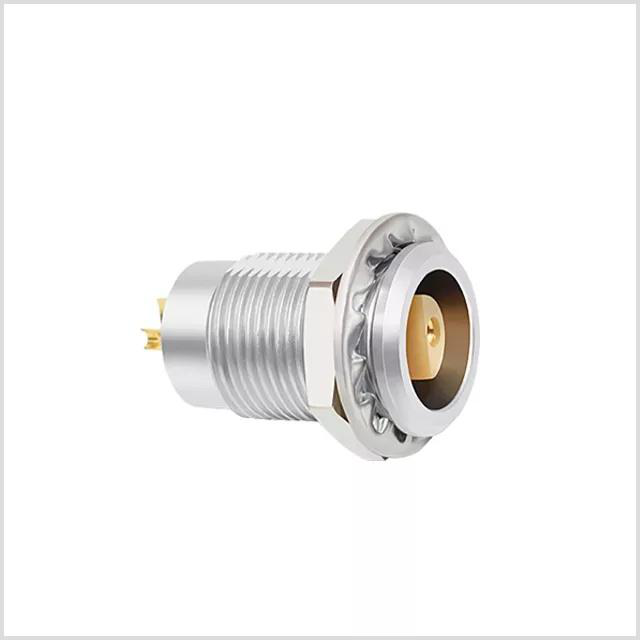

ERA series connectors are high-performance electrical connectors designed for reliable signal transmission in various demanding environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

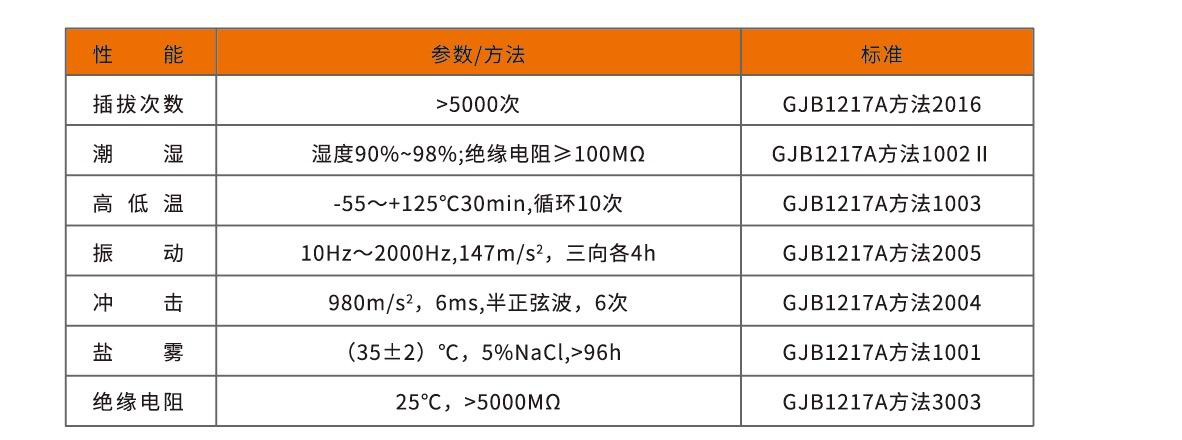

| Insertion Cycles | >5000次 |
| Humidity Resistance | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature Resistance | -55~+125°C30min,循环10次 |
| Vibration Resistance | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock Resistance | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray Resistance | (35±2)°C,5%NaCl,≥96h |
| Insulation Resistance | 25°C,>5000MΩ |

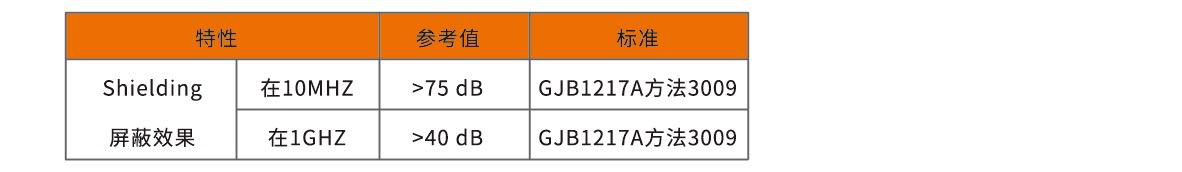

| Shielding Effectiveness at 10MHz | >75dB |
| Shielding Effectiveness at 1GHz | >40dB |

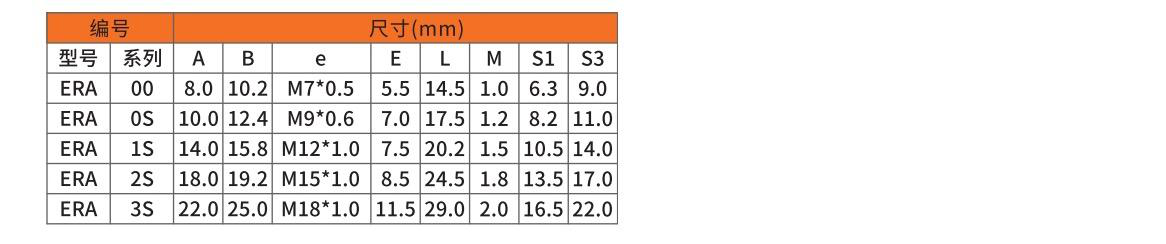

| Dimension A (mm) ERA 00 | 8.0 |
| Dimension B (mm) ERA 00 | 10.2 |
| Dimension e (mm) ERA 00 | M7*0.5 |
| Dimension E (mm) ERA 00 | 5.5 |
| Dimension L (mm) ERA 00 | 14.5 |
| Dimension M (mm) ERA 00 | 1.0 |
| Dimension S1 (mm) ERA 00 | 6.3 |
| Dimension S3 (mm) ERA 00 | 9.0 |
| Dimension A (mm) ERA 0S | 10.0 |
| Dimension B (mm) ERA 0S | 12.4 |
| Dimension e (mm) ERA 0S | M9*0.6 |
| Dimension E (mm) ERA 0S | 7.0 |
| Dimension L (mm) ERA 0S | 17.5 |
| Dimension M (mm) ERA 0S | 1.2 |
| Dimension S1 (mm) ERA 0S | 8.2 |
| Dimension S3 (mm) ERA 0S | 11.0 |
| Dimension A (mm) ERA 1S | 14.0 |
| Dimension B (mm) ERA 1S | 15.8 |
| Dimension e (mm) ERA 1S | M12*1.0 |
| Dimension E (mm) ERA 1S | 7.5 |
| Dimension L (mm) ERA 1S | 20.2 |
| Dimension M (mm) ERA 1S | 1.5 |
| Dimension S1 (mm) ERA 1S | 10.5 |
| Dimension S3 (mm) ERA 1S | 14.0 |
| Dimension A (mm) ERA 2S | 18.0 |
| Dimension B (mm) ERA 2S | 19.2 |
| Dimension e (mm) ERA 2S | M15*1.0 |
| Dimension E (mm) ERA 2S | 8.5 |
| Dimension L (mm) ERA 2S | 24.5 |
| Dimension M (mm) ERA 2S | 1.8 |
| Dimension S1 (mm) ERA 2S | 13.5 |
| Dimension S3 (mm) ERA 2S | 17.0 |
| Dimension A (mm) ERA 3S | 22.0 |
| Dimension B (mm) ERA 3S | 25.0 |
| Dimension e (mm) ERA 3S | M18*1.0 |
| Dimension E (mm) ERA 3S | 11.5 |
| Dimension L (mm) ERA 3S | 29.0 |
| Dimension M (mm) ERA 3S | 2.0 |
| Dimension S1 (mm) ERA 3S | 16.5 |
| Dimension S3 (mm) ERA 3S | 22.0 |

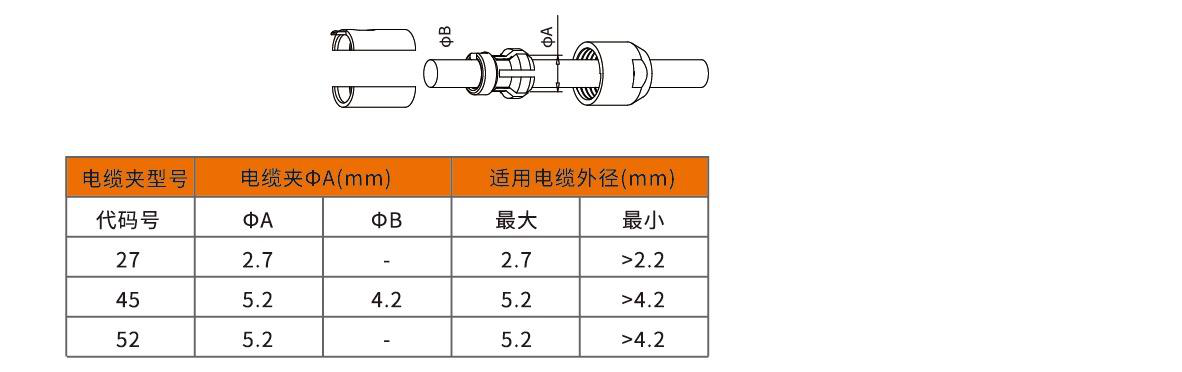

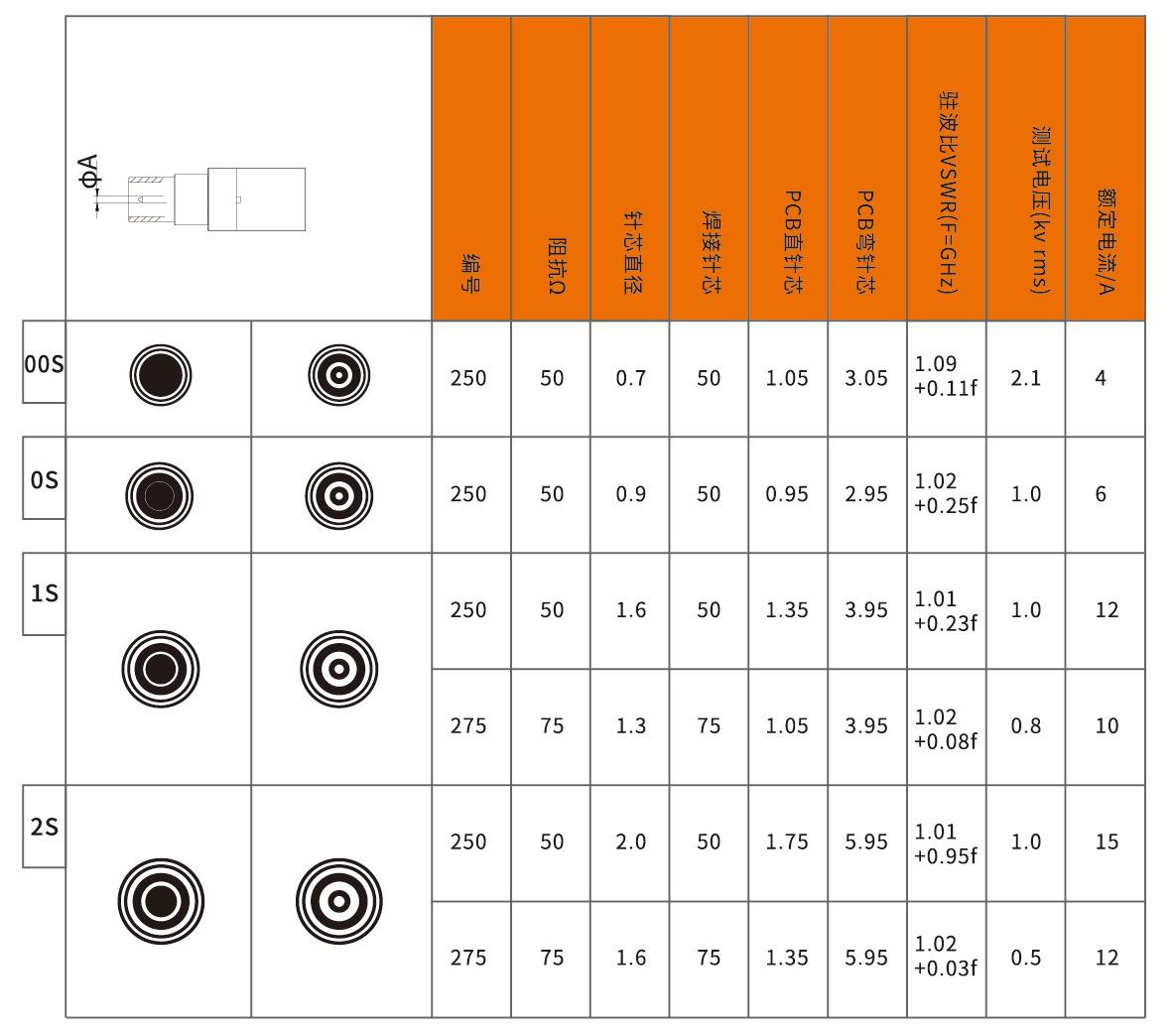

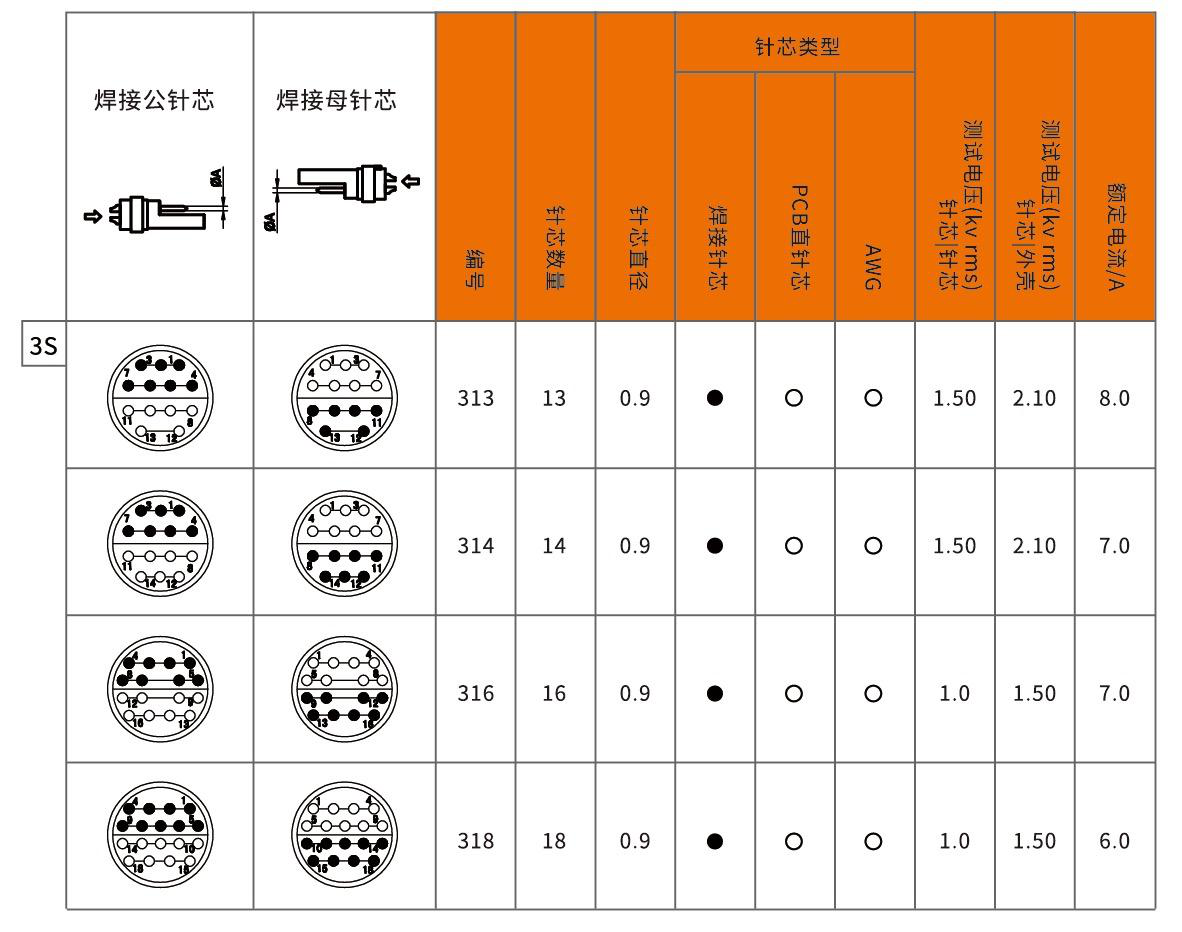

| Cable Clamp ΦA (mm) Code 27 | 2.7 |
| Cable Clamp ΦB (mm) Code 27 | - |
| Applicable Cable Outer Diameter Max (mm) Code 27 | 2.7 |
| Applicable Cable Outer Diameter Min (mm) Code 27 | >2.2 |
| Cable Clamp ΦA (mm) Code 45 | 5.2 |
| Cable Clamp ΦB (mm) Code 45 | 4.2 |
| Applicable Cable Outer Diameter Max (mm) Code 45 | 5.2 |
| Applicable Cable Outer Diameter Min (mm) Code 45 | >4.2 |
| Cable Clamp ΦA (mm) Code 52 | 5.2 |
| Cable Clamp ΦB (mm) Code 52 | - |
| Applicable Cable Outer Diameter Max (mm) Code 52 | 5.2 |
| Applicable Cable Outer Diameter Min (mm) Code 52 | >4.2 |
| Rated Current A (A) ERA 00S | 4 |
| Rated Current A (A) ERA 0S | 6 |
| Rated Current A (A) ERA 1S | 12 |
| Rated Current A (A) ERA 2S | 15 |
| Rated Current A (A) ERA 3S | 8 |
