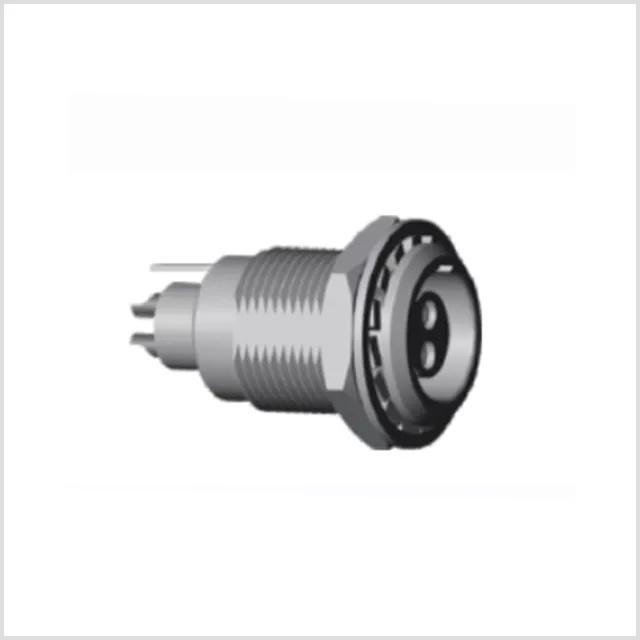

光电连接器
This product is a high-performance optical connector designed for reliable signal transmission in various environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

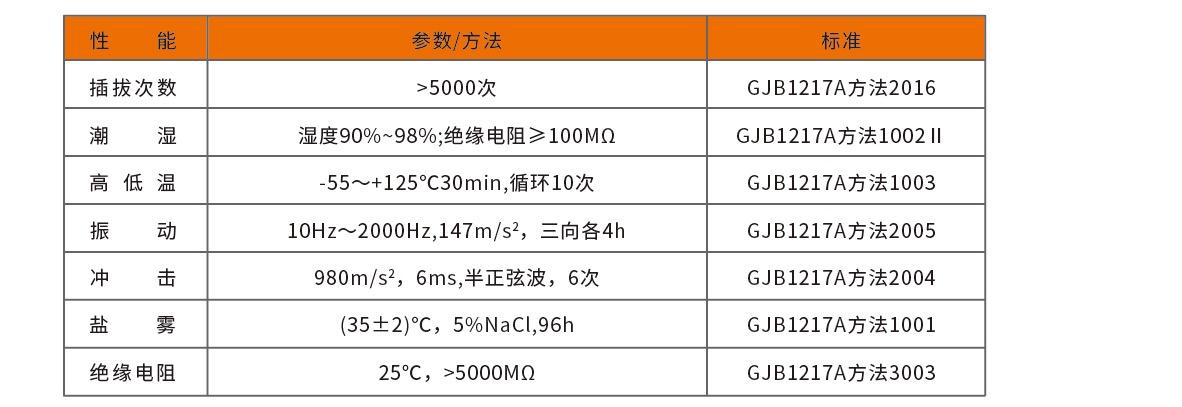

| Plugging Cycles | >5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,>5000MΩ |

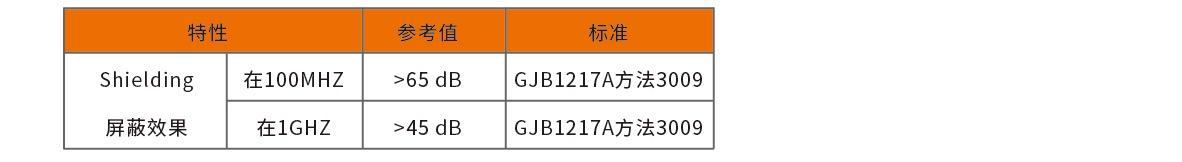

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

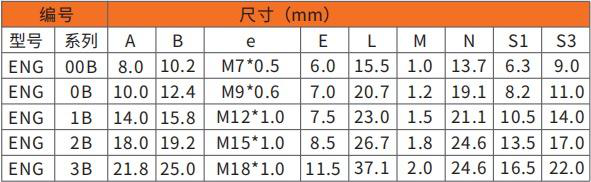

| Dimension A (mm) | 8.0, 10.0, 14.0, 18.0, 21.8 |
| Dimension B (mm) | 10.2, 12.4, 15.8, 19.2, 25.0 |
| Dimension e | M7*0.5, M9*0.6, M12*1.0, M15*1.0, M18*1.0 |
| Dimension E (mm) | 6.0, 7.0, 7.5, 8.5, 11.5 |
| Dimension L (mm) | 15.5, 20.7, 23.0, 26.7, 37.1 |
| Dimension M (mm) | 1.0, 1.2, 1.5, 1.8, 2.0 |
| Dimension N (mm) | 13.7, 19.1, 21.1, 24.6, 24.6 |
| Dimension S1 (mm) | 6.3, 8.2, 10.5, 13.5, 16.5 |
| Dimension S3 (mm) | 9.0, 11.0, 14.0, 17.0, 22.0 |

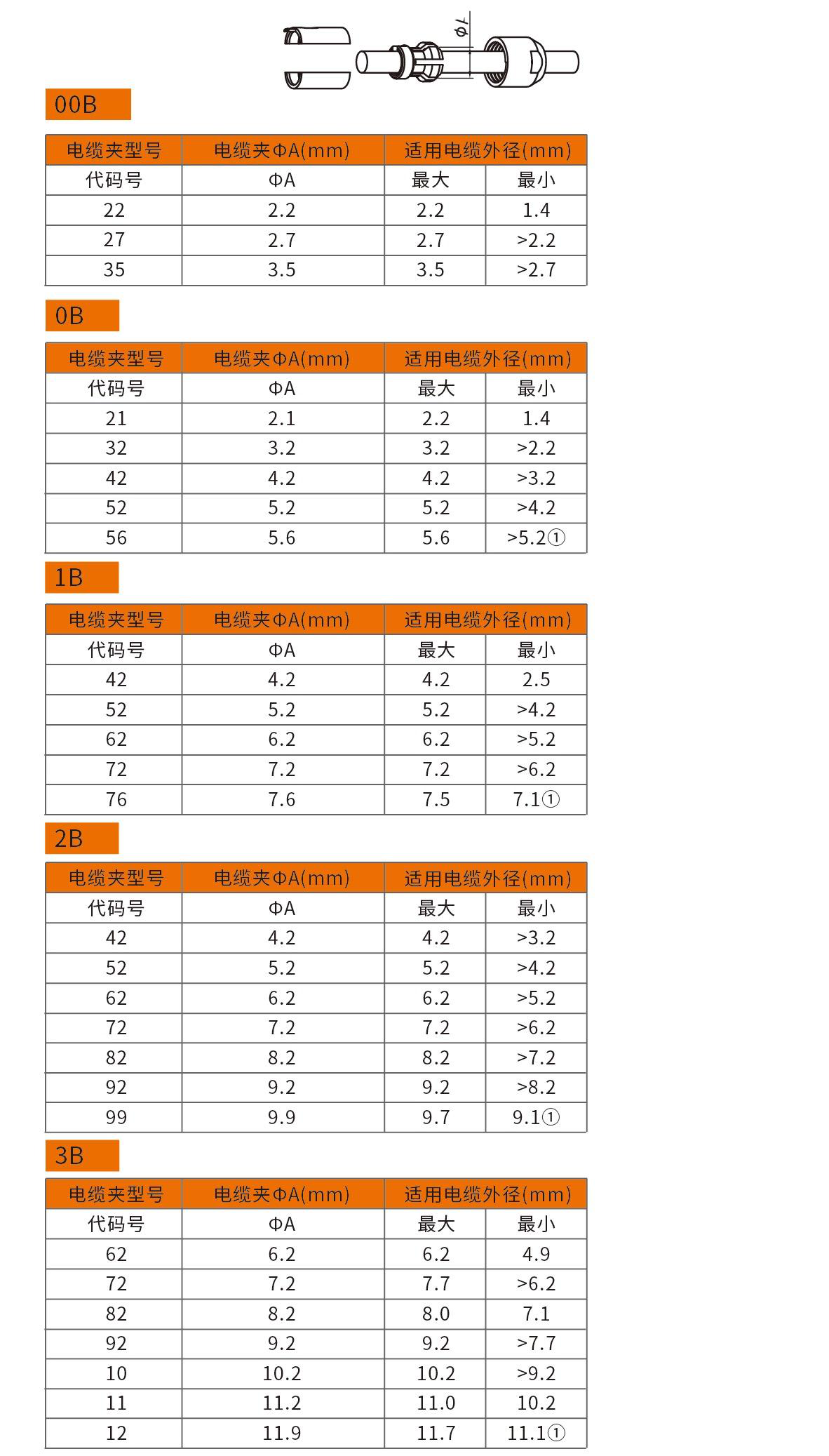

| Cable Clamp ΦA (mm) | 2.2, 2.7, 3.5, 4.2, 5.2, 6.2, 7.2, 8.2, 9.2, 10.2, 11.9 |
| Applicable Cable Outer Diameter (mm) | 1.4~11.1 |

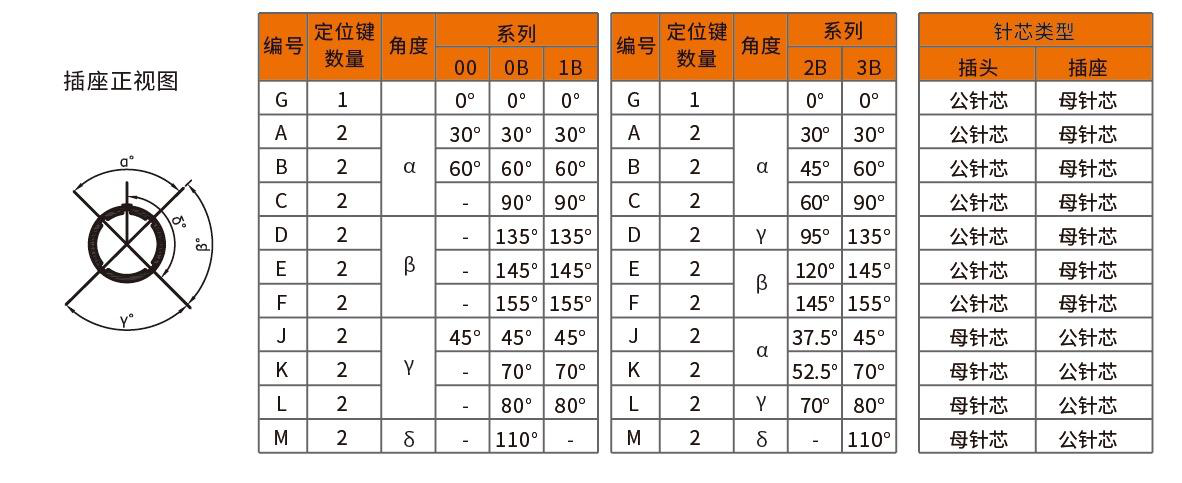

| Pin Type | 公针芯,母针芯 |

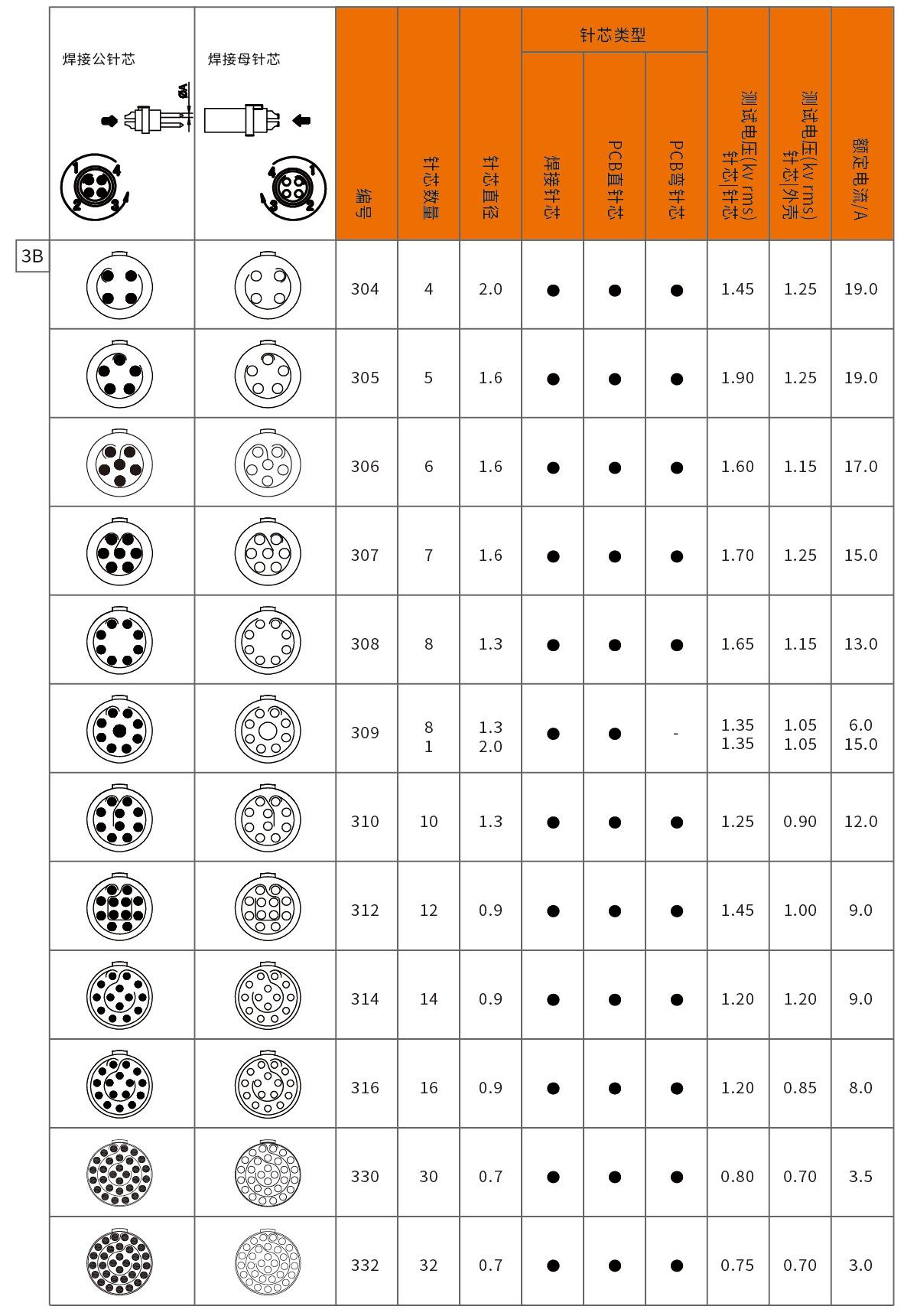

| Pin Count | 4, 5, 6, 7, 8, 10, 12, 14, 16, 30, 32 |
| Rated Current (A) | 3.0~19.0 |
