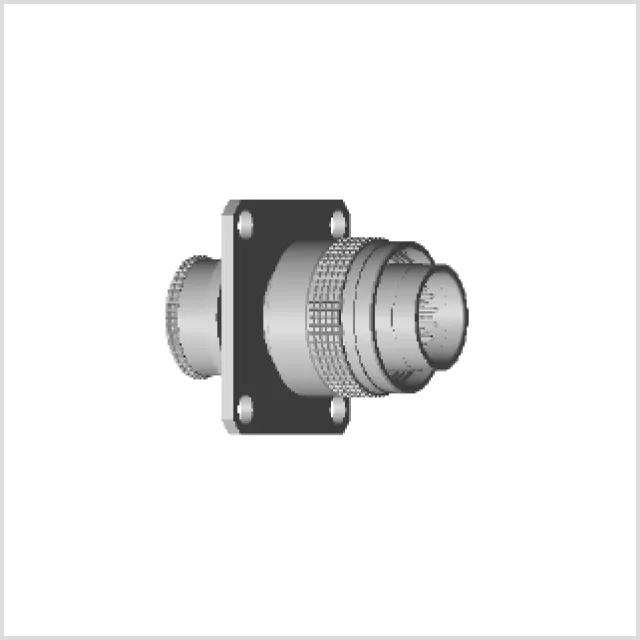

FXN Series Connectors
FXN series connectors are high-performance electrical connectors designed for reliable signal transmission in harsh environments.
Save to Favorites
Overview
Specifications

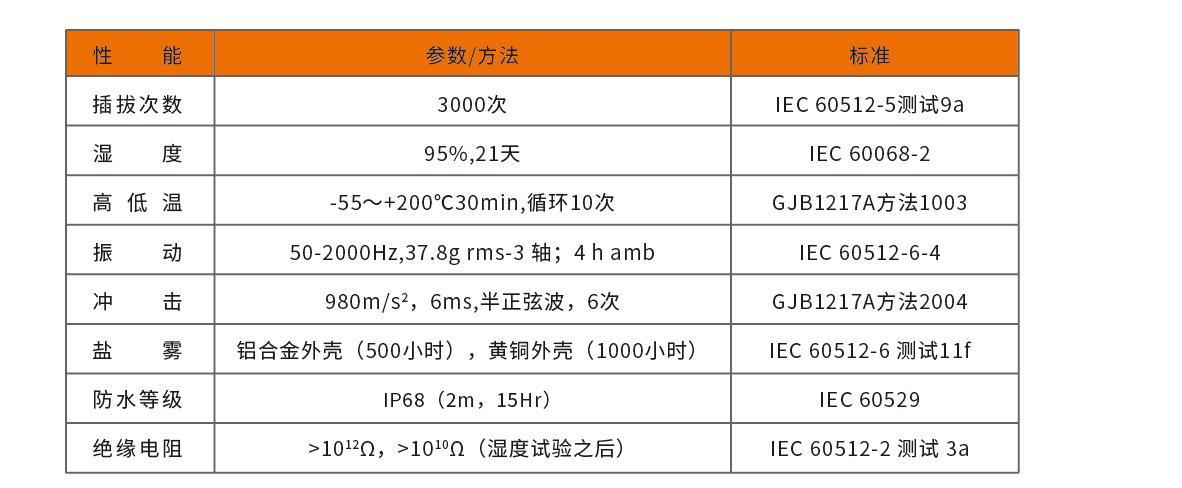

| Parameter | Value |
|---|---|
| Insertion Cycles | 3000次 |
| Humidity | 95%,21天 |
| High and Low Temperature | -55~+200°C30min,循环10次 |
| Vibration | 50-2000Hz,37.8g rms-3轴; 4 hamb |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | 铝合金外壳(500小时),黄铜外壳(1000小时) |
| Waterproof Rating | IP68(2m,15Hr) |
| Insulation Resistance | >10¹²Ω,>10¹⁰Ω(湿度试验之后) |

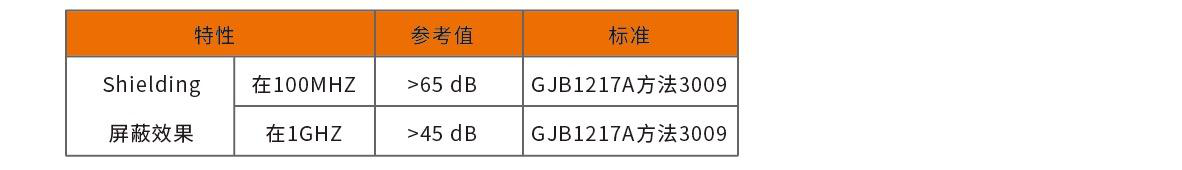

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

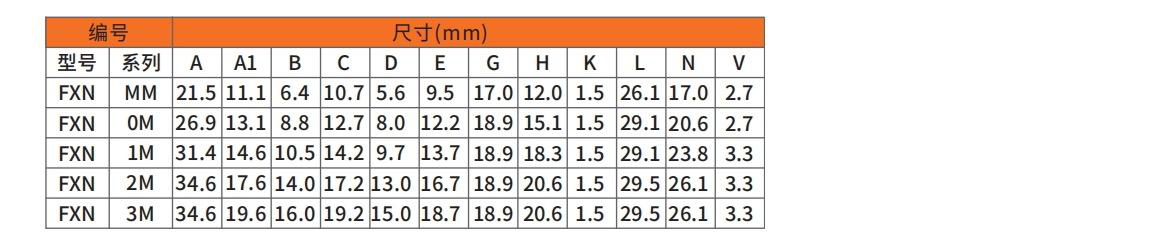

| Dimension A MM | 21.5 |
| Dimension A1 MM | 11.1 |
| Dimension B MM | 6.4 |
| Dimension C MM | 10.7 |
| Dimension D MM | 5.6 |
| Dimension E MM | 9.5 |
| Dimension G MM | 17.0 |
| Dimension H MM | 12.0 |
| Dimension K MM | 15.1 |
| Dimension L MM | 26.1 |
| Dimension N MM | 17.0 |
| Dimension V MM | 2.7 |
| Dimension A 0M | 26.9 |
| Dimension A1 0M | 13.1 |
| Dimension B 0M | 8.8 |
| Dimension C 0M | 12.7 |
| Dimension D 0M | 8.0 |
| Dimension E 0M | 12.2 |
| Dimension G 0M | 18.9 |
| Dimension H 0M | 15.1 |
| Dimension K 0M | 20.6 |
| Dimension L 0M | 29.1 |
| Dimension N 0M | 20.6 |
| Dimension V 0M | 2.7 |
| Dimension A 1M | 31.4 |
| Dimension A1 1M | 14.6 |
| Dimension B 1M | 10.5 |
| Dimension C 1M | 14.2 |
| Dimension D 1M | 9.7 |
| Dimension E 1M | 13.7 |
| Dimension G 1M | 18.9 |
| Dimension H 1M | 18.3 |
| Dimension K 1M | 23.8 |
| Dimension L 1M | 29.1 |
| Dimension N 1M | 23.8 |
| Dimension V 1M | 3.3 |
| Dimension A 2M | 34.6 |
| Dimension A1 2M | 17.6 |
| Dimension B 2M | 14.0 |
| Dimension C 2M | 17.2 |
| Dimension D 2M | 13.0 |
| Dimension E 2M | 16.7 |
| Dimension G 2M | 18.9 |
| Dimension H 2M | 20.6 |
| Dimension K 2M | 26.1 |
| Dimension L 2M | 29.5 |
| Dimension N 2M | 26.1 |
| Dimension V 2M | 3.3 |
| Dimension A 3M | 34.6 |
| Dimension A1 3M | 19.6 |
| Dimension B 3M | 15.0 |
| Dimension C 3M | 19.2 |
| Dimension D 3M | 15.0 |
| Dimension E 3M | 18.7 |
| Dimension G 3M | 18.9 |
| Dimension H 3M | 20.6 |
| Dimension K 3M | 26.1 |
| Dimension L 3M | 29.5 |
| Dimension N 3M | 26.1 |
| Dimension V 3M | 3.3 |
