Circular Connector
This circular connector is designed for high-performance applications, offering excellent durability, shielding, and adaptability to various environmental conditions.
Save to Favorites
Overview
Specifications

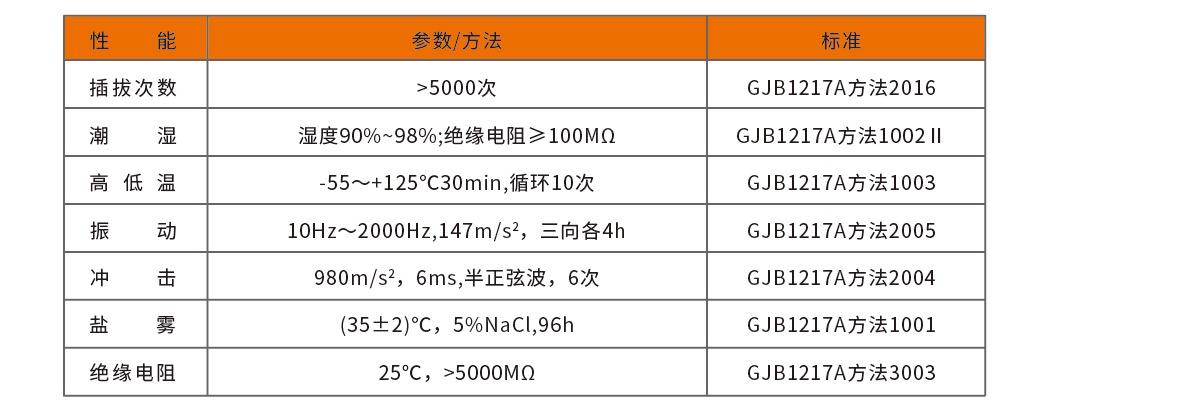

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C,30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,＞5000MΩ |

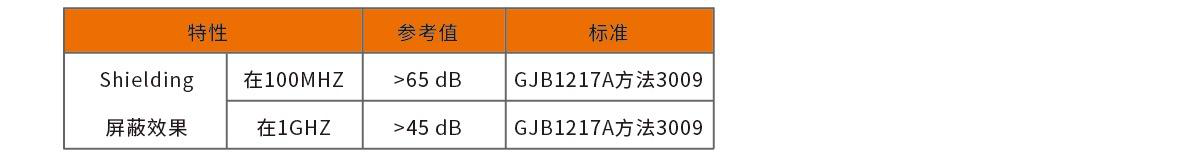

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

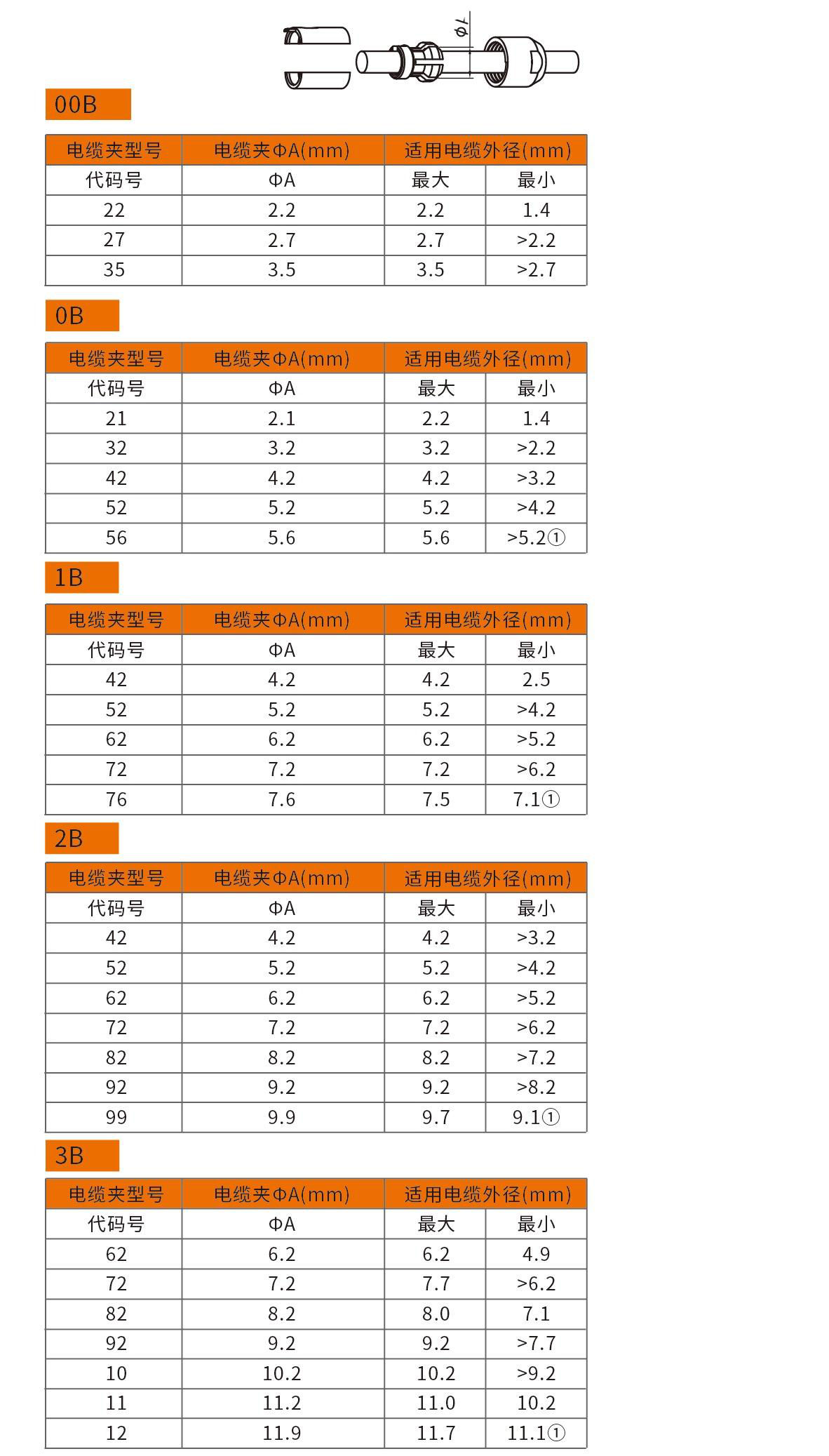

| Cable Clamp ΦA(mm) 00B | 2.2,2.7,3.5 |
| Applicable Cable Outer Diameter (mm) 00B | 最大2.2,最小1.4;最大2.7,最小＞2.2;最大3.5,最小＞2.7 |
| Cable Clamp ΦA(mm) 0B | 2.1,4.2,5.2,5.6 |
| Applicable Cable Outer Diameter (mm) 0B | 最大2.2,最小1.4;最大4.2,最小＞3.2;最大5.2,最小＞4.2;最大5.6,最小＞5.2 |
| Cable Clamp ΦA(mm) 1B | 4.2,5.2,6.2,7.2,7.6 |
| Applicable Cable Outer Diameter (mm) 1B | 最大4.2,最小2.5;最大5.2,最小＞4.2;最大6.2,最小＞5.2;最大7.2,最小＞6.2;最大7.5,最小7.1 |
| Cable Clamp ΦA(mm) 2B | 4.2,5.2,6.2,7.2,8.2,9.2,9.9 |
| Applicable Cable Outer Diameter (mm) 2B | 最大4.2,最小＞3.2;最大5.2,最小＞4.2;最大6.2,最小＞5.2;最大7.2,最小＞6.2;最大8.2,最小＞7.1;最大9.2,最小＞8.2;最大9.7,最小9.1 |
| Cable Clamp ΦA(mm) 3B | 6.2,7.2,8.2,9.2,10.2,11.2,11.9 |
| Applicable Cable Outer Diameter (mm) 3B | 最大6.2,最小4.9;最大7.7,最小＞6.2;最大8.0,最小＞7.1;最大9.2,最小＞7.7;最大10.2,最小＞9.2;最大11.2,最小＞10.0;最大11.7,最小11.1 |

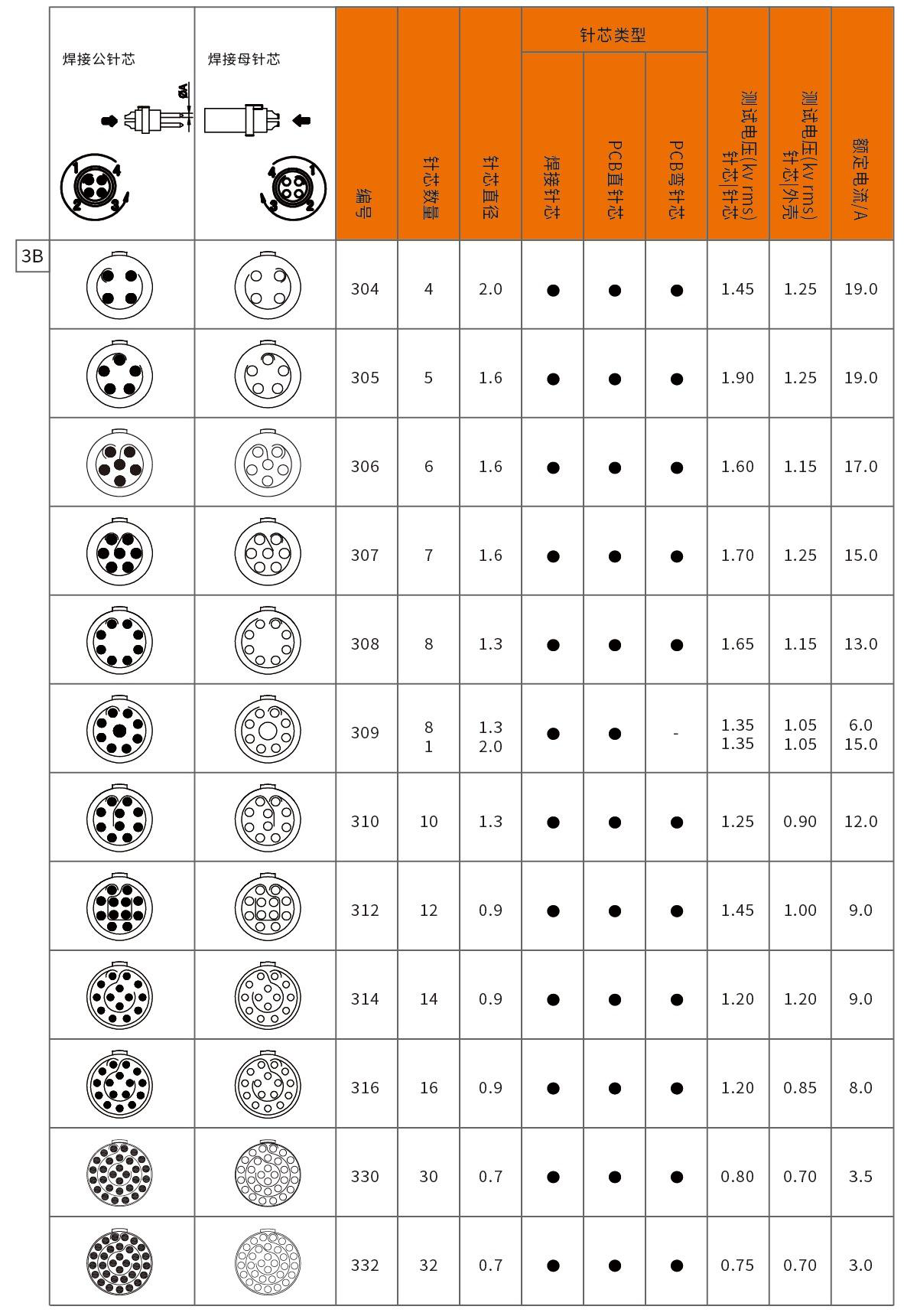

| Pin Type 3B | 焊接公针芯,焊接母针芯 |
| Rated Current (A) 3B | 19.0,19.0,17.0,15.0,13.0,6.0,15.0,12.0,9.0,8.0,3.5,3.0 |
