PHG Series Circular Connectors

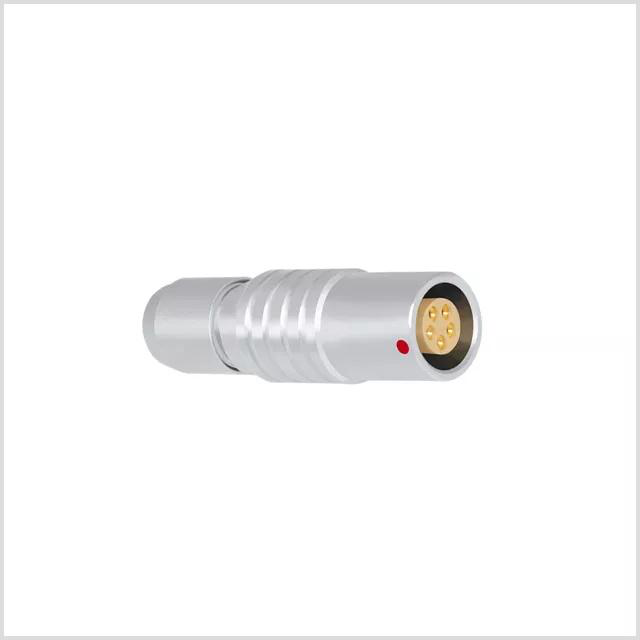

PHG series circular connectors are high-performance connectors designed for reliable electrical connections in various applications. They feature robust construction, multiple pin configurations, and excellent shielding performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

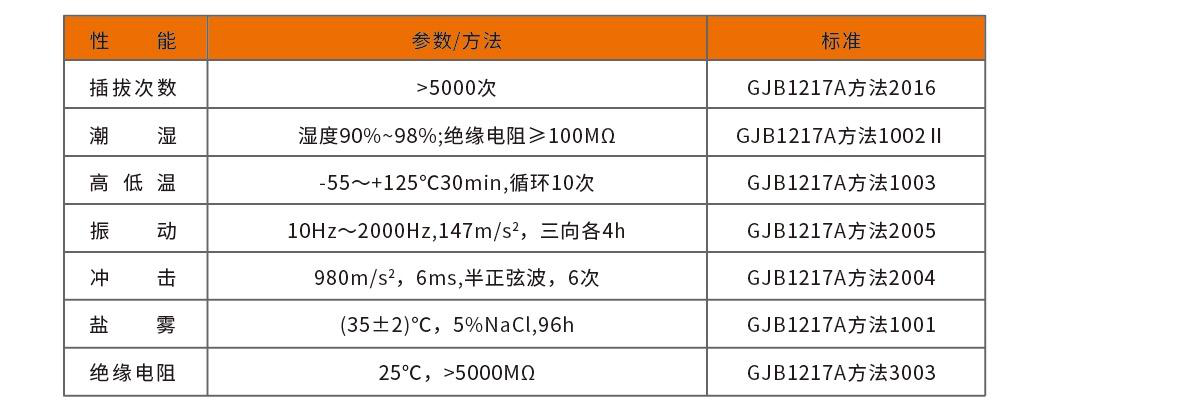

| Insertion Cycles | >5000次 |
| Humidity Resistance | 湿度90%-98%;绝缘电阻≥100MΩ |
| High and Low Temperature Resistance | -55~125°C30min,循环10次 |
| Vibration Resistance | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock Resistance | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray Resistance | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,>5000MΩ |

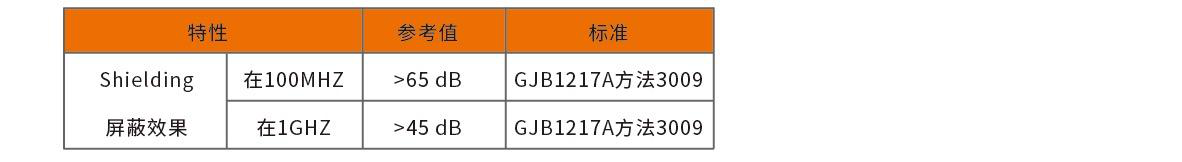

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

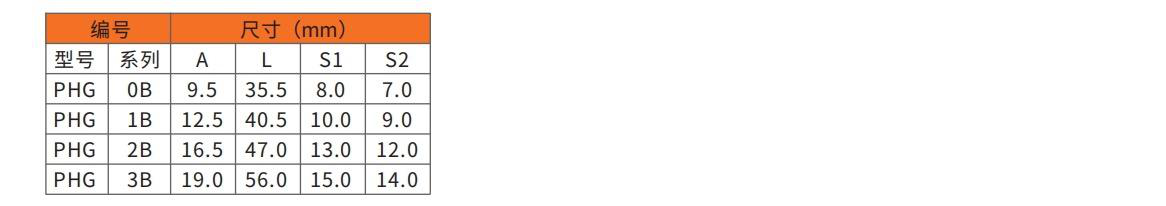

| Dimension A (mm) PHG 0B | 9.5 |
| Dimension L (mm) PHG 0B | 35.5 |
| Dimension S1 (mm) PHG 0B | 8.0 |
| Dimension S2 (mm) PHG 0B | 7.0 |
| Dimension A (mm) PHG 1B | 12.5 |
| Dimension L (mm) PHG 1B | 40.5 |
| Dimension S1 (mm) PHG 1B | 10.0 |
| Dimension S2 (mm) PHG 1B | 9.0 |
| Dimension A (mm) PHG 2B | 16.5 |
| Dimension L (mm) PHG 2B | 47.0 |
| Dimension S1 (mm) PHG 2B | 13.0 |
| Dimension S2 (mm) PHG 2B | 12.0 |
| Dimension A (mm) PHG 3B | 19.0 |
| Dimension L (mm) PHG 3B | 56.0 |
| Dimension S1 (mm) PHG 3B | 15.0 |
| Dimension S2 (mm) PHG 3B | 14.0 |

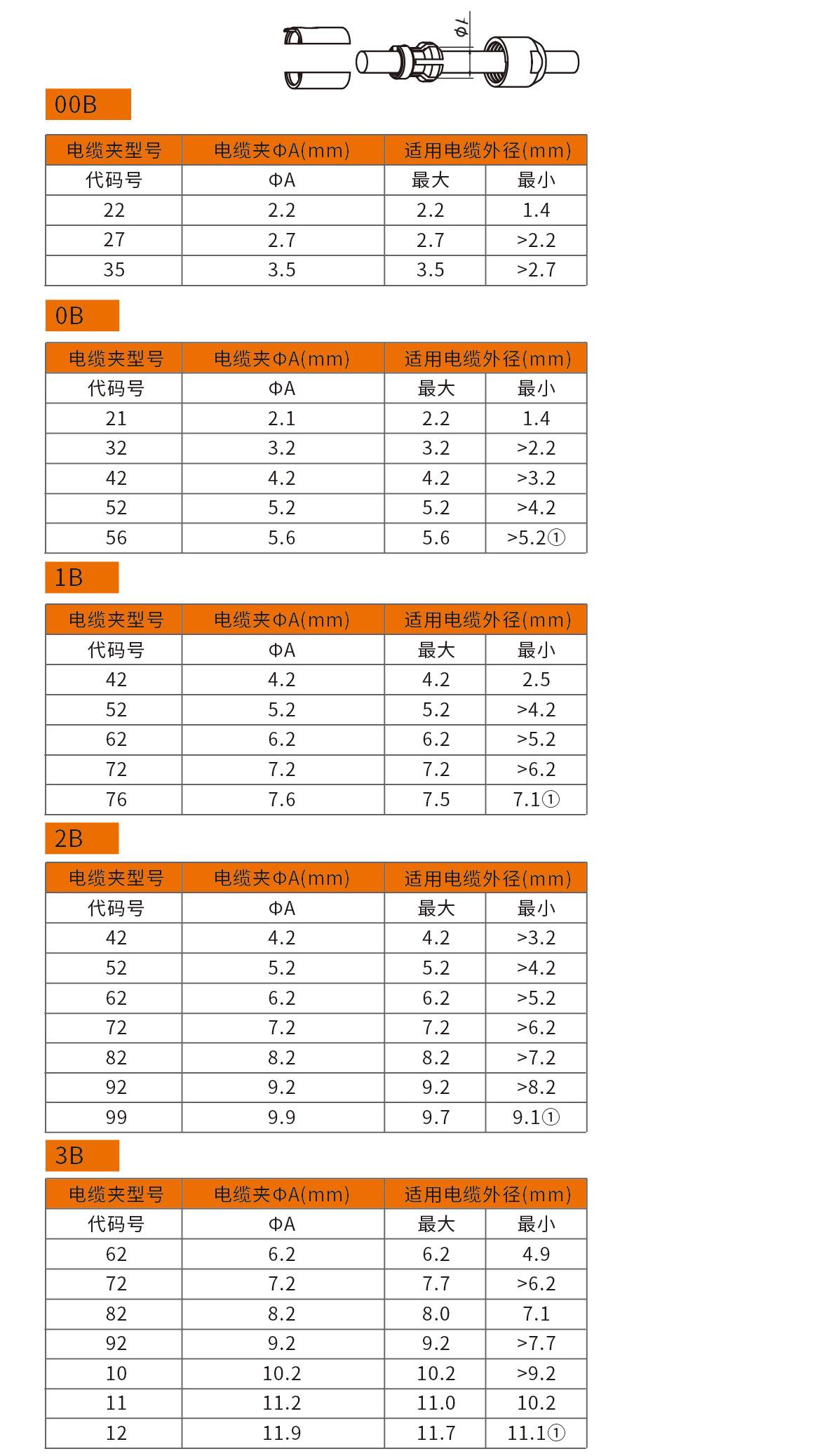

| Cable Clamp Diameter ΦA (mm) 00B | 2.2,2.7,3.5 |
| Applicable Cable Outer Diameter (mm) 00B | 2.2,>2.2,>2.7 |
| Cable Clamp Diameter ΦA (mm) 0B | 2.1,4.2,5.2,5.6 |
| Applicable Cable Outer Diameter (mm) 0B | 2.2,>3.2,>4.2,>5.2 |
| Cable Clamp Diameter ΦA (mm) 1B | 4.2,5.2,6.2,7.2,7.6 |
| Applicable Cable Outer Diameter (mm) 1B | 2.5,>4.2,>5.2,>6.2,7.1 |
| Cable Clamp Diameter ΦA (mm) 2B | 4.2,5.2,6.2,7.2,8.2,9.2,9.9 |
| Applicable Cable Outer Diameter (mm) 2B | >3.2,>4.2,>5.2,>6.2,>7.2,>8.2,9.1 |
| Cable Clamp Diameter ΦA (mm) 3B | 6.2,7.7,8.2,9.2,10.2,11.2,11.9 |
| Applicable Cable Outer Diameter (mm) 3B | 4.9,>6.2,>7.1,>7.7,>9.2,>11.0,11.1 |

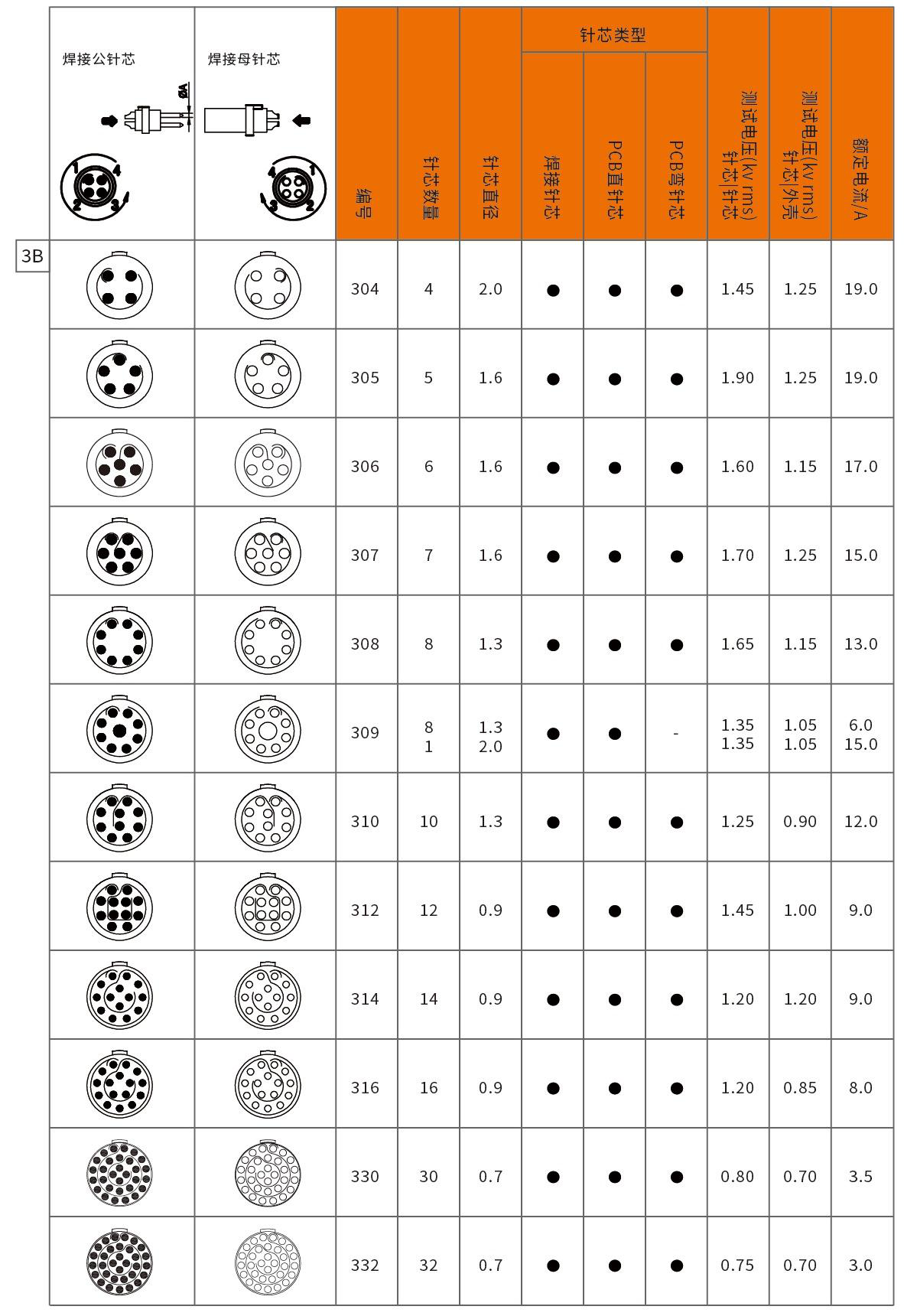

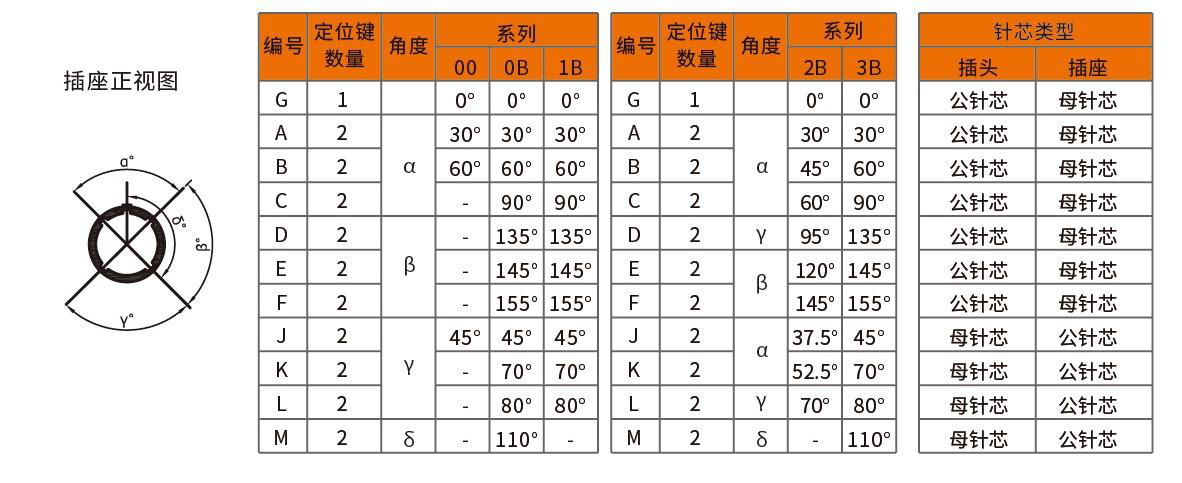

| Pin Type 3B | 304,305,306,307,308,309,310,312,314,316,330,332 |
| Pin Count 3B | 4,5,6,7,8,8+1,10,12,14,16,30,32 |
| Pin Diameter (mm) 3B | 2.0,1.6,1.3,0.9,0.7 |
| Rated Current (A) 3B | 19.0,17.0,15.0,13.0,12.0,9.0,8.0,3.5,3.0 |
