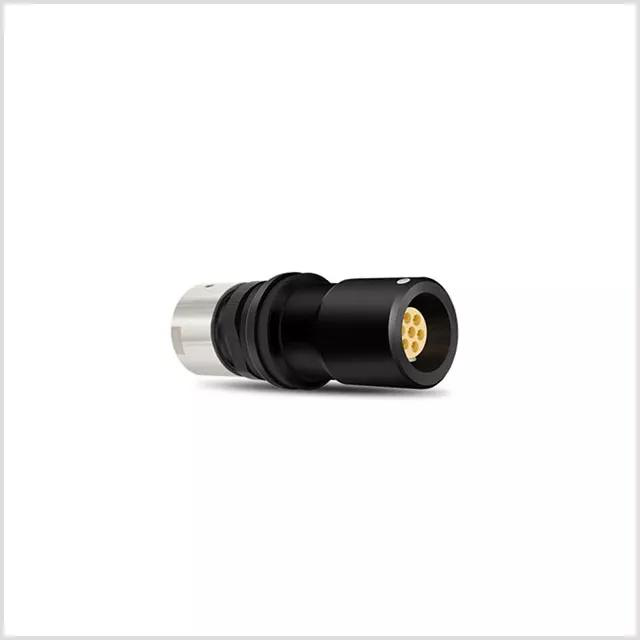

PGS Series Connectors
PGS series connectors are high-performance electrical connectors designed for reliable signal transmission in various demanding environments.
Save to Favorites
Overview
Specifications

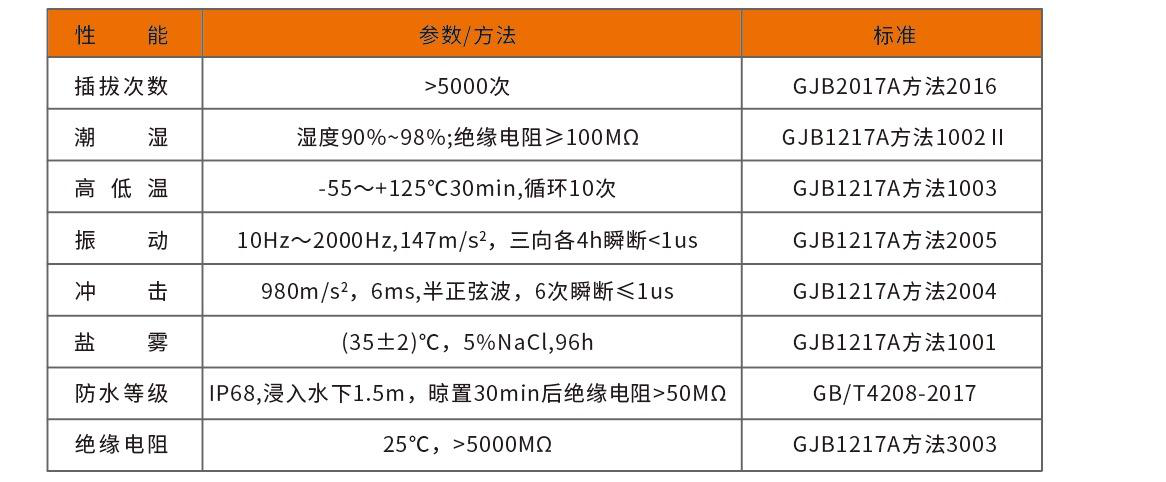

| Parameter | Value |
|---|---|
| Insertion Cycles | >5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断<1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断<1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Rating | IP68,浸入水下1.5m,喷置30min后绝缘电阻>50MΩ |
| Insulation Resistance | 25°C,>5000MΩ |

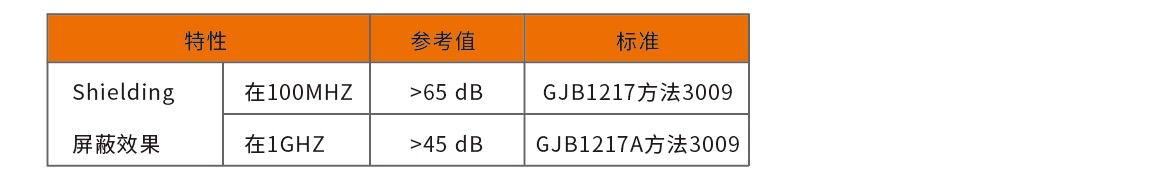

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

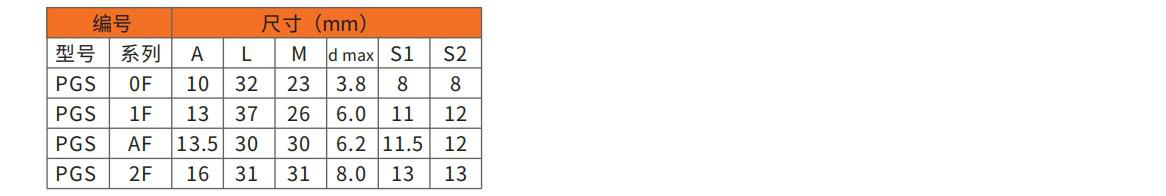

| Model 0F Size A | 10 |
| Model 0F Size L | 32 |
| Model 0F Size M | 23 |
| Model 0F Size dmax | 3.8 |
| Model 0F Size S1 | 8 |
| Model 0F Size S2 | 8 |
| Model 1F Size A | 13 |
| Model 1F Size L | 37 |
| Model 1F Size M | 26 |
| Model 1F Size dmax | 6.0 |
| Model 1F Size S1 | 11 |
| Model 1F Size S2 | 12 |
| Model AF Size A | 13.5 |
| Model AF Size L | 30 |
| Model AF Size M | 30 |
| Model AF Size dmax | 6.2 |
| Model AF Size S1 | 11.5 |
| Model AF Size S2 | 12 |
| Model 2F Size A | 16 |
| Model 2F Size L | 31 |
| Model 2F Size M | 31 |
| Model 2F Size dmax | 8.0 |
| Model 2F Size S1 | 13 |
| Model 2F Size S2 | 13 |
